SECURE CAP TO TRUCK
1. Insert the clamp bolt with large washer
through the holes in the cap sill. Slide the
clamp up from the bottom. Thread the nut
and smal washer onto the bolt.
2. Repeat in (4) locations.
3. Tighten clamps with a
Torque Wrench to
150 +/- 10 inch-lbs.
(12.5 +/- 0.8 foot-lbs.)
4. Clamps should be checked
and/or re-torqued periodically,
due to normal use.
5.Adjustasnecessaryforproper t.

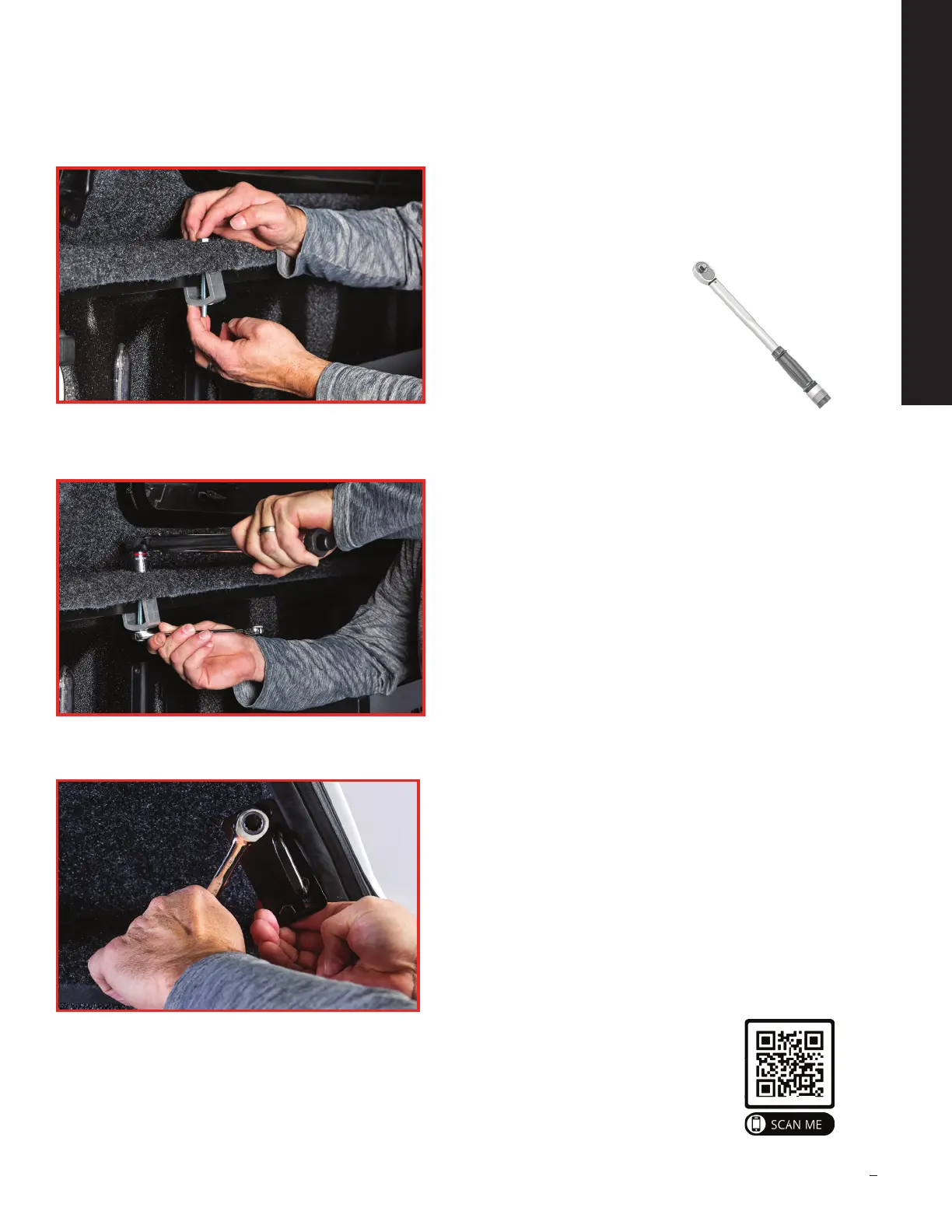

Place clamp bolt with washer through J-Bolt pockets in cap.
Align J-Clamp as shown. Insert washer and nut, then tighten bolt.
Repeat at all (4) locations.
Tightenclampstospeciedtorque
.
Adjustasnecessaryforproper t.
Adjustasnecessaryforproper t.
