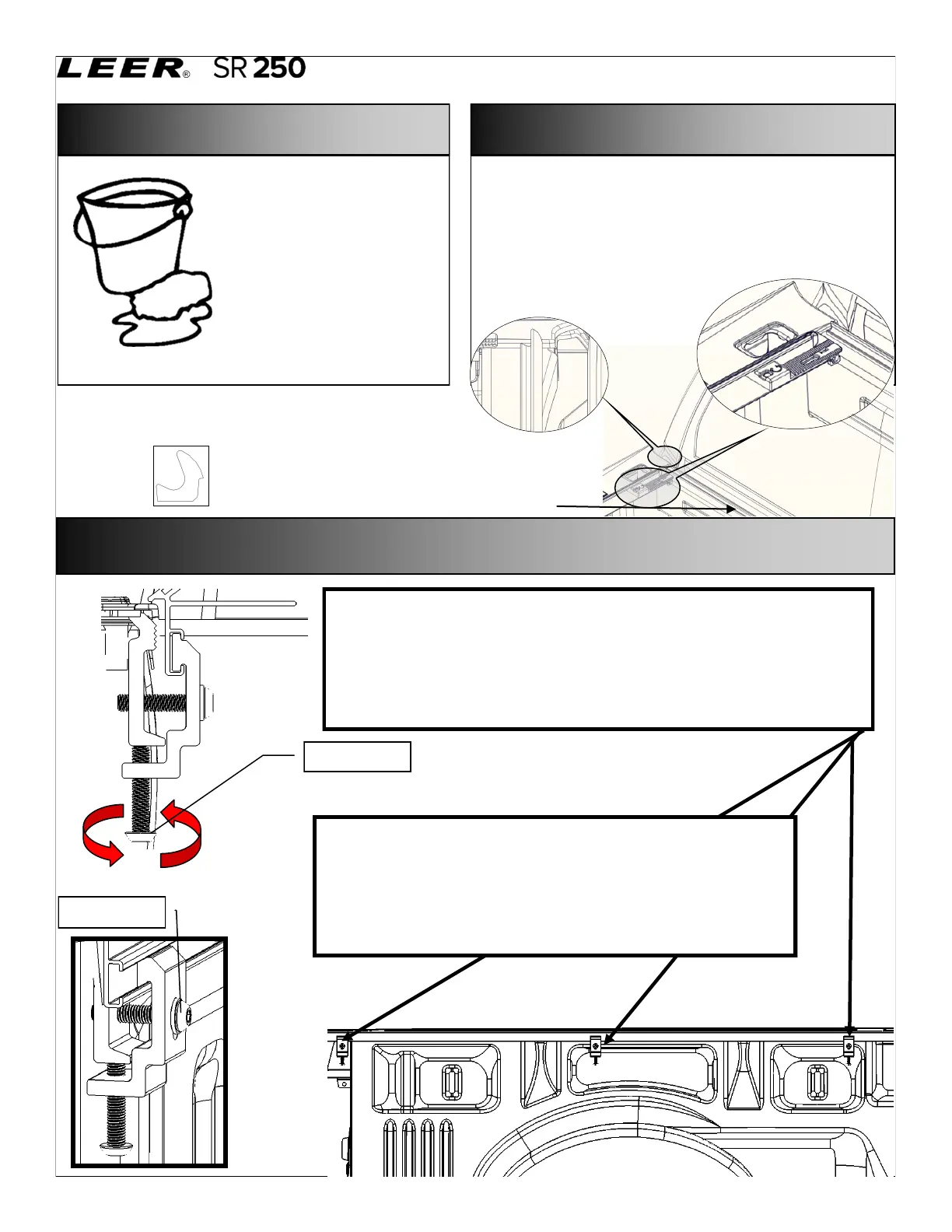

INSTALLATION INSTRUCTIONS
WASH TRUCK BOX
IF DIRTY
PLACE LEFT HAND RAIL NOTCH
FLUSH AS SHOWN. (INSTALL SAME ON RIGHT SIDE)
3
PRE-PREPARATION INSTALLING RAIL SYSTEM
INSTALLING CLAMPS
CLAMP SCREW
STEP 1:
USE THESE THREE LOCATIONS TO PLACE CLAMP IN-
SIDE BED CHANNEL RAIL AS SHOWN. TIGHTEN
LOWER SCREW BY HAND UNTIL CONTACT IS MADE.
(CLAMP KIT STYLES VARY)
STEP 2: TIGHTEN CLAMP SCREWS USING 5
MM ALLEN AS SHOWN. ONCE TIGHTENED
YOU MAY REMOVE LOWER SCREWS, RETAIN
THEM IF LATER ADJUSTMENTS ARE NEEDED.
(REPEAT STEPS FOR RIGHT HAND SIDE)
LOWER SCREW
Patented and Patent Pending see LEER.com
INSTALL BULKHEAD SEAL ON TRUCK
BULKHEAD IN LOCATION SHOWN
