24 / 68

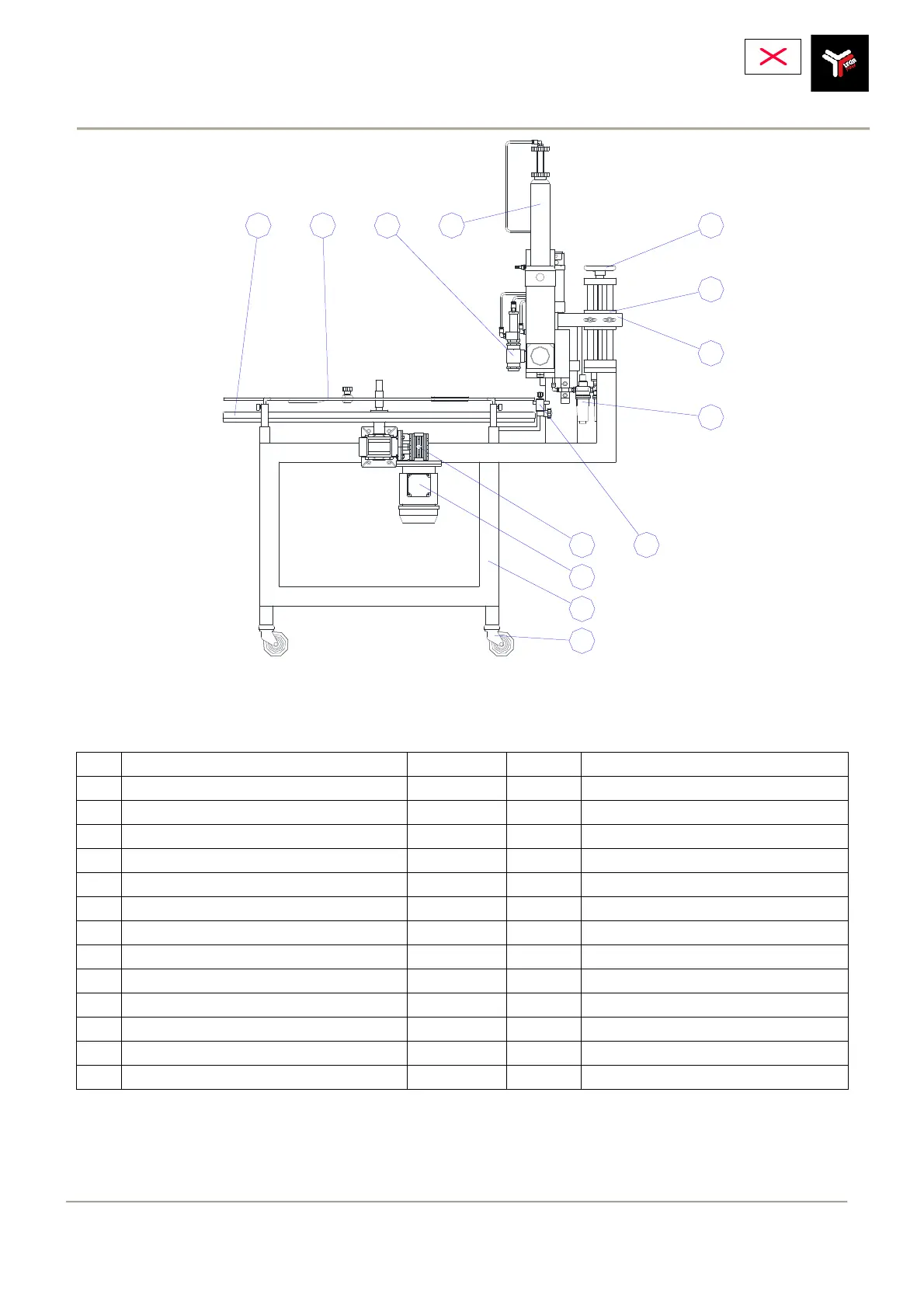

SIDE VIEW
SIDE VIEW SIDE VIEW
SIDE VIEW
FIG. 1
FIG. 1FIG. 1
FIG. 1
1 2 3 4
13
12
11
10 9
8
7
6
5
13 WHEELS 6962100 1
12 METAL STRUCTURE 42450025 1 NERI 49 B5 W180 220V
11 SINGLE-PHASE ELECTRIC MOTOR 65003049 1 BONFIGLIOLI MVF 49/30A 1:750
10 COMBINED GEARBOX 6262400 1
9 PHOTOCELL MOUNTING BRACKET 47089358 1
8 FRL GROUP 1500300 1 CAMOZZI N204 DLO 1/4"
7 PACKER MOUNTING BRACKET 6950980 1
6 LIFTING UNIT 6950900 1
5 HANDWHEEL 81150100 1
4 PACKER 6950004 1
3 DRIP-STOP NOZZLE 6950520 1
2 JAR FEED GUIDES 6962300 1
1 JAR PLATE 6962200 1
