BODY
BODYBODY
BODY-
--

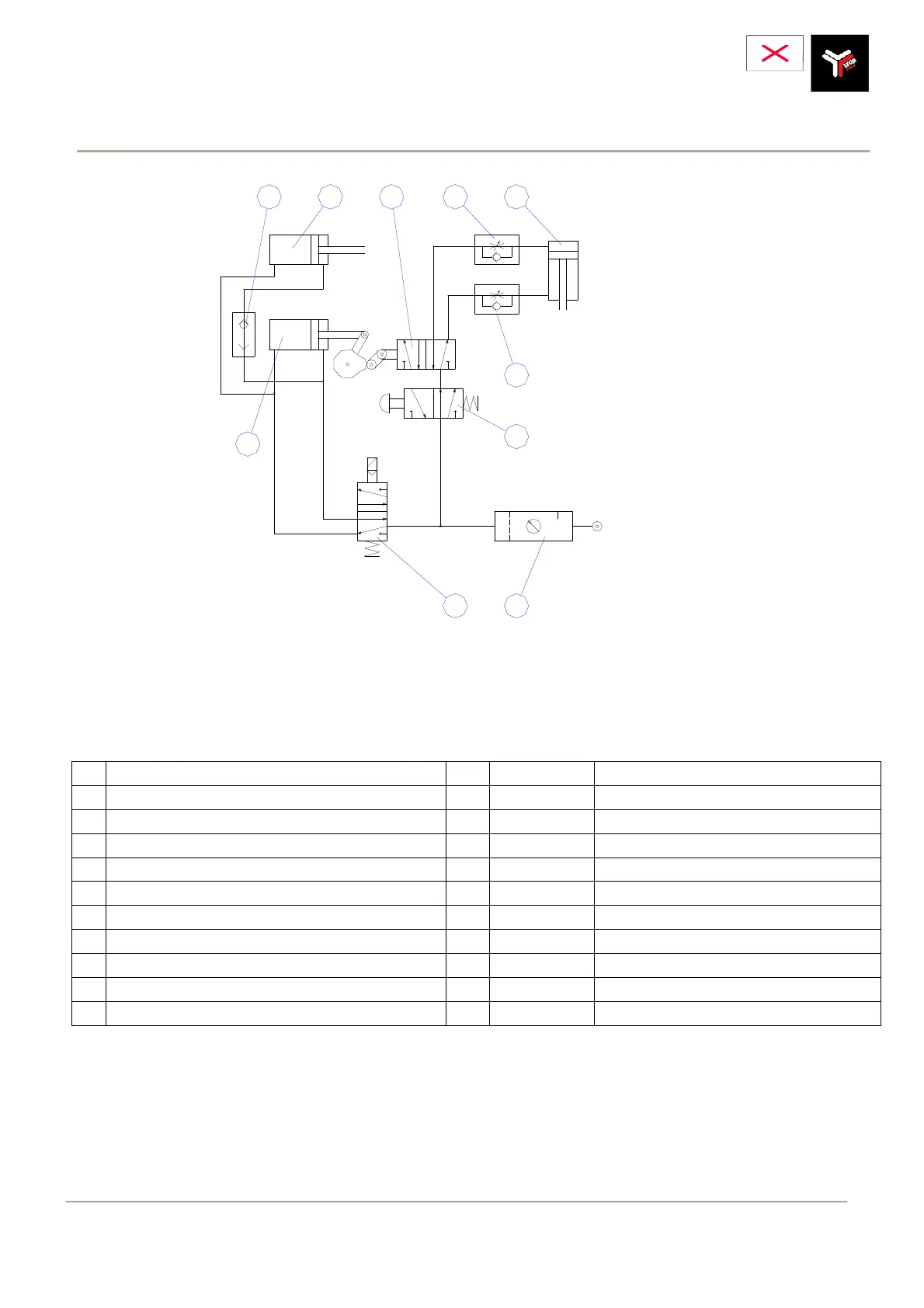

-ONLY PACKING MACHINE PNEUMATIC SYSTEM
ONLY PACKING MACHINE PNEUMATIC SYSTEMONLY PACKING MACHINE PNEUMATIC SYSTEM
ONLY PACKING MACHINE PNEUMATIC SYSTEM FIG. 6
FIG. 6FIG. 6
FIG. 6
8765
9
10
1
2
3
4
10
SHUT OFF VALVE
1 6950 130
WAIRCOM AT8
9
FLOW CONTROL VALVE (OUTLET)
1 6950 133
WAIRCOM CURG 8/5
8
DOSING CYLINDER
1 6950 108
7
FLOW CONTROL VALVE (INLET)
1 6950 133
WAIRCOM CURG 8/5
6
ROLLER/LEVER VALVE
1
6950 132 WAIRCOM CARL8R
5
MICRO-CYLINDER
1
A46020025 VESTA JRM 2025
4
QUICK DISCHARGE VALVE
1
A47180588 VSC 588 1/8’’
3
HEAT EXCHANGER CYLINDER
1
6950 135 WAIRCOM C40X100 DCB
2
START VALVE
1
A47089356 VESTA E52WI8018
1
FRL GROUP
1
1500 300 CAMOZZI N204 DLO 1/4’’
RE. DESCRIPTION
QTY
CODE BRAND NAME AND PRODUCT CODE
