How to Use (Video)
Press the appropriate INPUTEXWWRQRQWKHUHPRWH8VHźŸDUURZEXWWRQVWR
highlight the input source to view and then press ENTER.
How to Use (Audio)
Select the appropriate input from your audio equipment.
*NOTE: Refer to the User Manual from your home theater equipment for recommended audio settings.
Optional digital cable
(not included)
TV REAR PANEL
Installation
Connection to a Home
Theater System

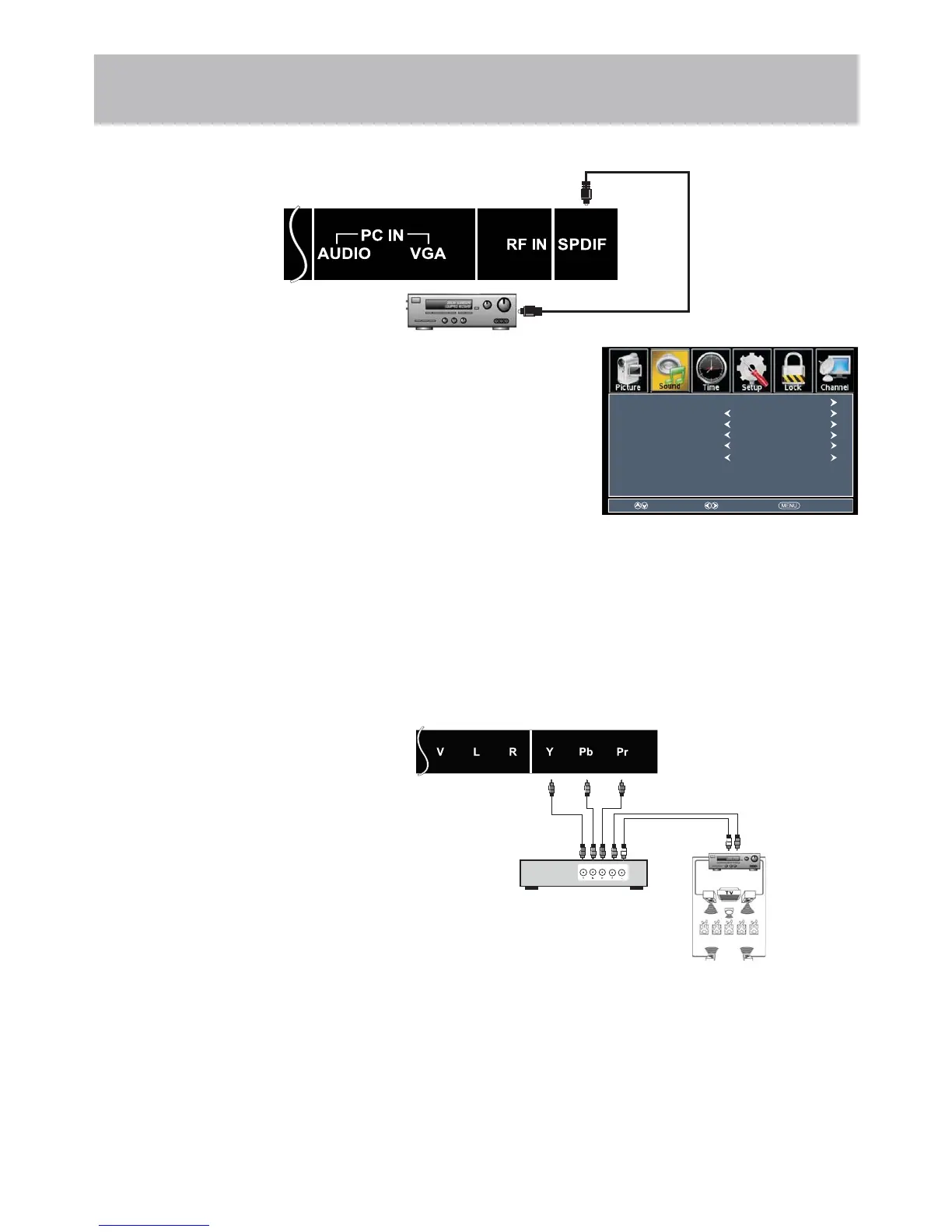

Connection to a Home Theater Audio System
)RU%(67DXGLRSHUIRUPDQFH
Connecting to a Home Theater System
Digital audio can deliver optimal 2 - channel stereo or 5.1 surround sound with
Five discrete full range channels plus a separate channel for a subwoofer.
Enjoy optimal sound reproduction from your system with a Dolby Digital
DPSOL¿HUWKDWLQFRUSRUDWHVDGLJLWDOFRD[LDOLQSXW
Connect an optional digital cable directly to the television’s SPDIF audio
output to listen through all inputs except VGA. (VGA does not support digital
audio)
How To Setup Digital Output*
 Press the LCD MENU button on the remote control.
 Press the right X arrow button to select Audio.
 Press the down T arrow button to highlight SPDIF type.Press X to select
Raw or PCM*
Select Move Exit
Equalizer Settings
MTS
Digital Audio output
Audio Language
Surround sound
STEREO
English
Off
Raw
AVL
Off
&RQQHFWLQJWRD6WHUHR5HFHLYHU$PSOLÀHU
Enjoy realistic sound from your home theater
V\VWHPWKURXJKDVWHUHRUHFHLYHUDPSOL¿HURU
Prologic sound system when connected to your
AV equipment.
NOTE: When audio cables are connected to a
VWHUHRUHFHLYHUDPSOL¿HUQRDXGLRVRXQGZLOO
be heard from the TVs built-in speakers.
Example: The diagram illustrates the connec-
tion of audio cables directly from your AV equip-
ment (like a cable box) to a stereo receiver
instead of using the audio (L / R) jacks on the
TV’s rear panel.
Front Left
Speaker
Front Right
Speaker
Center Channel
Dolby Surround
Connection Illustration
Optional cables
(not included)
Surround Left
Speaker
Surround Right
Speaker
Digital set top box, gaming
console or DVD
TV REAR PANEL
Dolby Prologic
Surround Receiver
