Legend LE2622 - Rear Panel & Pedestal Removal

11

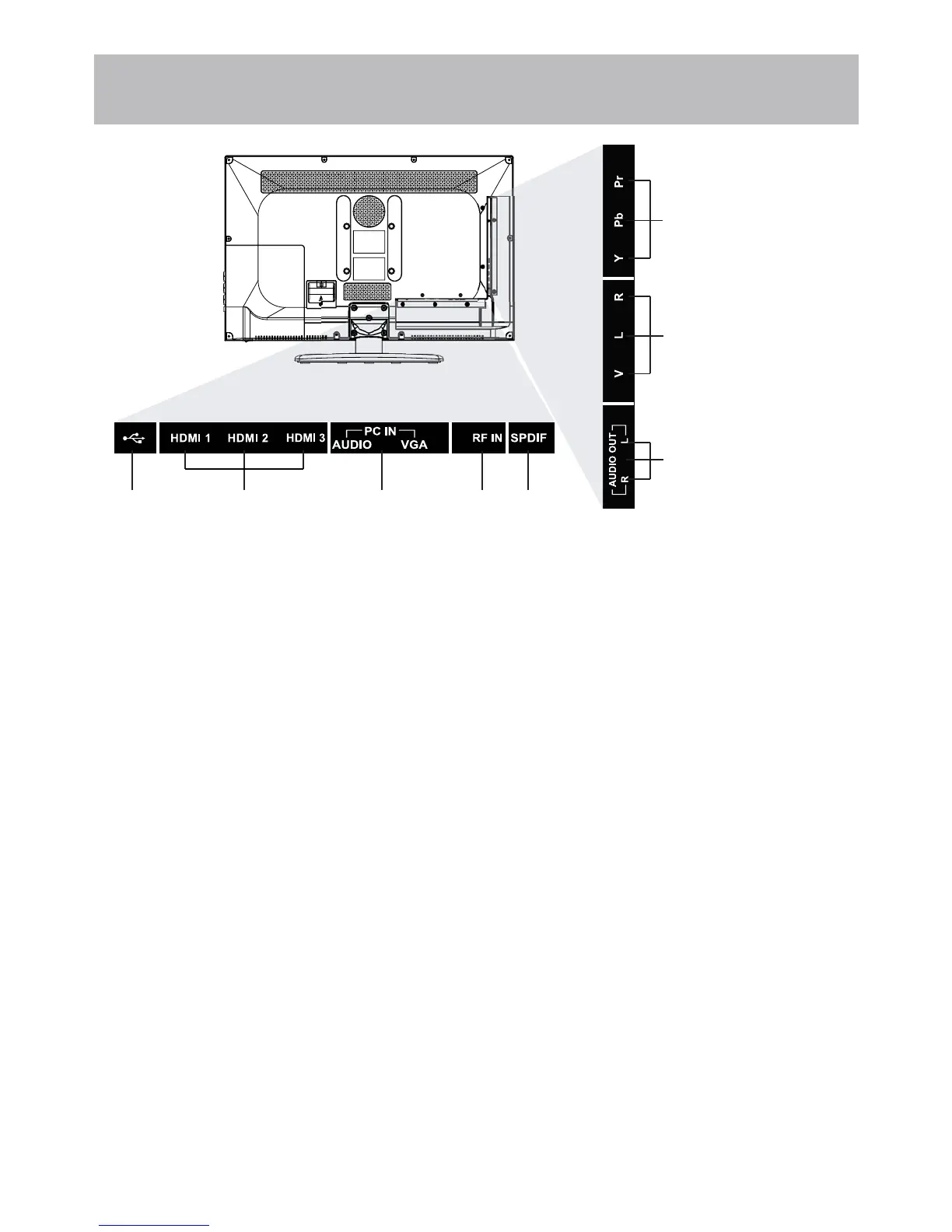

TV Overview
86%,QSXW3RUW&RQQHFWWRSRUWDEOH86%GHYLFHVXFKDV86%ÀDVKKDUGGULYH0D[VWRUDJHFDSDFLW\*%
supports MP3 and JPEG.
2. HDMI1,2,3 Input - Connects to digital AV equipment that feature HDMI connectivity. HDMI supports enhanced
KLJKGH¿QLWLRQYLGHRDQGXSWRFKDQQHOGLJLWDODXGLRDOOIURPRQHFDEOH5HFRPPHQGHGIRUEHVWSHUIRUPDQFH
HDMI cable not included.HDMI2 has ARC funtion.
3. PC IN - VGA Input - Connect an optional VGA cable (not included) from your personal computer.
3&$XGLR,QSXWPP - 3.5mm audio cable (not included) for sound.
4. RF Input - Connect an antenna or cable connection for television reception.
Note: Use an outdoor antenna, cable or satellite for best reception.
5. SPDIF - Connect an optional coaxial digital cable (not included) through a compatible amp / receiver to enjoy
superior audio sound.
6.Component Y Pb Pr Input - Connect to an AV device that features component (Y Pb Pr) video and audio output
jacks.
7. AV Input - Connect an external device to the composite VIDEO(Y) and AUDIO (L / R) out jacks found on most
video equipment.
5/$XGLR2XW- Connect to audio receiver.
Rear Panel & Pedestal Removal
12 345
6
7
8
(ARC)
