16

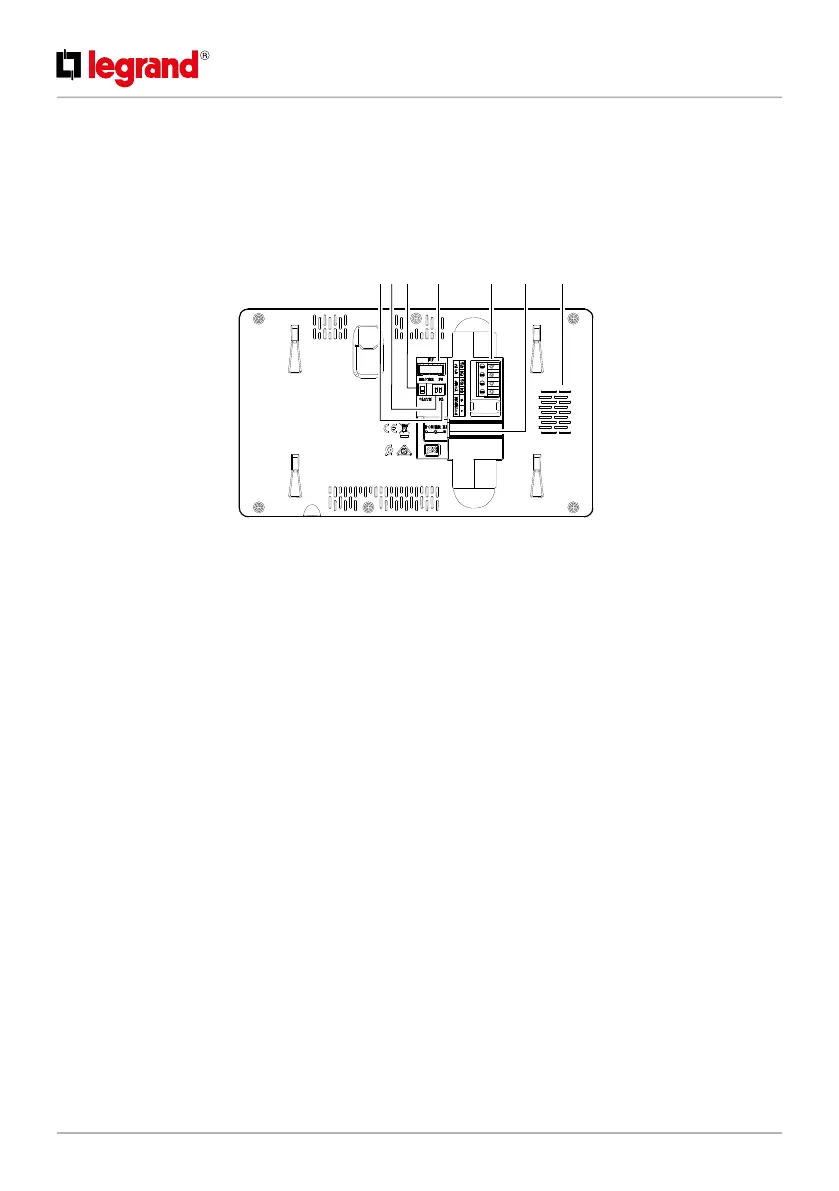

1 - Micro-interrupteur famille 1 / famille 2
2 - Non utilisé
3 - Micro-interrupteur Master / Slave
4 - Non utilisé
5 - Bornes de branchement amovibles :
D1 - D2 branchement poste externe ou poste
interne précédent
R1 - R2 branchement poste interne
supplémentaire
6 - Alimentation 30 Vdc; 30 W
7 - Haut-parleur
1 - Microschakelaar familie 1 / familie 2
2 - Niet gebruikt
3 - Microschakelaar Master / Slave
4 - Niet gebruikt
5 - Verwijderbare aansluitklemmen
D1 - D2 aansluiting buitenpost of vorige
binnenpost
R1 - R2 aansluiting extra binnenpost
6 - Voeding 30 Vdc; 30 W
7 - Luidspreker
1 - Micro switch for family 1 / family 2
2 - Not used
3 - Master / Slave micro switch
4 - Not used
5 - Removable connection clamps:
D1 - D2 connection of the entrance panel or
previous internal unit
R1 - R2 connection of the additional internal unit
6 - 30 Vdc; 30 W power supply
7 - Speaker
1 - Mikroschalter Familie 1 / Familie 2
2 - Nicht verwendet
3 - Mikroschalter Master / Slave
4 - Nicht verwendet
5 - Abnehmbare Anschlussklemmen:
D1 - D2 Anschluss Türstation oder
vorhergehende Hausstation
R1 - R2 Anschluss zusätzliche Hausstation
6 - Versorgung 30 Vdc; 30 W
7 - Lautsprecher
1 32 4 5 76
