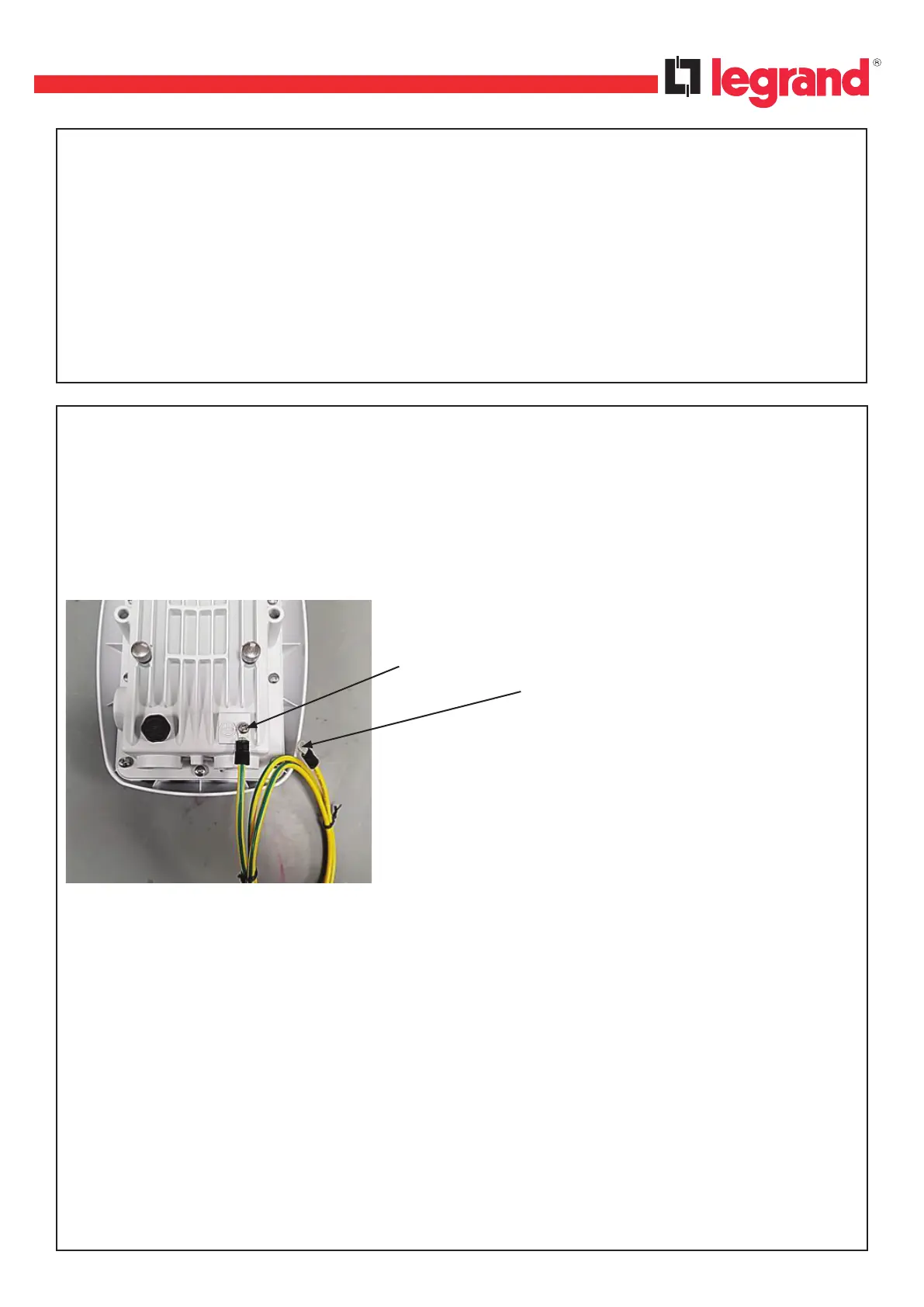

Earthing the Medium and Large Stations
The station is provided with a green/yellow cable for earthing. A pre-existing screw hole is available on the metal
enclosure of the station, marked with an earth symbol (as shown).
Earthing the Station mounting bracket
It is strongly recommended to earth the station mounting bracket to prevent surges that may damage the station.
Earthing can be completed by:
■
Pole mounting: By using the metallic strapping.
■
Wall mounting: By using M4 screws (provided). The earthing connection is done through a ring terminal. A specific
crimping tool is required to perform the operation. The earthing cable must be crimped inside this
ring terminal.
■ Isolate 240 V mains supply before maintenance or installation.
■ None of the devices should be switched On/OFF after installation.
■ Follow the LED indicator functions.
■ Make sure the antenna is pointing vertically upwards (Large station only).
■ The antenna should be placed away from the walls and surfaces in order to perform effectively (Large station only).
■ Please note that mounting bracket must be installed to achieve optimum performance.
■ Secure the stations onto the mounting bracket onto the desired wall or structure before connecting.
Galaxy Installation Manual
Things to consider before/after installation
Earthing Galaxy Stations and Accessories
Connect to the unit
Connect to installation earthing structure
To Next Page
