Ethernet extender kit (Cat. No: 659188)

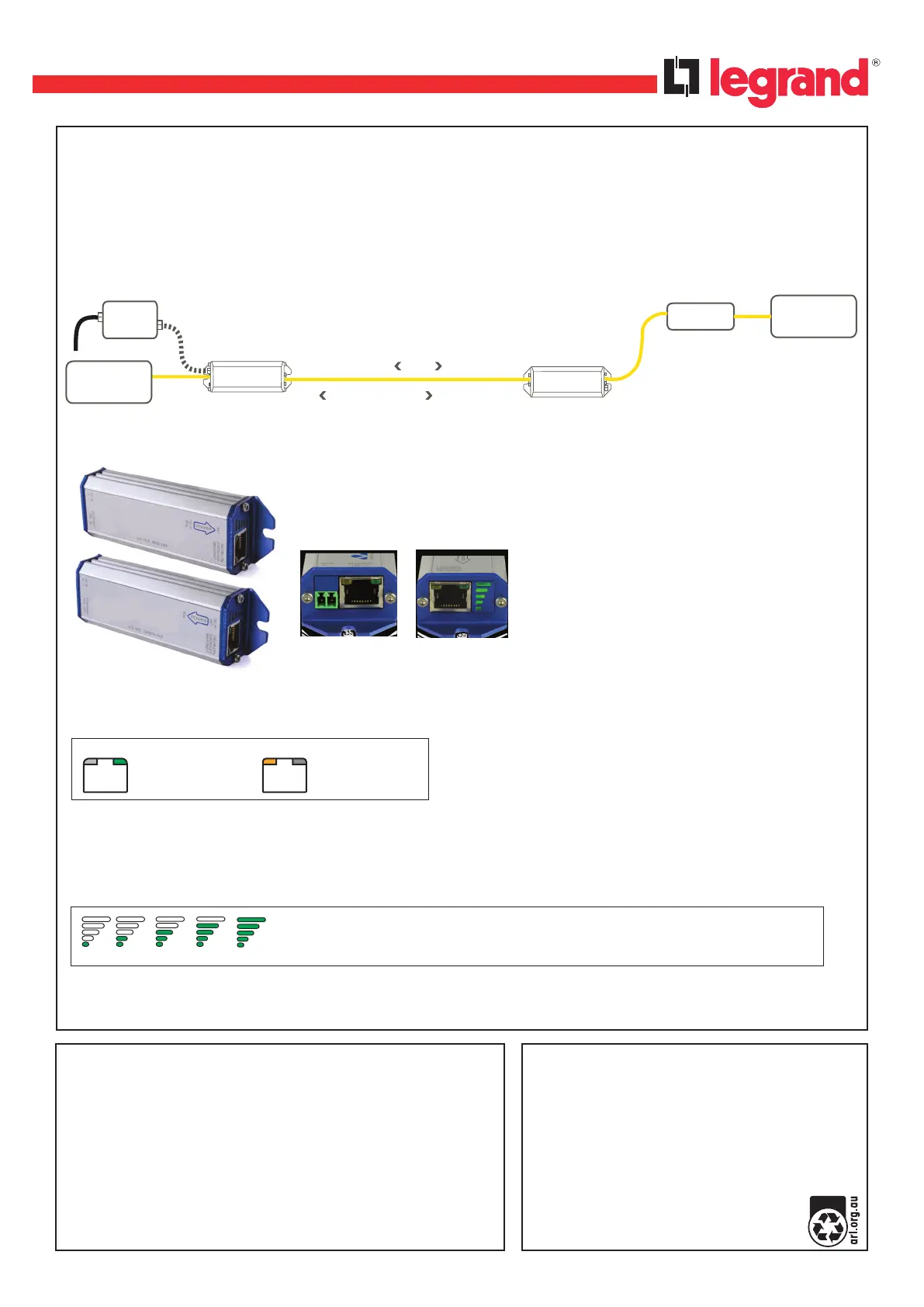

Application diagram
Galaxy Installation Manual
LE12635AB 03/2021
Warranty
Legrand Australia Pty Ltd warrants this product for a period of 5 years from the date of purchase.
These goods come with guarantees that cannot be excluded under the Australian and New Zealand
Consumer Laws. You are entitled to a replacement or a refund for a major failure and compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired
if the goods fail to be acceptable quality and the failure does not amount to a major failure.
Paper
GALAXY ACCESSORIES
LED indication
ON: Power good
ON: Link
FLASH: Activity
The green LED may blink quickly while connecting (for extremely long runs, it may take a few seconds to optimise the link).
POE Status (Green)
In normal operation, the LEDs will display the power available in flashing or steady green:
5
10
15
20 25
POE power available for station (or other POE-compliant device) in watts.
ON = POE enabled to station
FLASH = POE not enabled, no compliant device detected
Cat 6 (Cat.No 659187)
1.8 m
POE Injector
Galaxy Server
Galaxy Station
Power
Supply
The power level is displayed after the station-side unit has powered up. Available power depends on the cable length, cable
gauge,and the POE source used.
