For the Interlogix Concord 4 System, the SB2000 Automation Module (Part# 60-783-02) is
required. A DB9 to RJ45 plug-in adapter is supplied with the HA7000 Intuity Controller that will
allow a direct connection from the Intuity Controller into the SB2000.
For the Interlogix NetworX Security System, an NX-584 Automation Module is required.
Please refer to the manual that is supplied with the NX-584 Automation Module for further
instructions on setup.

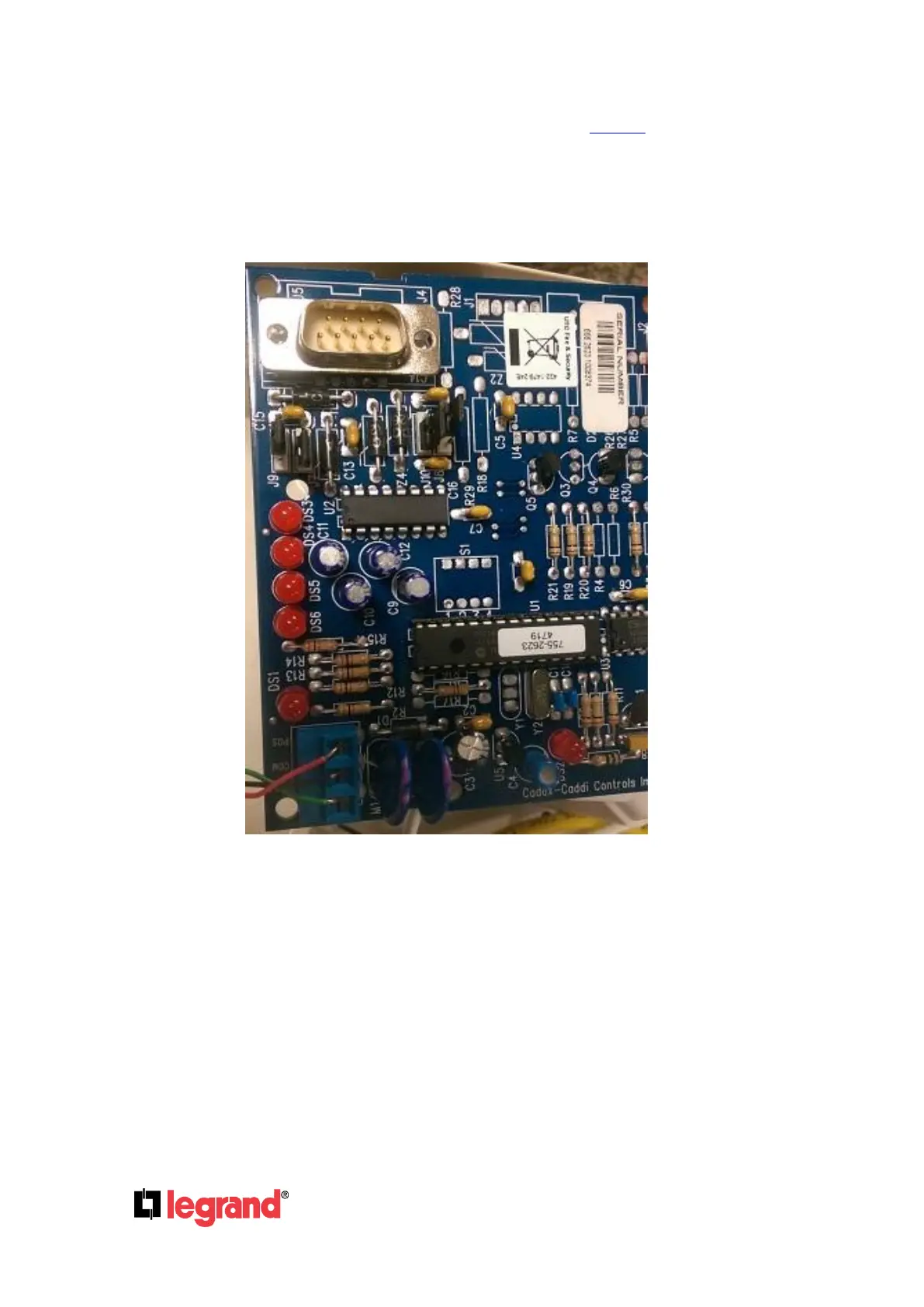

The following must be configured on the NX-584:
The Jumper positions need to be set opposite of the default on the NX-584 Automation Module:
J7 = B
J8 = A
J9 = A
J10 = B
