4. Installation
KEOR MOD 125
The default configuration has the strings of batteries in common.

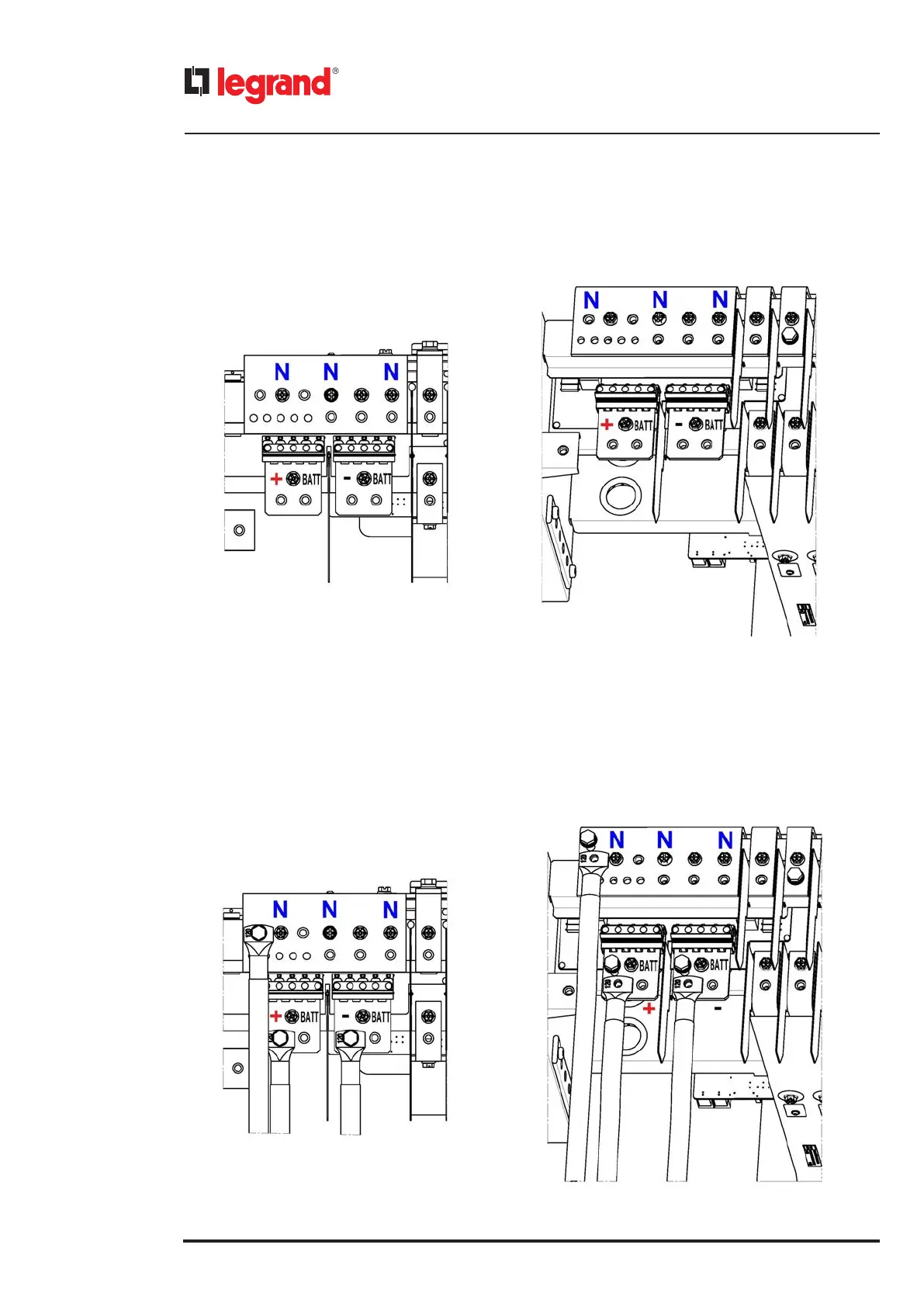

KEOR MOD 125 – battery terminals
If no change is required, follow these steps:
- crimp the positive, negative and neutral battery cables with M8 eyelets;
- connect the positive cable of the battery cabinet to the + BATT terminal using a hex M8x20 screw along with M8 flat
washer and M8 grower washer. The grower washer must always be put on top of the flat washer;
- connect the negative cable of the battery cabinet to the - BATT terminal using a hex M8x20 screw along with M8 flat
washer and M8 grower washer. The grower washer must always be put on top of the flat washer;
- connect the neutral cable of the battery cabinet to the neutral busbar using a hex M8x20 screw along with M8 flat wa-
sher and M8 grower washer. The grower washer must always be put on top of the flat washer.
KEOR MOD 125 – battery cables installation with strings of batteries in common
