4. Installation

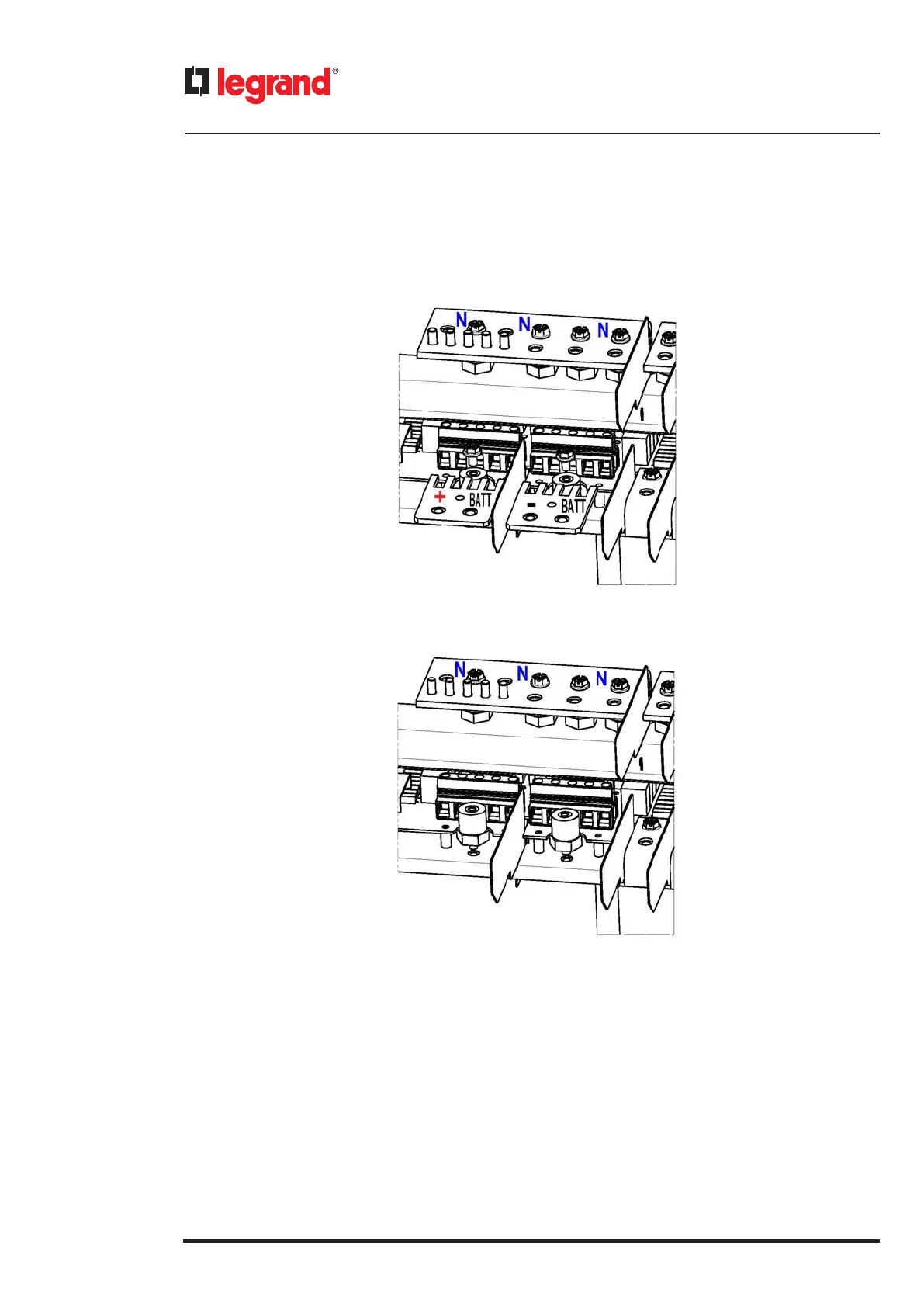

In case of installation of independent strings of batterie, follow these steps:
- remove the metal jumpers inserted in the positive and negative battery terminals.
- remove the supports for the metal jumpers.
- insert the positive battery cables of the battery cabinets in the positive battery terminal and the negative battery cables
of the battery cabinets in the negative battery terminal.
The maximum cross section accepted by the terminals is 16 mm
2
.
Connect the battery cables on the terminals according to the string:
BATT1: +1 ; -1
BATT2: +2 ; -2
BATT3: +3 ; -3
BATT4: +4 ; -4
BATT5: +5 ; -5
