4. Control panel
4.1 Synoptic area

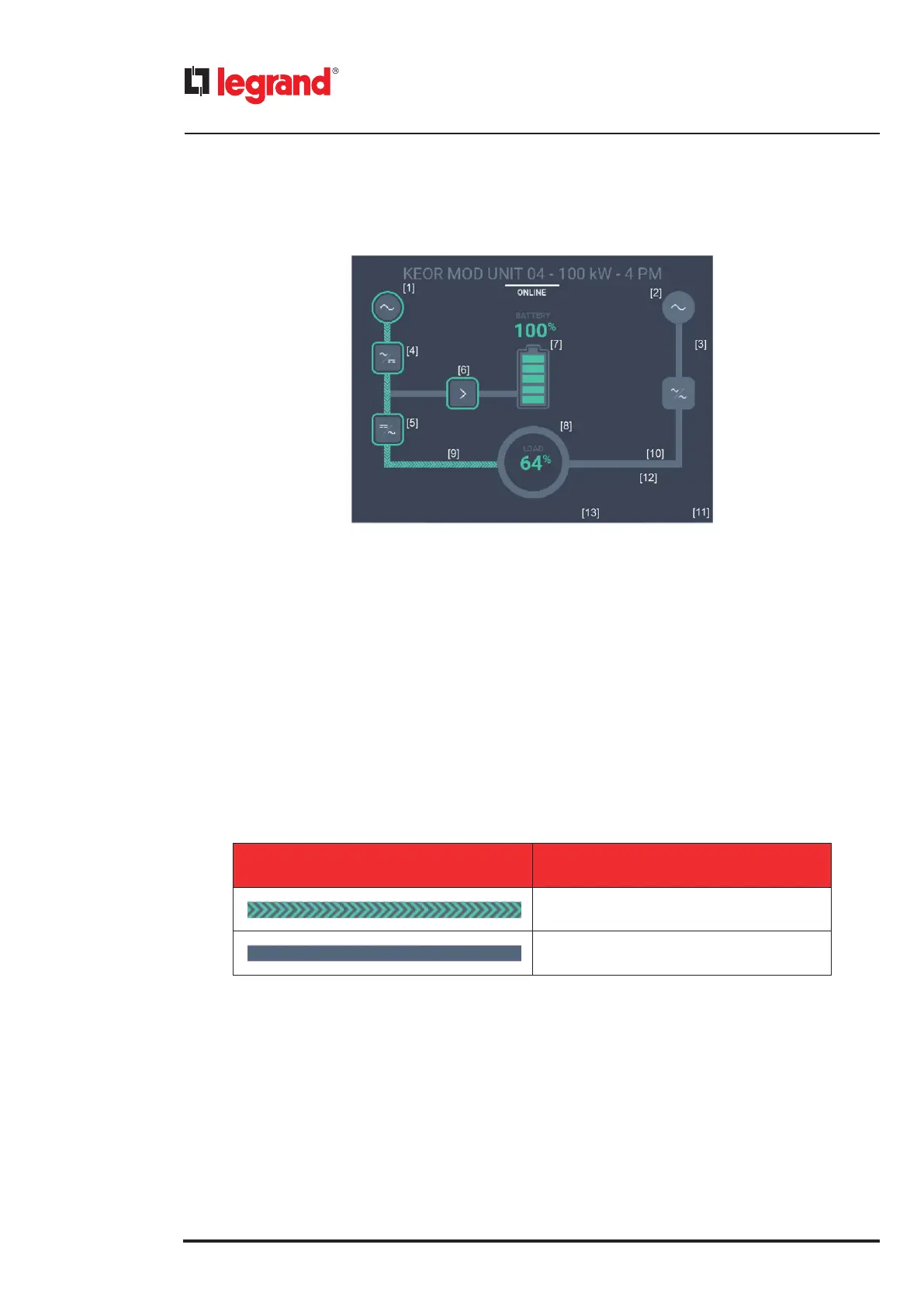

The SYNOPTIC area is strictly connected to the SYSTEM area. It shows the details of what is selected in the bottom area.
The SYNOPTIC includes the following blocks:
• [1] - [2] Input
• [3] Bypass
• [4] Rectifier
• [5] Inverter
• [6] Booster-charger
• [7] Batteries
• [8] Output
• [9] Active flow
• [10] Inactive flow
• [11] Fan icon
• [12] Mute alarm icon
• [13] Temperature icon
It is possible to see which blocks are active or not by the graphical flow indication:
DESCRIPTION
Active flow
Inactive flow
