60
UPS output can be switched o immediately by Remote Emergency Switching Device interface (ESD)
connection if desired. A remote latched switch can be used as described in above gure.
Input Function
GEN ON
If the GEN ON input is activated by Genset start relay, UPS transfers to Generator Mode,
bypass and battery charging is disabled. Generator icon appears on Energy Flow Diagram
screen. The factory default setting of Generator contact is “Normally open”.
UPS OFF
If the UPS OFF (ESD) input is set by an ESD switch, UPS stops generating the output voltage
and stops feeding the load. When the voltage on the digital input is removed, you have to
restart UPS. The factory default setting of ESD contact is “Normally open”.
Table.9

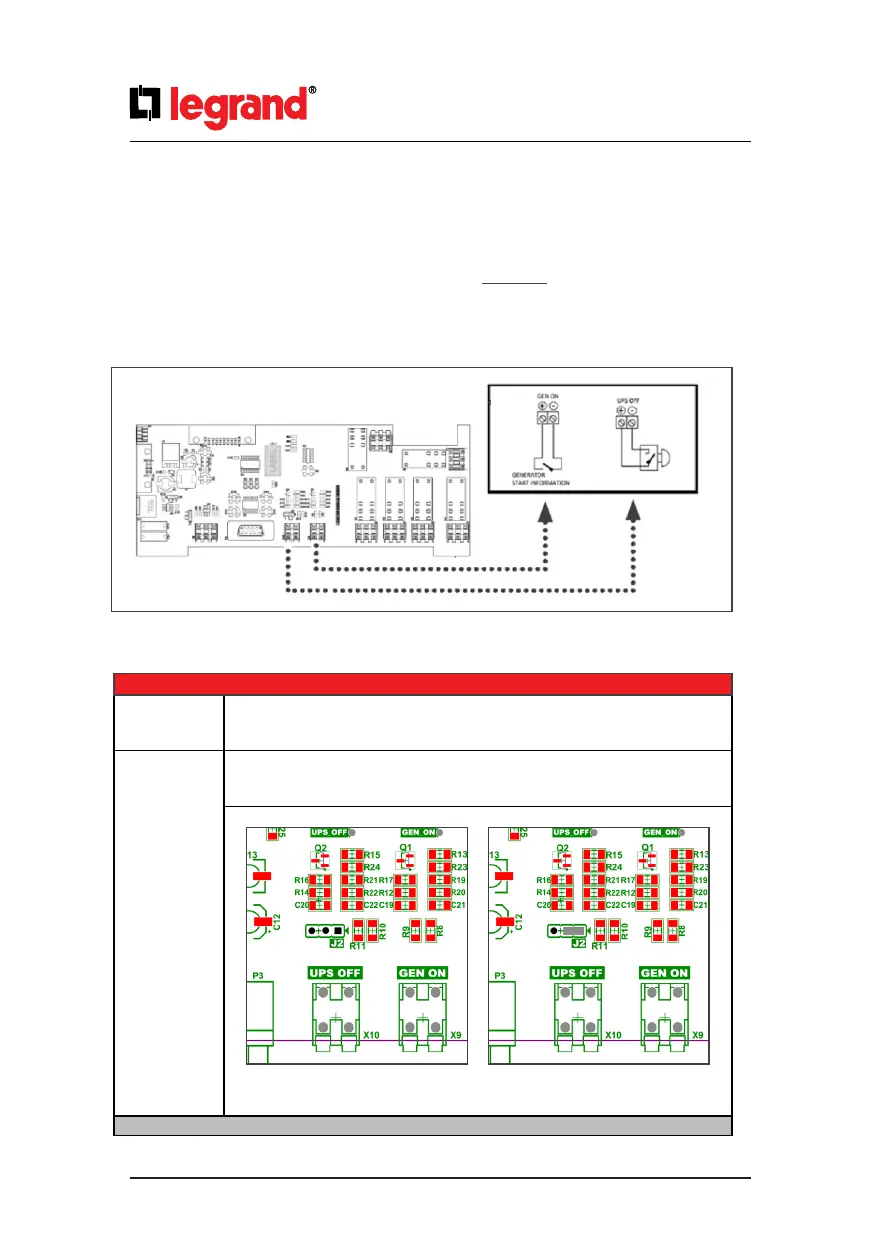

8.3. Emergency Switching Device and Generator Connections
UPS can be remotely switched o and can be congured for an input supply through genset.
For this purpose, there are two digitals inputs on the Interface card that can activate those functions.
8.2. Internal SNMP Communication
Internal SNMP card can be installed into SNMP slot placed at the front of UPS. As soon as SNMP installed,
RS232 port would be disabled.
Internal SNMP has the same features as External SNMP; refer to Section 8.1 for more information.
J2: UPS OFF contact NO conguration.
(No jumper)
J2: UPS OFF contact NC conguration.
Figure.8.3-1
To Next Page
