Safty notes
• Installation of these products should only be undertaken by a qualified electrician.
• The operational and electrical safety is only guaranteed, if the product is installed using its proper accessories, in a position as specified in the installation instructions (distribution panel).
• Any interference with the product makes the guarantee void.
• If the time switch is mounted near equipment where heat produced raises the local ambient above 55°C. Then a space should be put between
the time switch and the equipment (e.g.
1
⁄2 space module code 044 40 or 1 space module code 044 41).
Function
The MicroRex D22 is a microprocessor controlled digital time switch. Eight programs of your choice can be stored and used to control the automatic operation of your electrical equipment. Each
individual weekday can have a separate program or you can have several days operating on the same „Block“ program. To program the MicroRex D22 a „picture“ is used and when this is complete
the chosen times are stored in the microprocessor memory. The MicroRex D22 makes available 2 separate switching channels.
State of output
= On
= Off
Hand switch
Channel 1
Channel 2
Choose function
Summer- / winter
changeover
Setting the hours, minutes,
days and channels
Delete
Fixing the hours, minutes,
days, channels and
continuous switching
Programming Buttons
Actual or „On“ time
Weekday
Day number
„Off“ time
Symbol for
„Set actual time“
„Off“ days
Liquid Crystal Display
Technical data
037 88 037 90
Supply voltage: 230V 50/60Hz 120V 50/60Hz
Consumption: ca. 0,6W
Contact rating: 2 changeover contact 10A 250V~µ cos ϕ = 1
Parallel compensation: not allowed
Accuracy: ±2,5s/d
Terminal capacity: single strand multi strand
1,5 to 4 mm
2
1 to 2,5 mm
2
Program pictures: 8
Battery reserve: 100h
Storage ambient: -10°C to +60°C
Working ambient: -10°C to +55°C
●
LEXIC
™
Time switch
NT 29 18 23 00

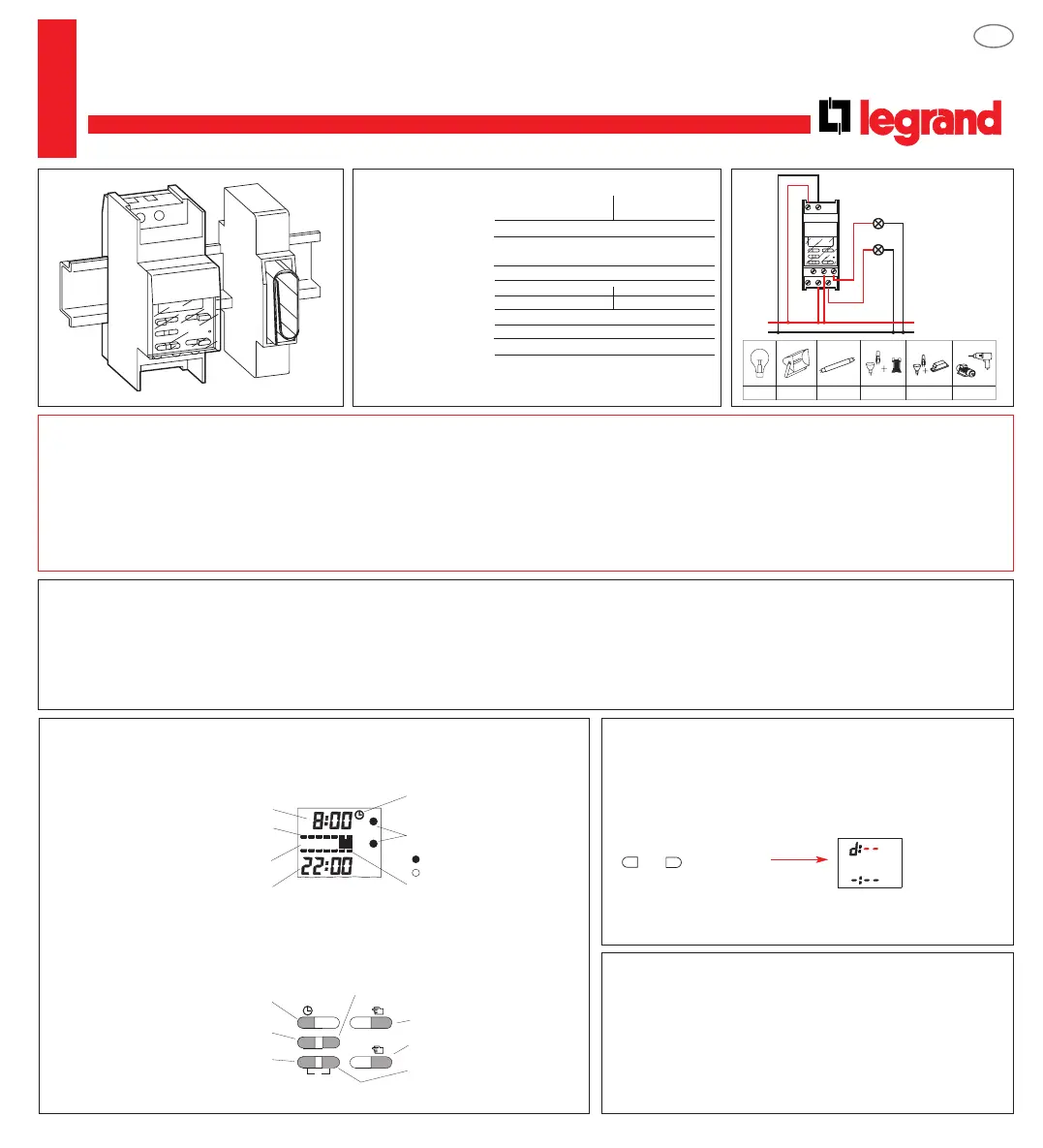

037 88, 037 90 - MicroRex D22
+
Presentation
Before any operations the complete memory must be reset.
2. Memory reset
1. Starting
This can only be done after a Reset.
Summer- / winter changeover can be made manually or automatically if set.
If manual changeover is required choose no during the date input. Automatic changeover
depends on your country / area. Choose the appropriate setting for your country / area.
3. Setting date and summer- / winter changeover
Connection
press both at
the same time
The time switch memory is completely clear.
Operating instructions
GB
