Lehle Mono Volume User Manual

12
DIR out (2).
3. Connect the VOL jack (4) to the input of your
second amp.
4. Adjust the maximum volume for your second
amp using the gain control (3).
5. If now hum or noise occurs when the pedal is in
level position, we recommend using the Lehle
P-Split II.
6. To include the Lehle P-Split II, take the plug
from the input of the second amp and connect it
to the input of the Lehle P-Split II.
7. Connect the ISO output of the Lehle P-Split II
with the input of your second amp.
8. Now press the ground switch of the Lehle
P-Split II and find out in which position you
have the least noise. In order to eliminate phase
cancellation, press the phase switch.
9. There you go!

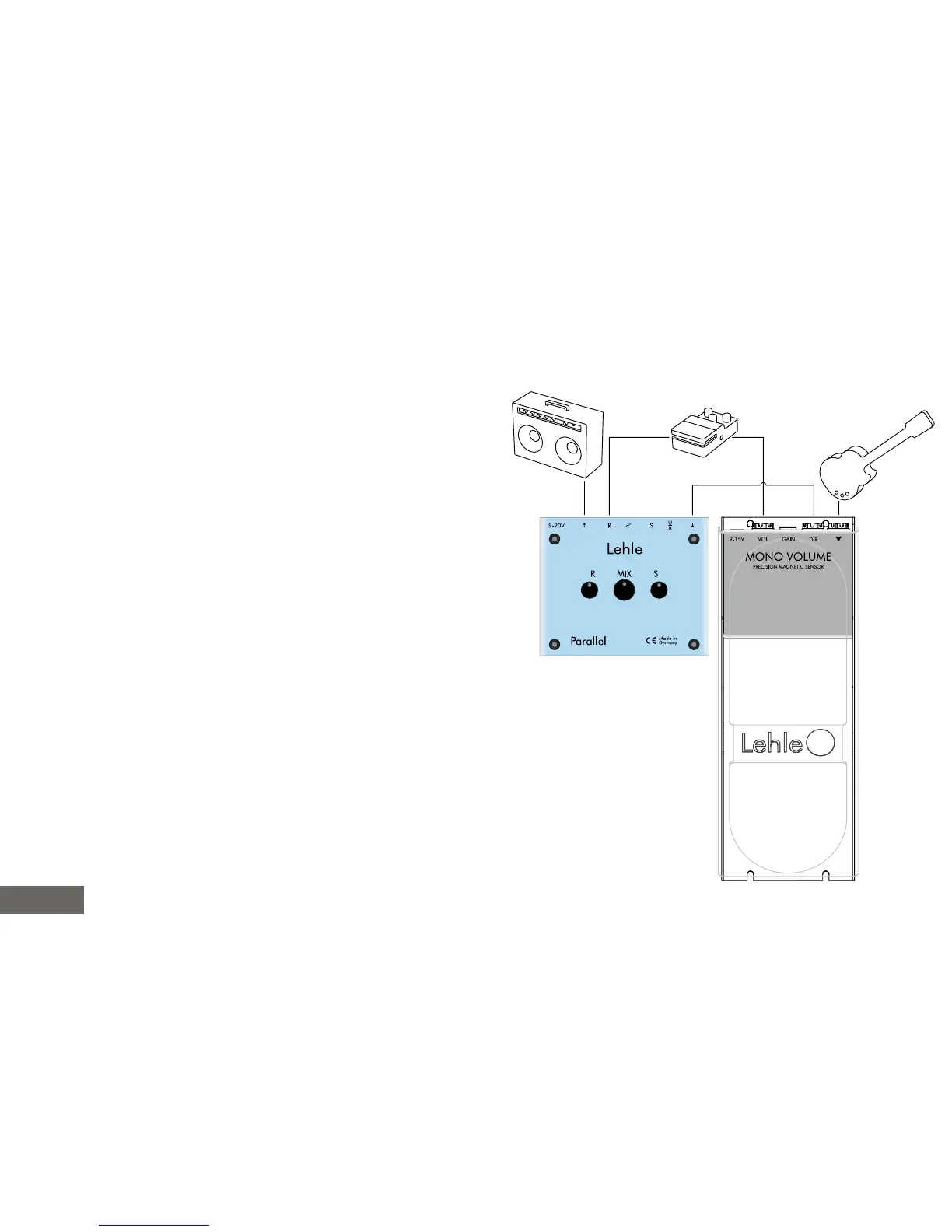

Lehle Mono Volume to blend effects

Lehle Mono Volume Specifications

General

Brand	Lehle
Model	Mono Volume
Category	Music Pedal
Language	English
