7.4.1 I/O Test
(Signal test)
With the option <I/O Test> (2) the dialog box „I/O-Signals (3)“ is displayed. The
dialog box shows the states of the inputs and outputs of the device.

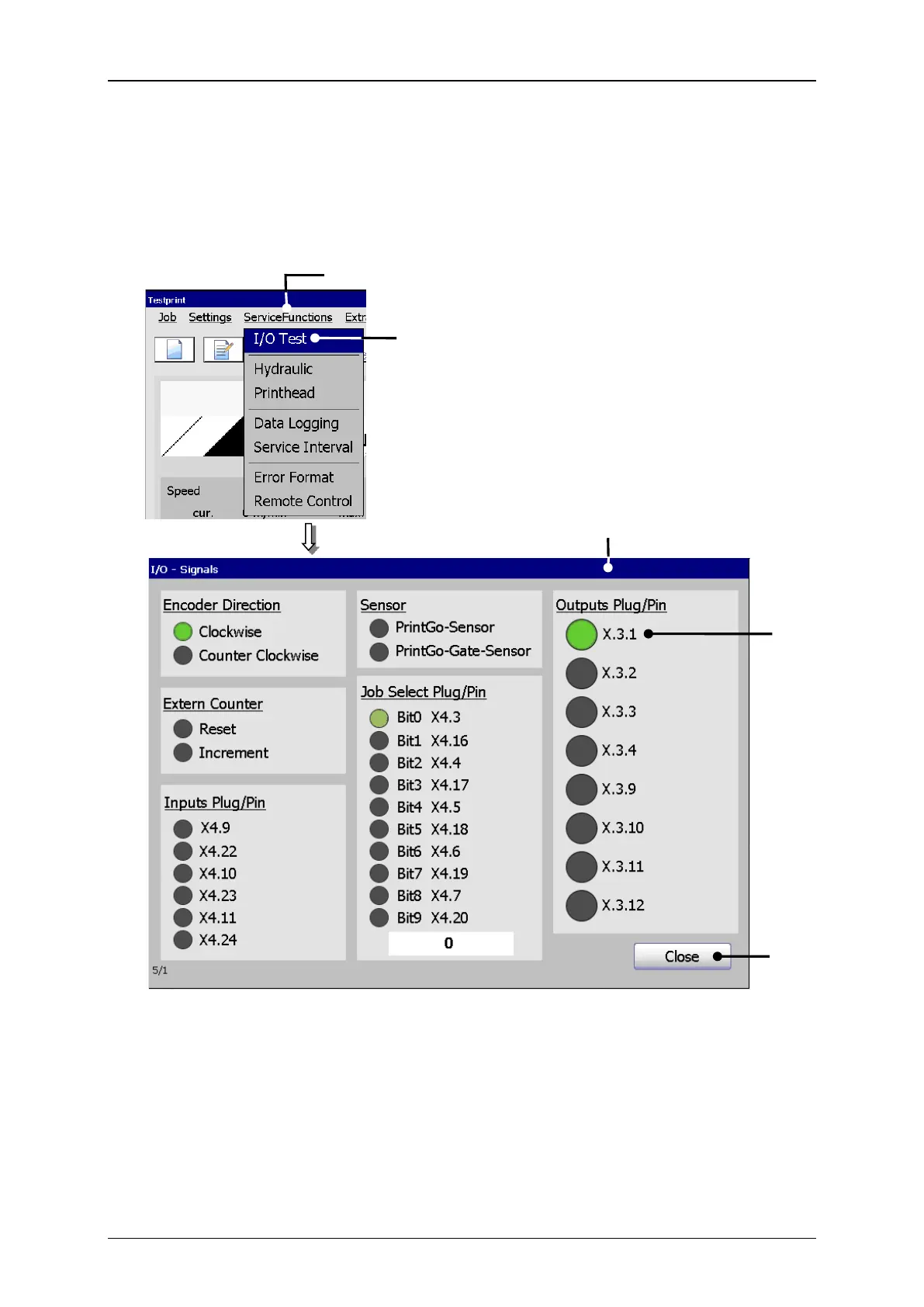

Figure 69
I/O-Signal test
5
I
1 – Button <ServiceFunctions>
4 – Status display <I/O active/inactive>
2 – Option <I/O-Test>
5 – Button <Close>
3 – Dialog box <I/O-Signals>
The button <Close> (5) closes the dialog box.
