Leibinger Jet 3 - Page 161

Group 7 Data/Programming Page 159
Release R2.0 LEIBINGER JET3

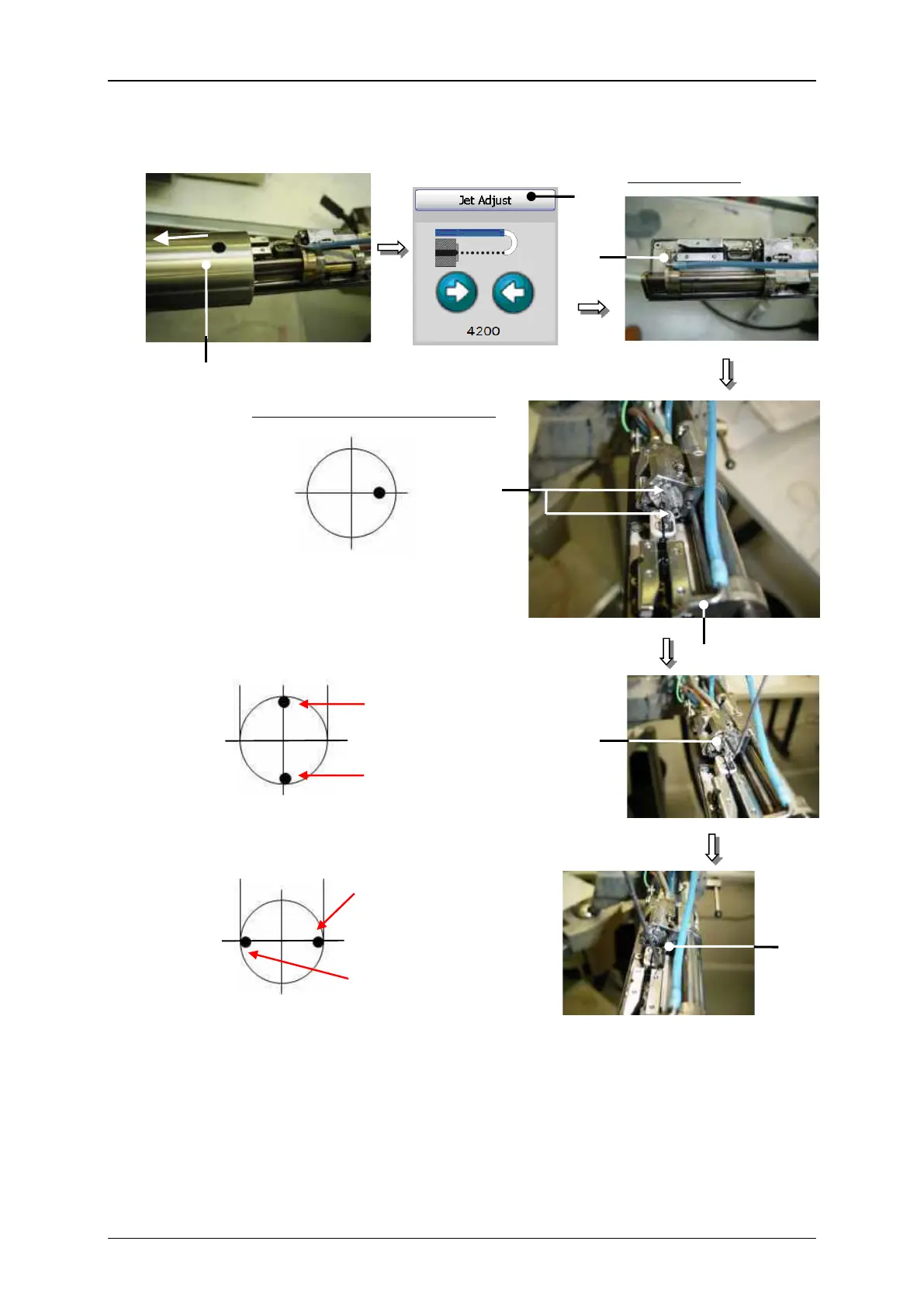

Figure 73
Jet adjustment (Step 2)
11 – Head cover
13.1 – Upper setting screw
12 – Button <Jet Adjust>
13.2 – Lateral setting screw
13 – Setting screw (2x)
14 – Gutter tube
Setting position
11
Gutter tube top edge
12
Setting position in the gutter tube
14
14
13.1
13
13.2
2
Gutter tube bottom edge
Right gutter tube angle
Left gutter tube angle
