7.5.5.3 Drawing tools

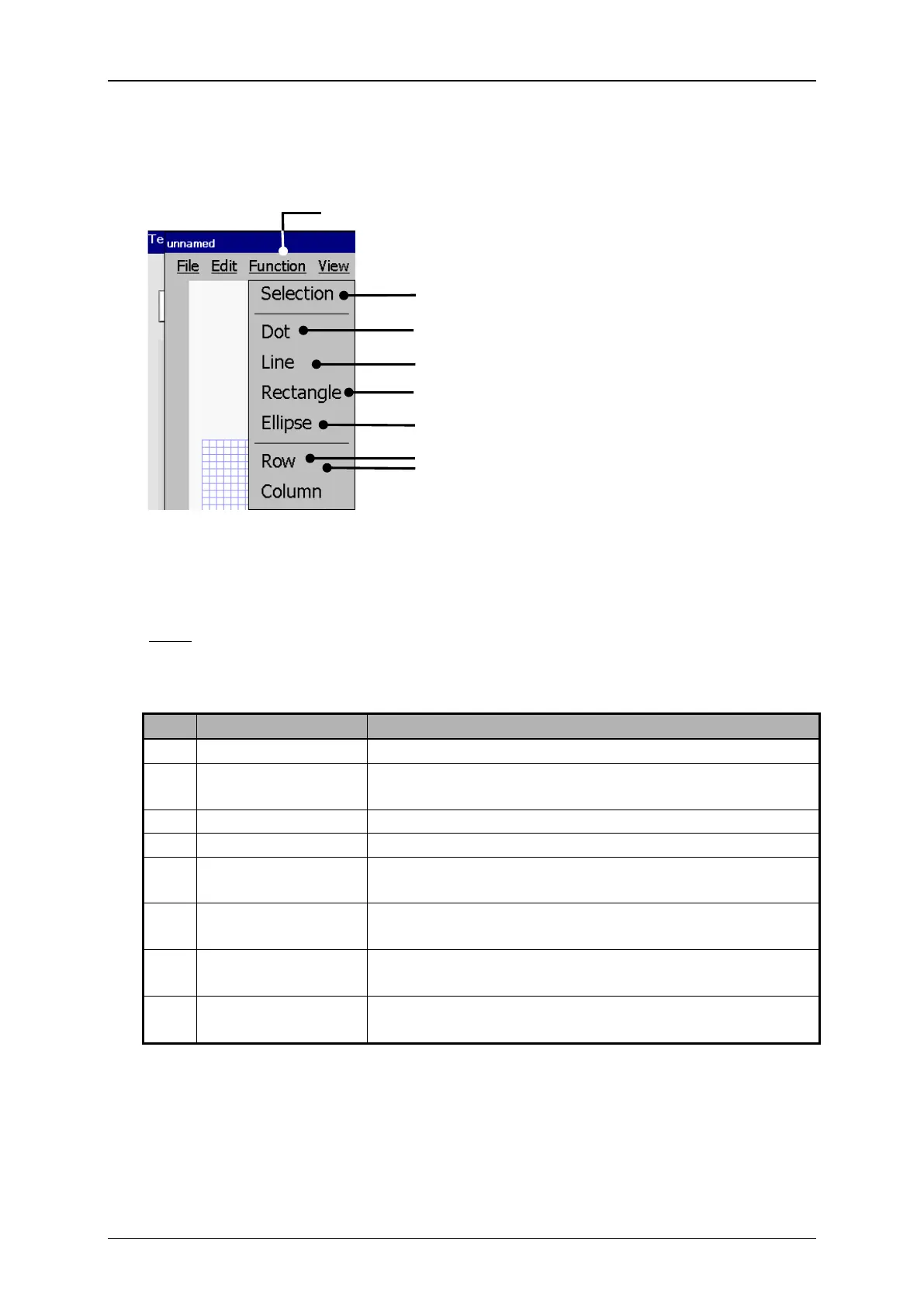

Figure 94
Graphic editor (Drawing tools)
1 – Button <Function>
2 – Drawing tool <Selection>
3 – Drawing tool <Dot>
4 – Drawing tool <Line>
5 – Drawing tool <Rectangle>
6 – Drawing tool <Ellipse>
7 – Drawing tool <Row>
8 – Drawing tool <Column>
With the button <Function> you can select the tools to create graphic elements and
you can select (mark) the graphic segments.
Note: The function of the tools refers to the Windows™-drawing tools.
Irrespectively of the set raster size, points are always created with a raster
size 1x1 and lines- and circle elements are created with a raster width 1.
Pos.
Drawing tool
Function
2.
Selection
Provides the marking of a created graphic segment for
editing.
3.
Dot
Provides the creation of a point.
4.
Line
Provides the creation of a line in the requested length.
5.
Rectangle
Provides the creation of a rectangle or quad in the
requested size.
6.
Ellipse
Provides the creation of a circle or an ellipse in the
requested size.
7.
Row
Generates a (horizontal) line with the total length of the
selected row.
8.
Column (Gap)
Generates a (vertical) line with the total length of the
selected gap.
