Leibinger Jet 3 - Font Editor Usage

Group 7 Data/Programming Page 197
Release R2.0 LEIBINGER JET3

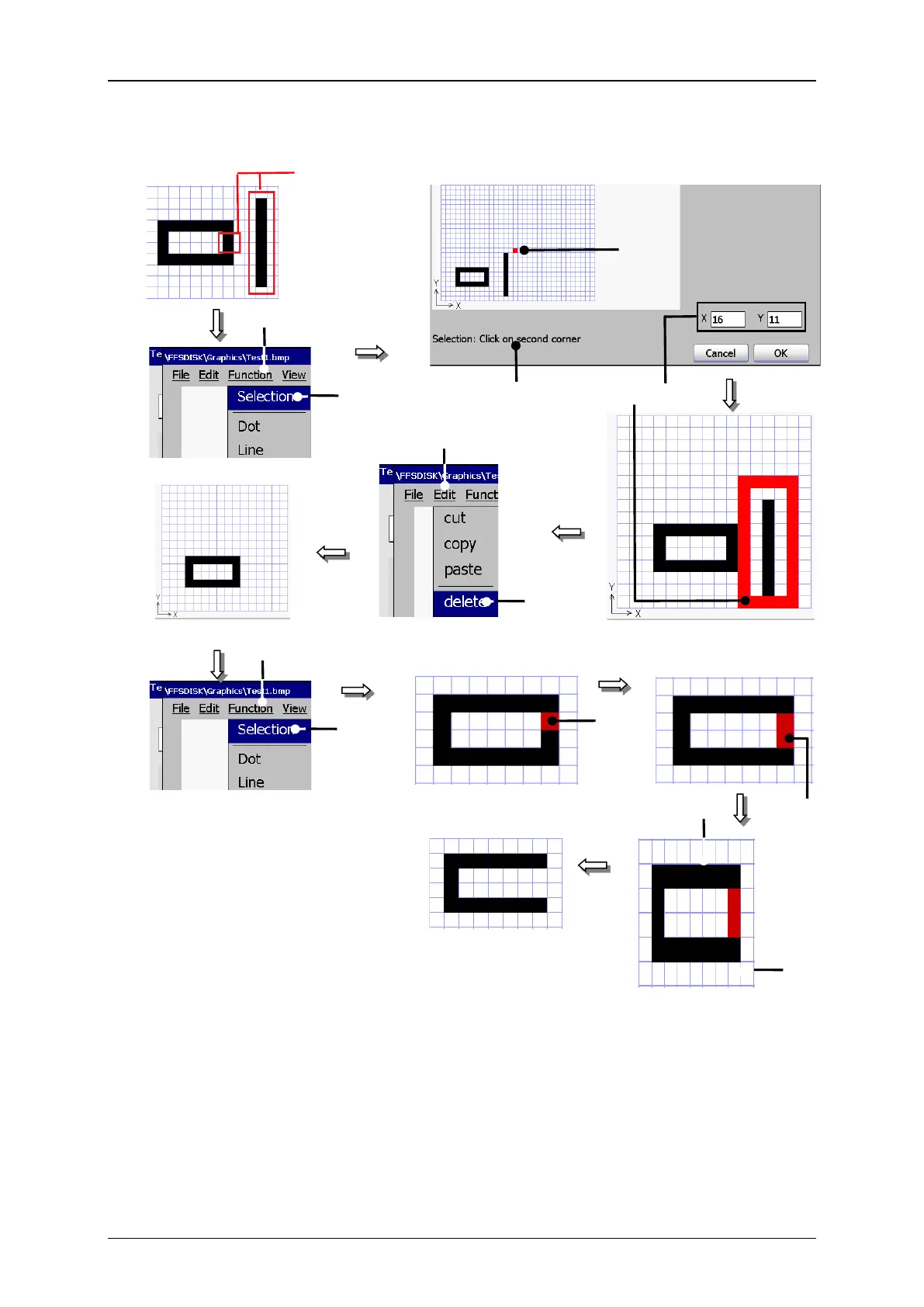

Figure 100
Graphic editor (Delete graphic elements)
1 – Button <Function>
8 – Edit tool <delete>
2 – Drawing tool <Selection>
9 – Button <Function>
3 – Start point (catch frame)
10 – Drawing tool <Selection>
4 – Display <Coordinates>
11 – Start point (catch frame)
5 – Display <Activities to carry out>
12 – End point (catch frame)
6 – End point (catch frame)
13 – Button <Edit>
7 – Button <Edit>
14 – Edit tool <delete>
Areas (elemets)
to delete
6
3
4
8
1
2
9
10
5
7
14
13
12
11
