Group 7 Data/Programming Page 196
Release R2.0 LEIBINGER JET3
 Click in the grid of the input field on the requested start point (3).
 The requested start point is placed and is marked red. At the same time on the
display <Coordinates> (4) the coordinates of the start points are shown and
on the display <Activities to carry out> (5) you can see the next required or
possible activity.
 Now click in the grid on the requested position of the end point (6). The
rectangle is now created.

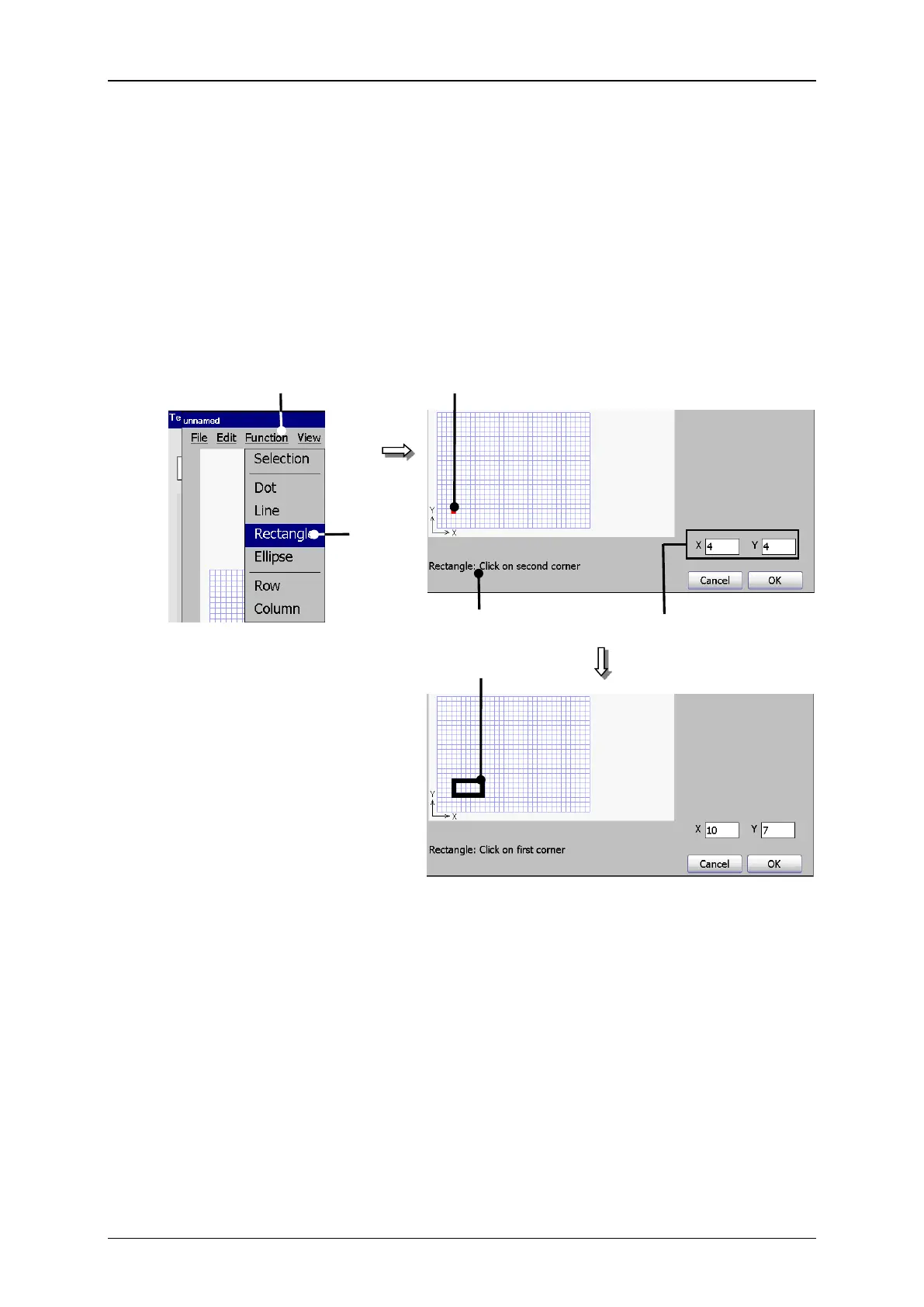

Figure 99
Graphic editor (Create a bitmap)
)
1 – Button <Function>
4 – Display <Coordinates>
2 – Drawing tool <Rectangle>
5 – Display <Activities to carry out>
3 – Start point
6 – End point (Rectangle)
2. Deletion of a graphic element or graphic segment:
(Example: A rectangle should be interrupted and a line should be deleted)
Proceeding:
 Press the button <Function> (1) and afterwards on the drawing tool
<Selection> (2).
1
6
3
5
2
4
