Group 7 Data/Programming Page 195
Release R2.0 LEIBINGER JET3

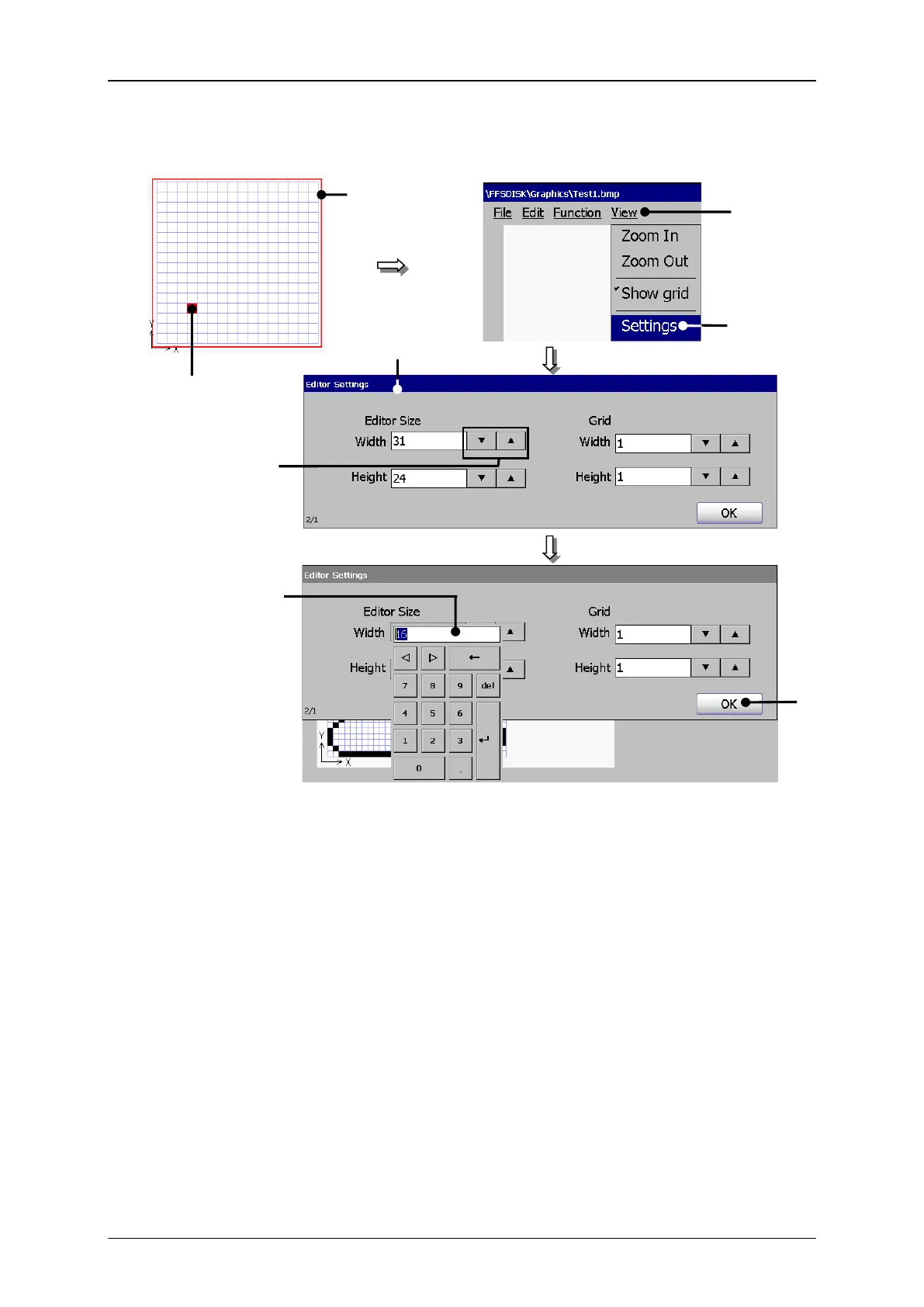

Figure 98
Graphic editor (Settings)
)
1 – Button <View>
4 – Arrow keys
2 – Option <Settings>
5 – Display field
3 – Window <Editor Settings>
6 – Button <OK>
7.5.5.8 Create and process graphic elements
1. Creation of a graphic element:
(Example.:A rectangle should be created)
Proceeding:
 Press the button <Function> (1) and afterwards on the drawing tool
<Rectangle> (2).
Grid size
2
5
6
4
3
Editor size
1
