Leibinger Jet 3 - Extern Text Mailing: Object Creation

Group 8 Job editor Page 326
Release R2.0 LEIBINGER JET3

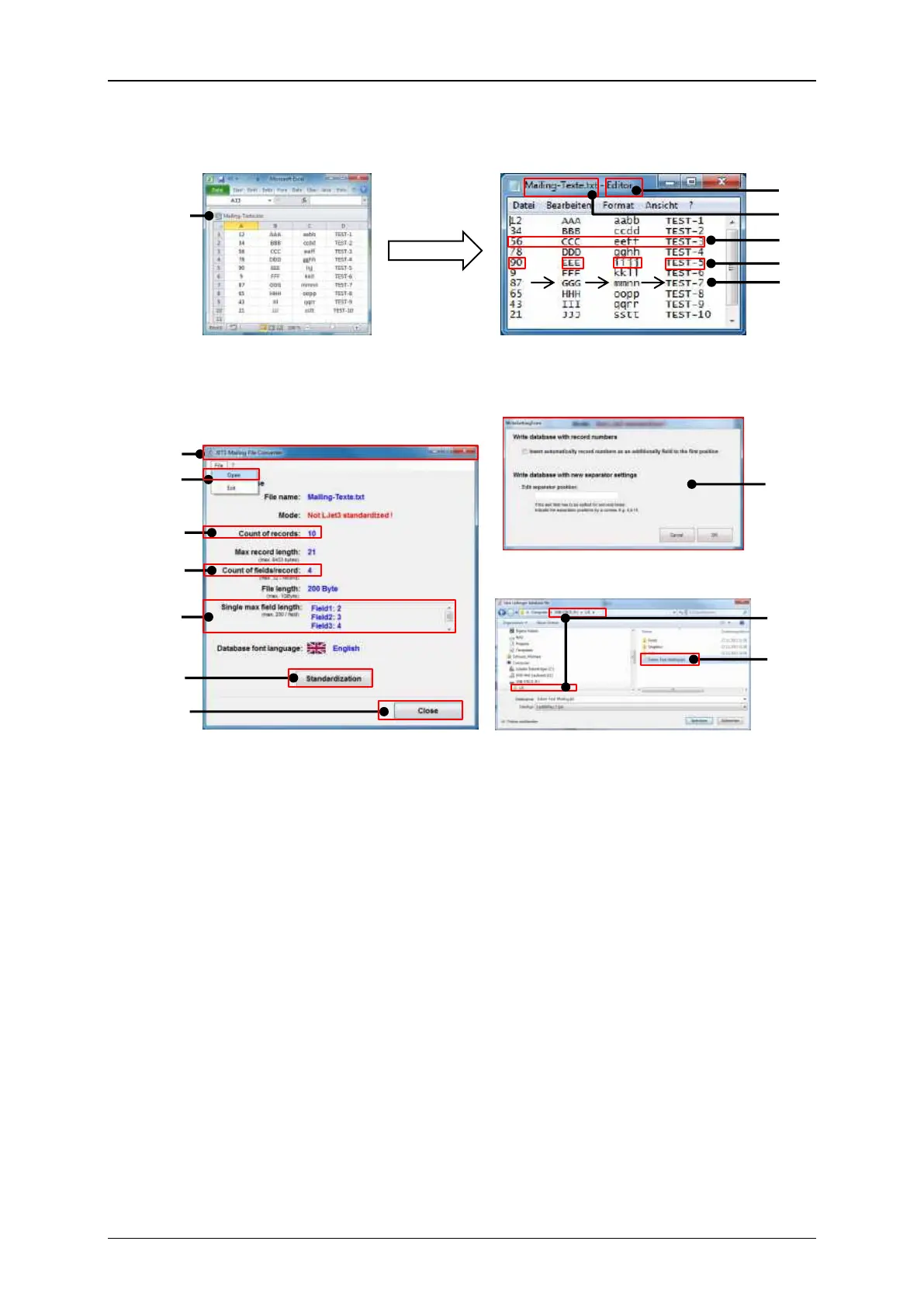

Figure 165
Extern Text Mailing – Creating a data file
Spreadsheet: export to tab
separated *.txt file
Text editor: create a tab
separated *.txt file
Available options during the
saving procedure.
JET3 Mailing File Converter user
interface. File loaded.
Save-as dialog box of the JET3
Mailing File Converter.
1 – Spreadsheet software
9 – Number of data sets
2 – Text editor software
10 – Number of fields per record
3 – File format *.txt
11 – Field length of each field
4 – Data set
12 – <Standardization> button
5 – Data fields
13 – <Close> button
6 – Tabulator separators
14 – Database options
7 – JET3 Mailing file converter
15 – LJ3 folder in root directory
8 – Option <Open> file open dialog
16 – Saved *.ljd file
7
Export
*.txt
1
2
5
6
4
3
8
9
10
11
12
13
15
16
14
