Group 12 Appendix Page 356
Release R2.0 LEIBINGER JET3

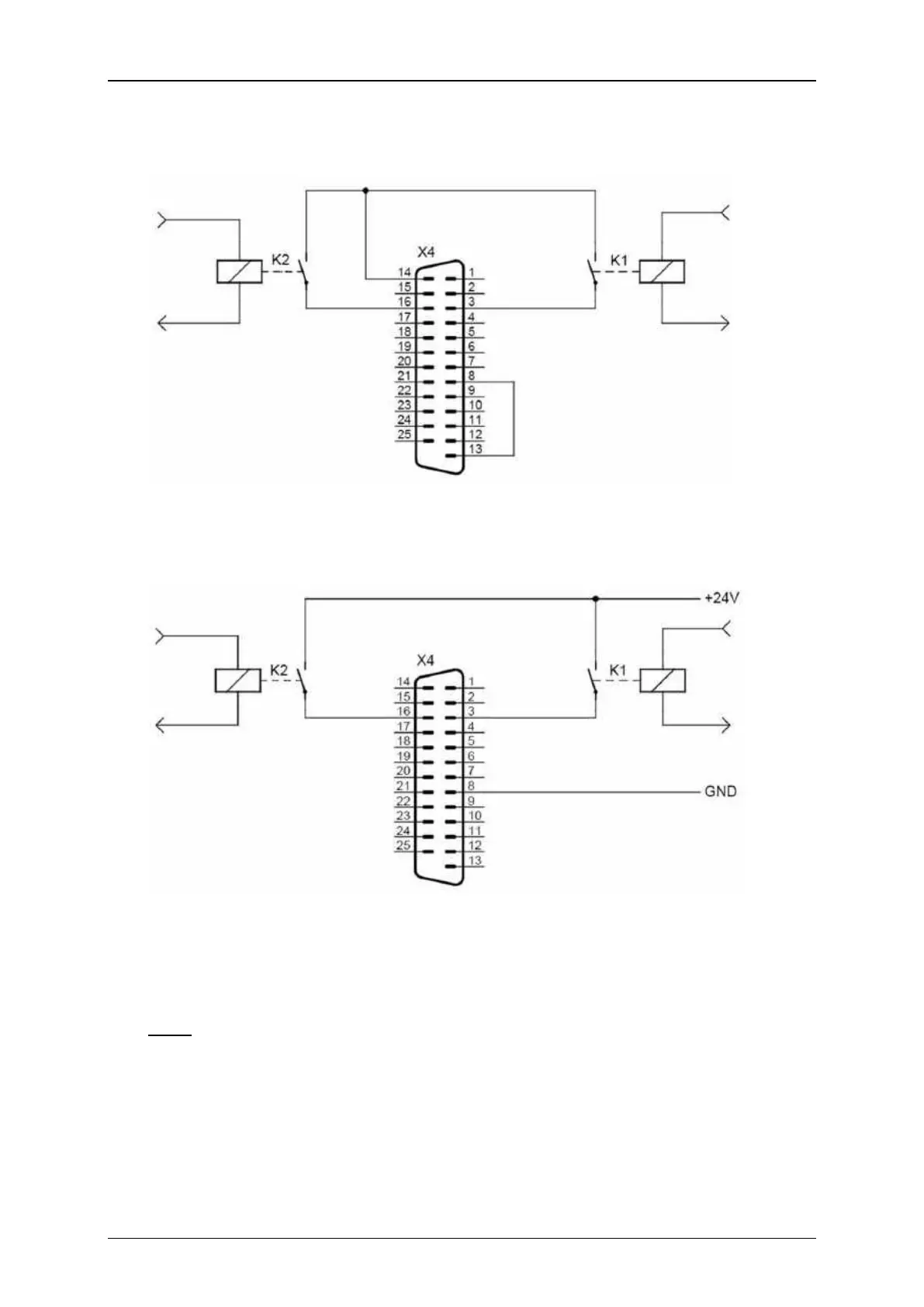

12.2.2.3 Jobselect Input
(Example with relay contacts)
With internal supply
With external supply
Note: Only Jobselect 0 and 1 are displayed. The same connection-schema is also
possible for Jobselect 2 up to 9.
