The threaded case is sealed inwards and thus IP 65 conform. With a screw and a
ring terminal (cable lug) the grounding can be fixed easily.
INFORMATION
Please note, that the grounding point (6) is hidden behind the round
grounding-symbol-label (7) on the lower left hand side of the cabinet
of the printer.

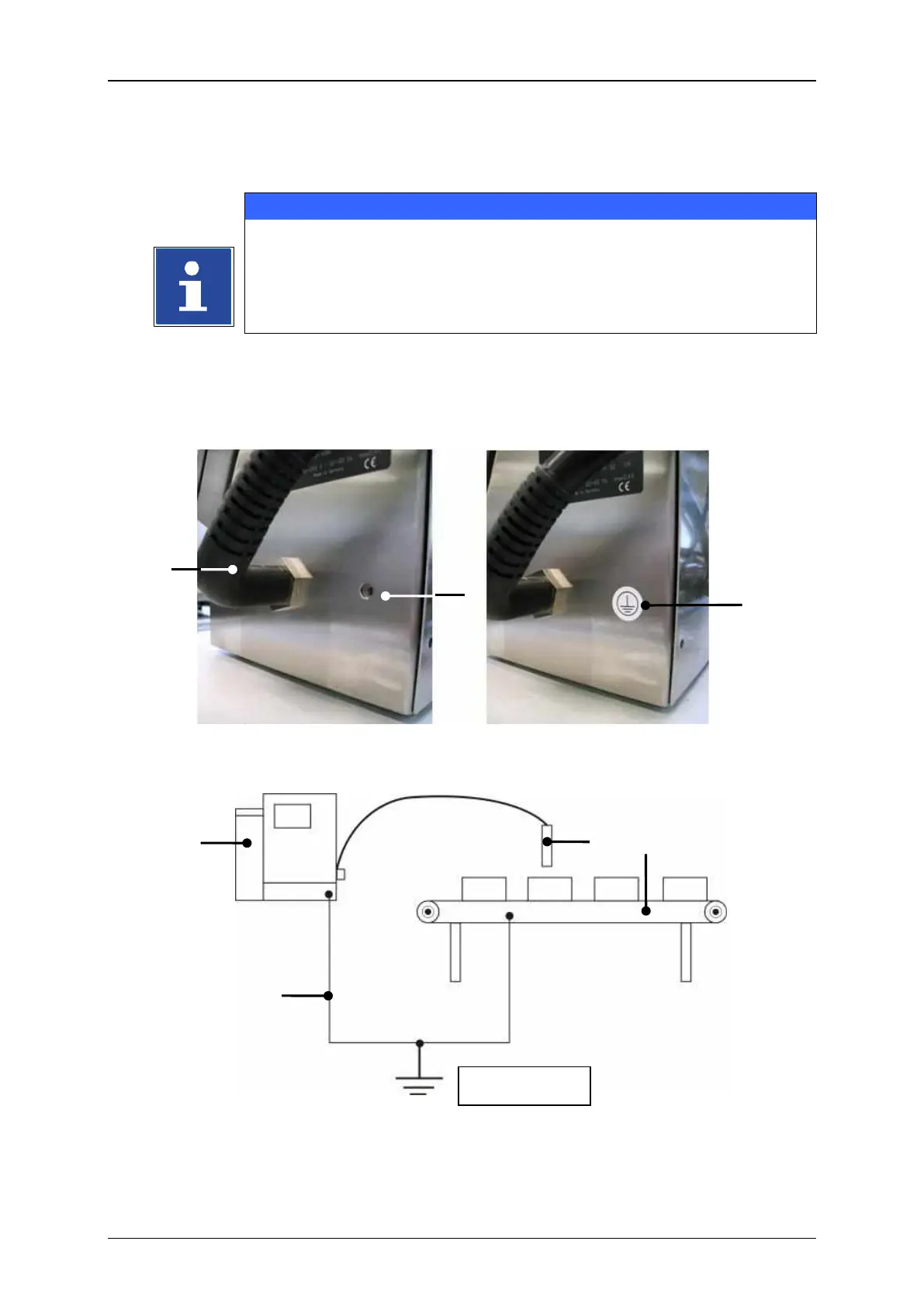

Figure 6
Grounding scematic and grounding point
Grounding schematic
1 – Printer cabinet
4 – Grounding line
7 – Grounding symbol-label
2 – Installation
5 – Umbilical
3 – Print head
6 – Grounding point (M6)
5
7
6
4
1
3
2
Ground/earth
