Group 5 Transport/Start up Page 58
Release R2.0 LEIBINGER JET3

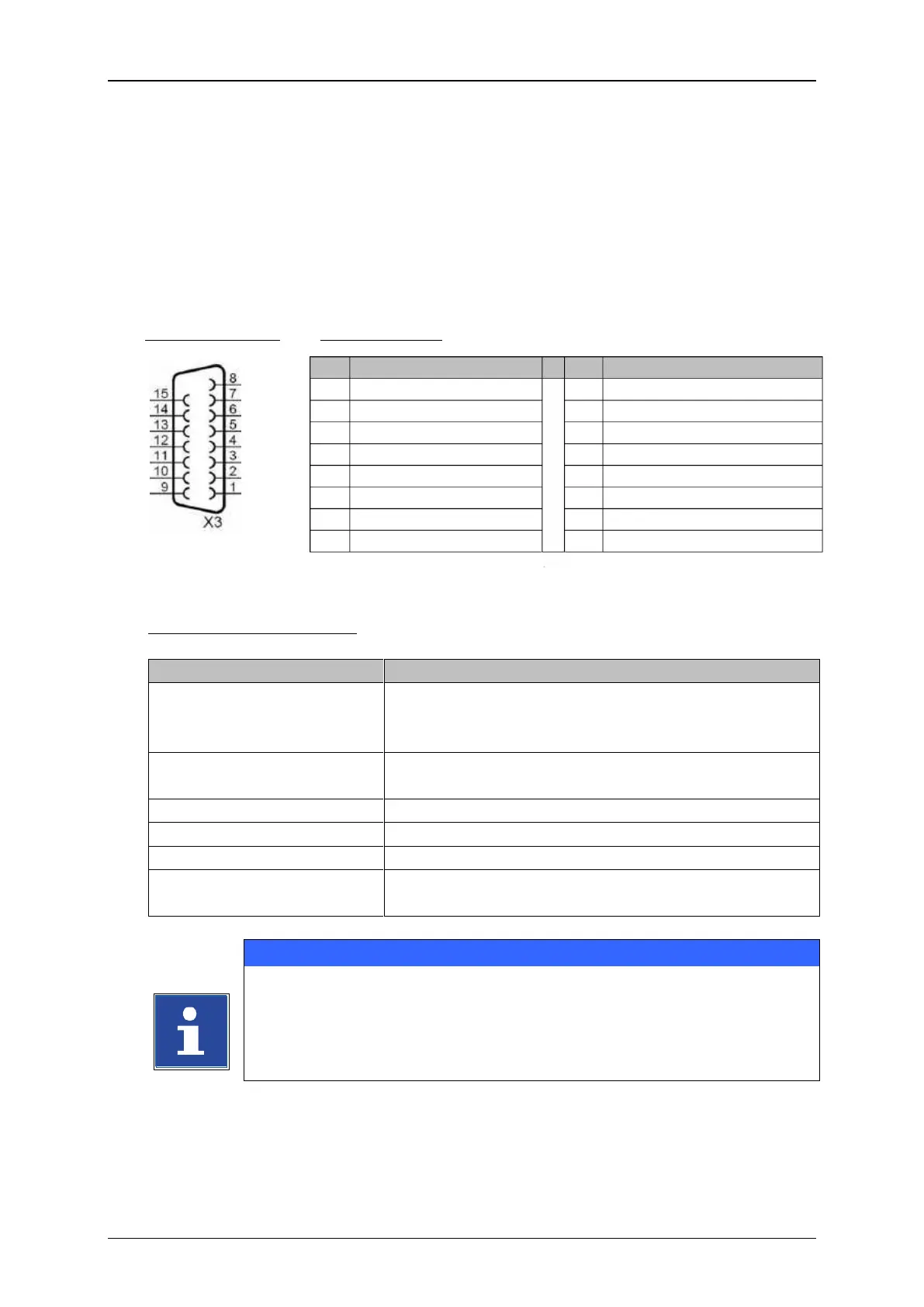

5.5.5 Interface X3 (Outputs)
8 outputs which can be freely selected are available for special functions. The outputs
1-3 are predefined as a standard and should be not changed.
 Output 1 = Print stop error
 Output 3 = Ready to print
 Output 2 = Refill warning
Specifications Output 1-8:
Parameter
Value
Driver type
24V high side driver
ON = +24V
OFF = high resistance
Output current
max. 700mA/output
max 700 mA totally
(1)
Max. switching frequency
2 kHz
(2)
Max. delay time
100µs
Turn on resistance
max. 0,28 Ohm
Features
 Short-circuit-proof
 Overcurrent- and excess temperature –proof
INFORMATION
The function allocations of the outputs is carried out with the software
of the JET3 in the menu Settings  I/O-Settings  Outputs.
You will find a circuit diagram of the interface in the manual appendix!
(1)
All 24V inputs which are designated with (1) are protected by a self-reset fuse with 700mA,
that means the sum of all output currents which are supplied of this 24V should not exceed
700mA.
(2)
Depending on the set function.
Pin
Designation
Pin
Designation
1
Output 1
9
Output 5
2
Output 2
10
Output 6
3
Output 3
11
Output 7
4
Output 4
12
Output 8
5
+24V
(1)
13
Reserved
6
Reserved
14
Reserved
7
Reserved
15
GND
8
GND
Reserved = Do not connect
Plug assignment:
Pin connection:
