5.5.6 Interface X2 (Serial interface)
The interface “X2” is a serial data interface with a transfer rate up to 115200 Baud.
The access is suitable for a connection to the printer to application-specific software
for the data management and for the remote control of the printer.
INFORMATION
The function allocations of the outputs is carried out with the software
of the JET3 in the menu Settings  I/O-Settings  Outputs.
You will find a circuit diagram of the interface in the manual appendix!
Pin
Designation
Pin
Designation
1
NC
6
Connected with 4
2
RxD
7
RTS
3
TxD
8
CTS
4
Connected with 6
9
NC
5
GND
NC = not connected

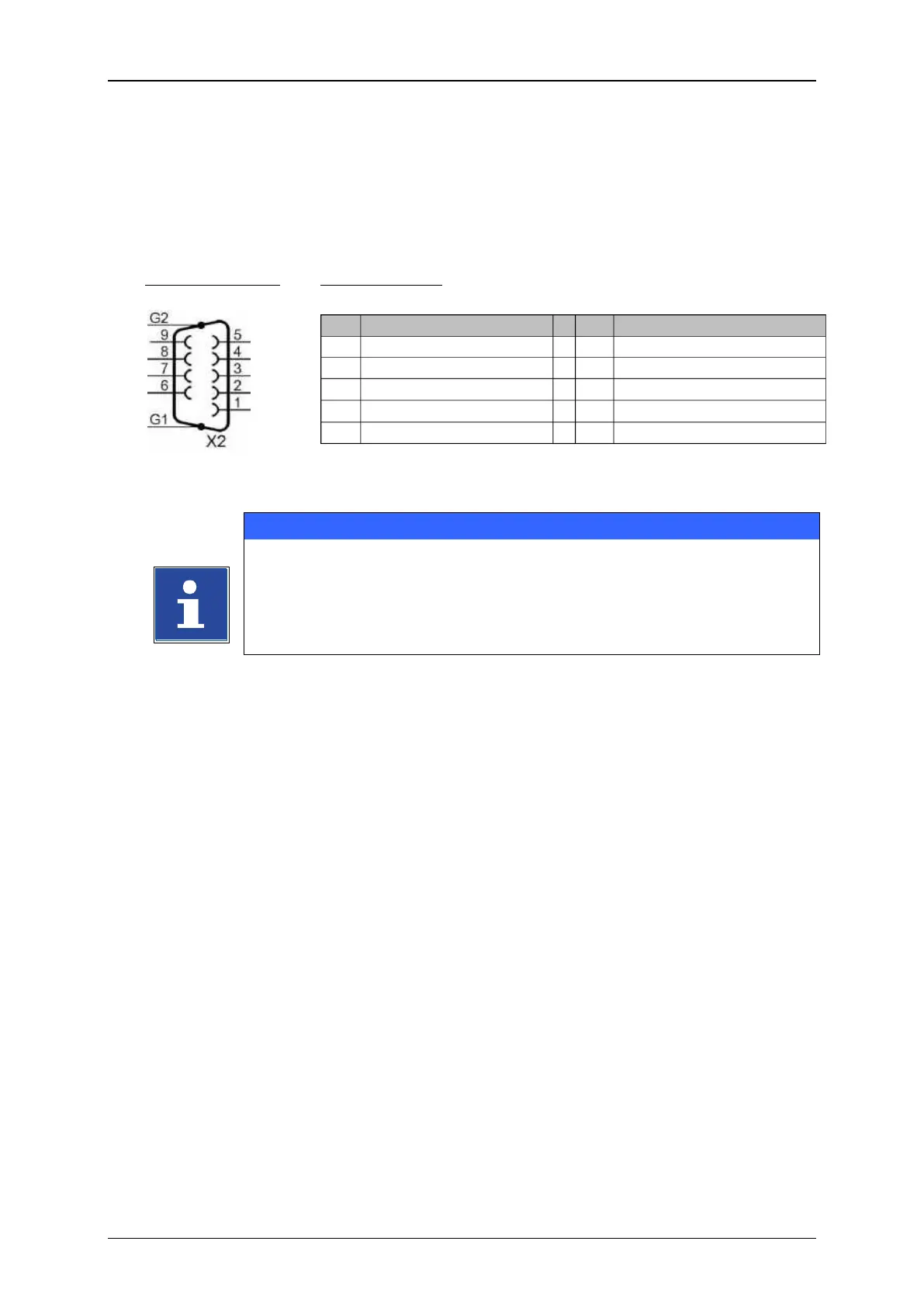

Plug assignment:
Pin connection:
