Leibinger Jet 3 - Essential Operating and Information Elements

Group 6 Operation – Functional principle Page 64
Release R2.0 LEIBINGER JET3
6.2.6 Summary of the individual procedures

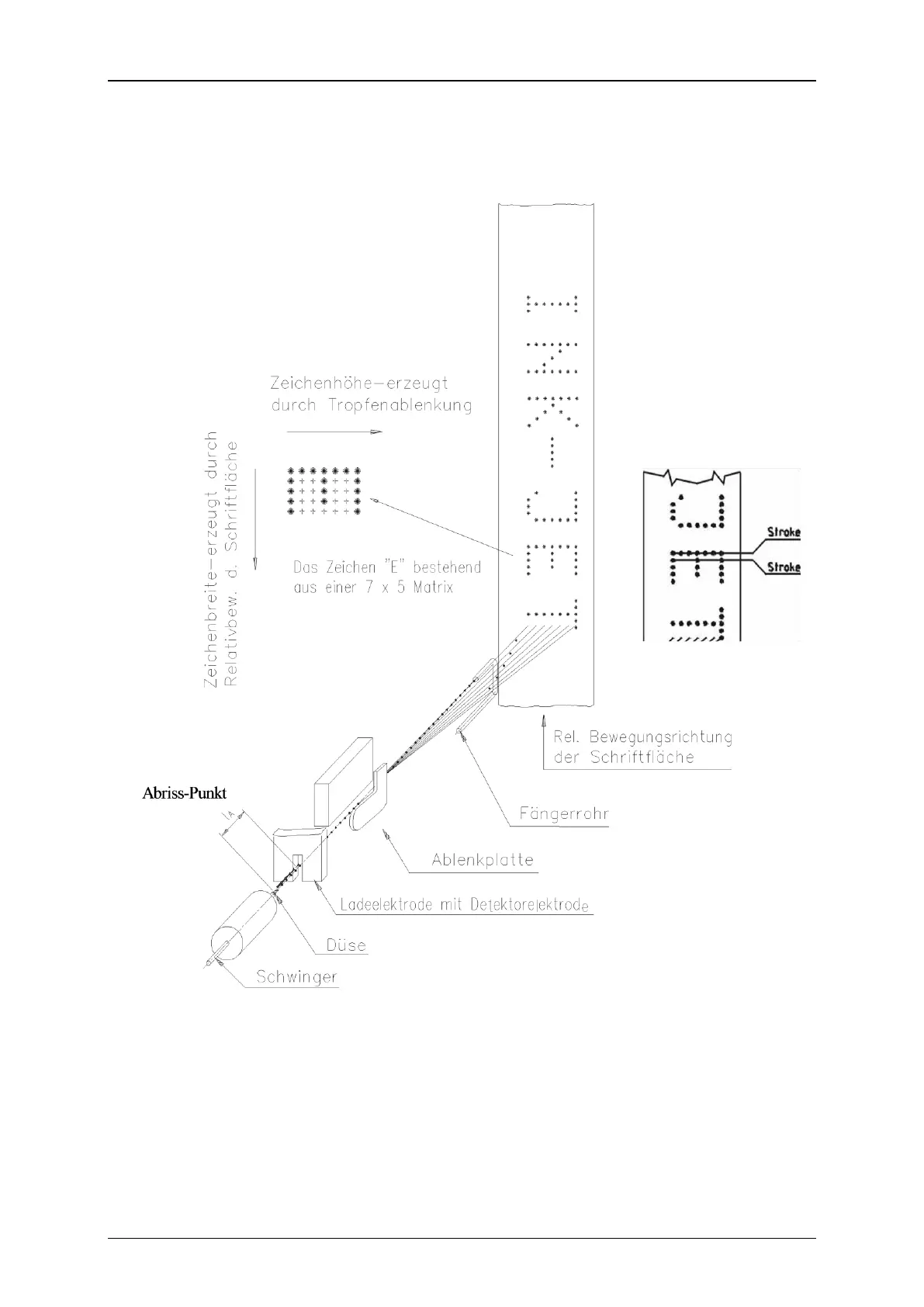

Figure 15
Character creation process
X
X+1
Character height created
by drop deflection
Drop brake-off point
Character „E“ build with a
7 x 5 matrix
Rel. movement direction of
the description area
Gutter
Deflector plate
Charge electrode with deflector
electrode
Nozzle (jet)
Oscillator
Character width created by the rel. movement of the description area
