6.2.7 Example of use

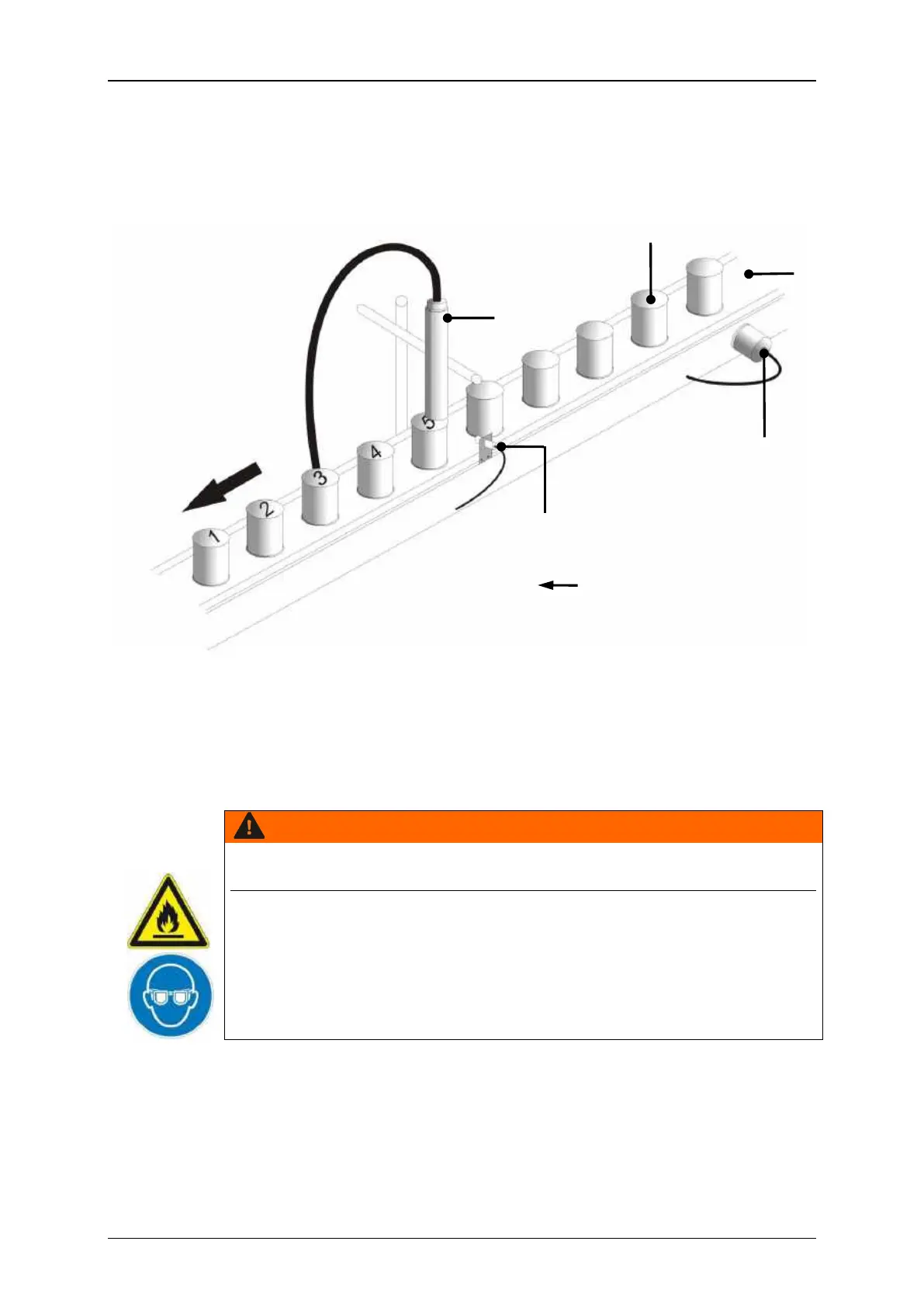

Figure 16
Example of use
1 – Product
3 – Encoder
5 – Print head
2 – Conveyor belt
4 – Sensor
6.3 Safety instructions
WARNING
Risk of fire and injury!
 Inflammable! Combustible gases and liquids cause serious burns.
Sources of ignition must be kept away from the print head!
 Ink escapes from the head aperture. Spraying of ink into the eyes can
cause blindness. Eye protection is necessary!
3
5
4
2
1
= Direction of conveyance
