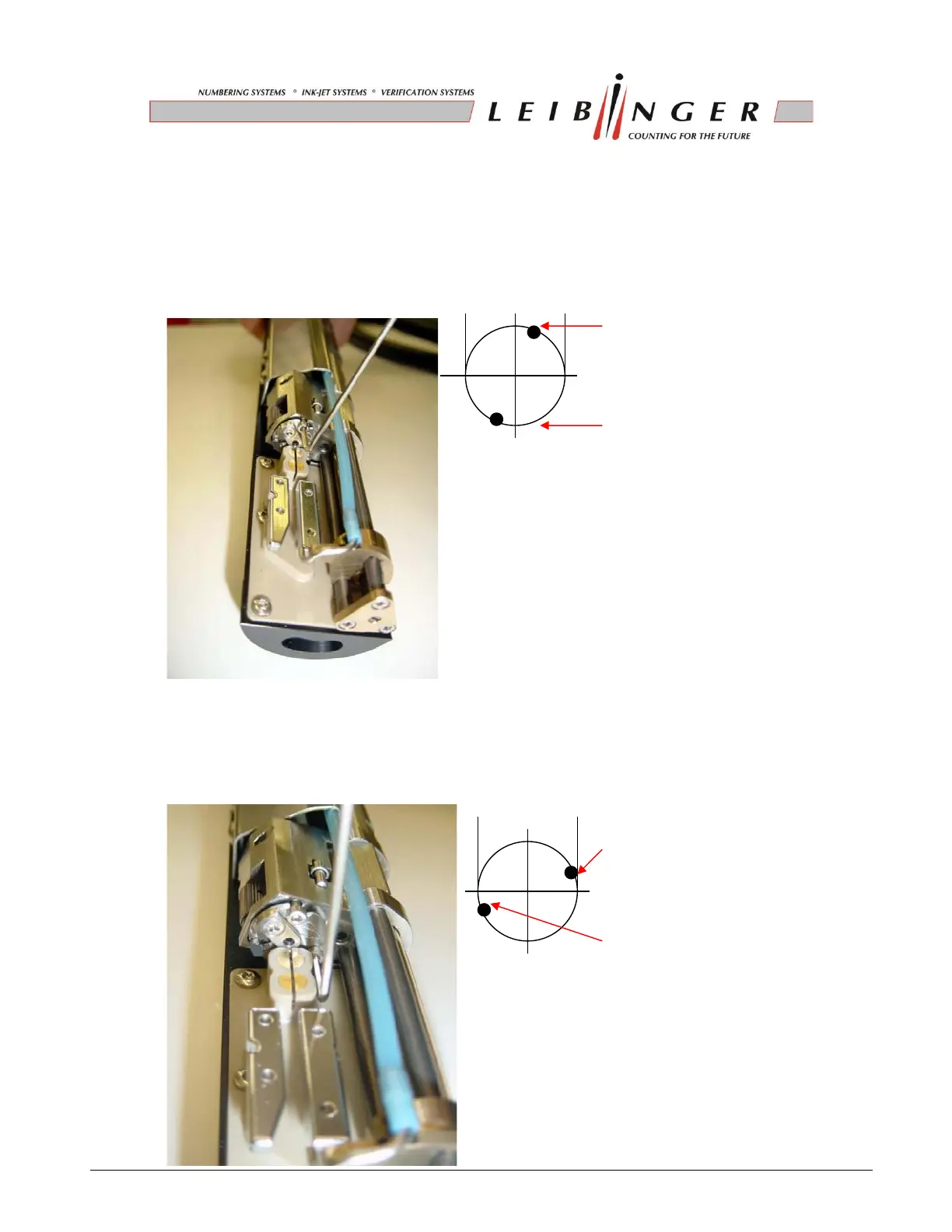

Rotating the upper adjusting screw CW, the ink stream is moving a little bit angular in
direction of the gutter tube top edge. Rotating the screw CCW, the ink stream is moving a
little bit angular in the direction bottom edge of the gutter tube.
(Viewing direction from nozzle to gutter)
gutter tube top edge
gutter tube bottom edge
Rotating the edgeways adjusting screw CW, the ink stream is moving
a little bit angular upwards in direction of left edge of gutter tube. Rotating the screw
CCW, the ink stream is moving a little bit angular downwards in direction of left edge of
gutter tube. (Viewing direction from nozzle to gutter)
right edge of gutter tube
left edge of gutter tube
Fangrohrkante
