Config...\Interfaces... - General GPS1200 129
20 Config...\Interfaces... - General
20.1 Overview
Description The receiver has a variety of interfaces which can be configured to be used with
different ports and devices. The configuration varies depending on the individual
application.
Interface, port and
device
Description of the technical terms
Access Select Main Menu: Config...\Interfaces....
CONFIGURE
Interfaces

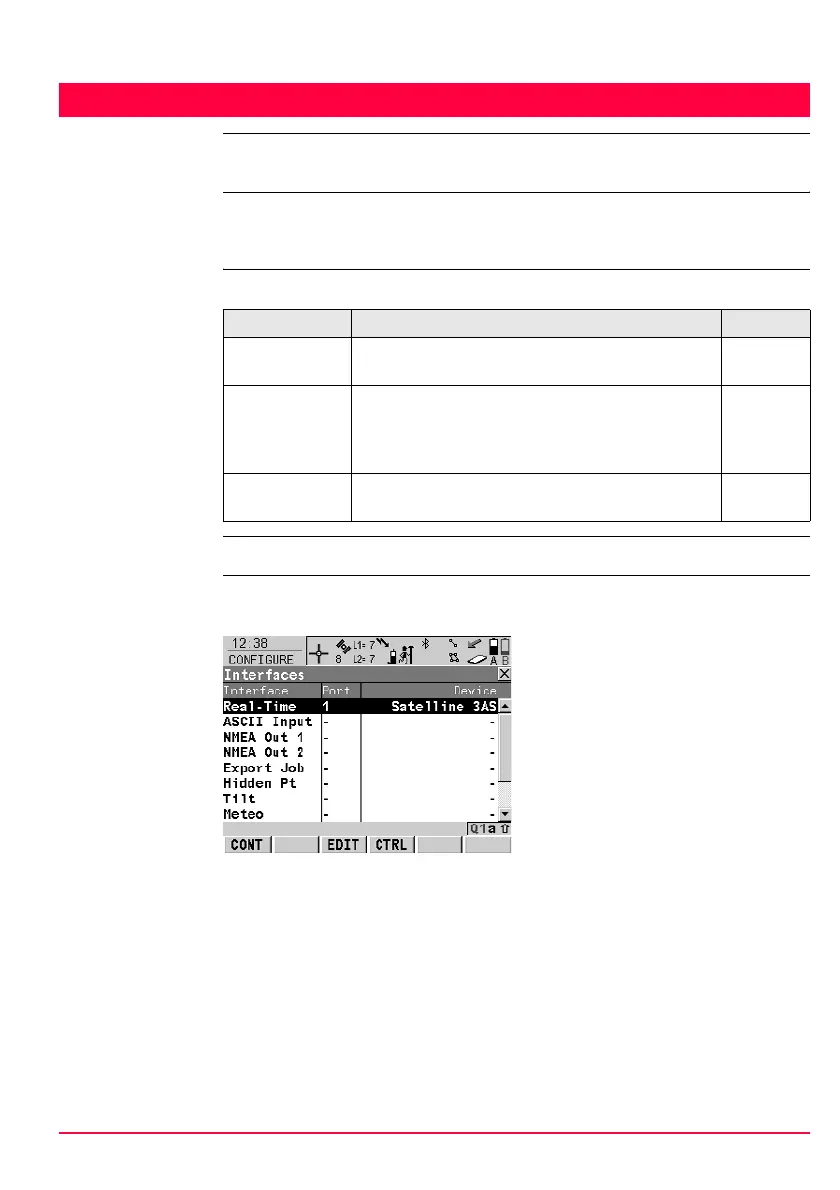

The screen gives an overview of all interfaces with the currently assigned port and
device. If a second real-time interface is configured it will also be shown.
Technical term Description Example
Interface An interface should be considered as a function of
the receiver.
Real-Time
Port The physical port on the instrument which will be
used for the interface functionality. It is sometimes
necessary to use particular ports with certain inter-
faces.
Port P1
Device The hardware which is connected to the chosen
port.
Radio
CONT (F1)
To return to the screen from where
this screen was accessed.
EDIT (F3)
To configure the parameters related
to the highlighted interface. Refer to
the sections on each individual inter-
face below.
CTRL (F4)
Available for certain devices
connected to certain interfaces. To
configure additional parameters, for
example changing channels of
radios.
SHIFT CONEC (F4) and SHIFT DISCO
(F4)
Available for a real-time interface
configured to use a device of type
digital cellular phone or modem. To
dial the number of another station
configured in the active configuration
set and to hang up again.
