Leica T-Scan 5 User Manual

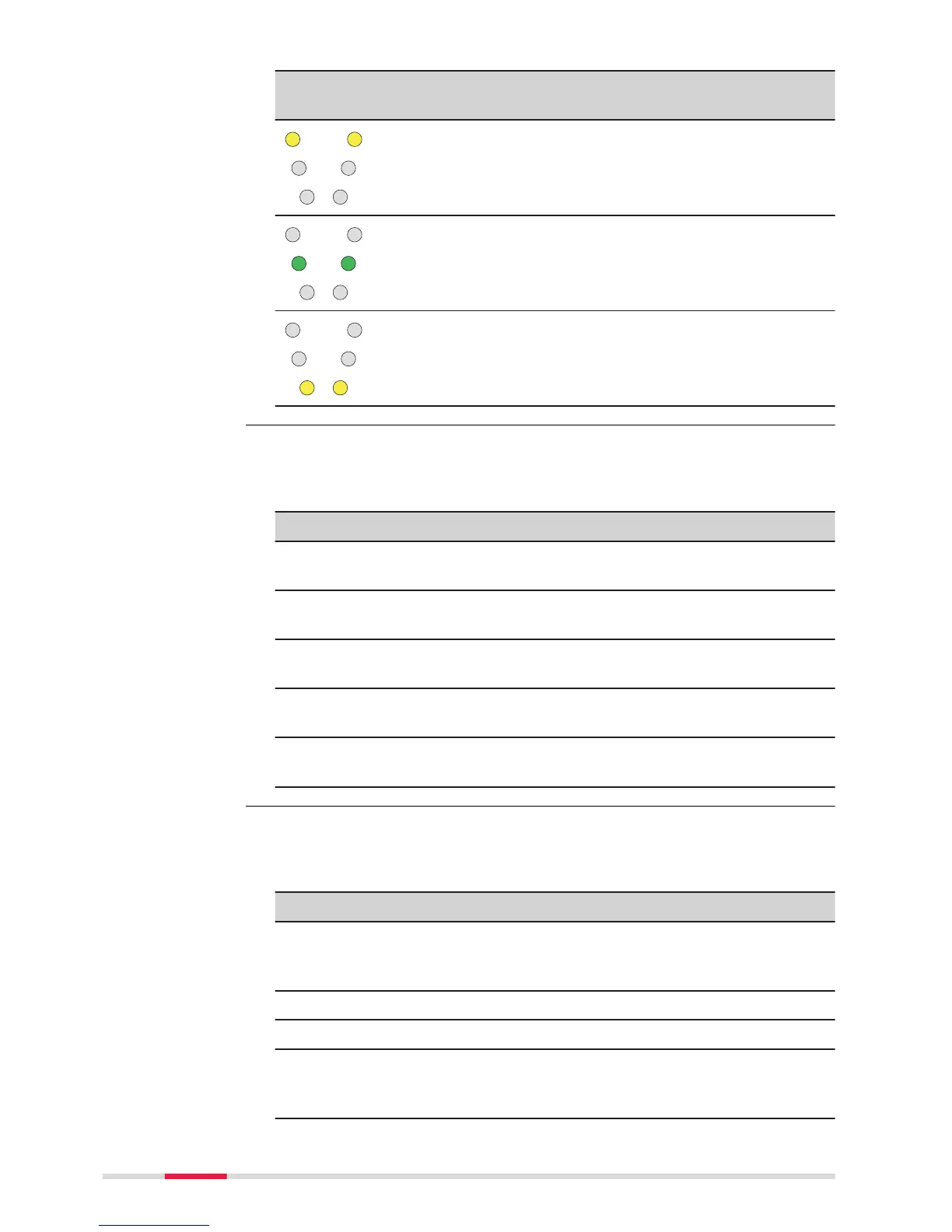

LED Sta-
tus
Status information
Maximum working distance, stand-off is at far end of work-
ing range
Mid working distance
Minimum working distance, stand-off is at close end of work-
ing range
The status LED for the Laser Tracker shows:
•
the communication status between T‑Scan sensor and Laser Tracker
•
the measurement status of the T‑Scan system
Colour Pattern Status information
LED OFF - No communication between T‑Scan and Laser
Tracker.
Green Static Communication to Laser Tracker is established.
T‑Scan system is ready to measure.
Red Static Laser Tracker beam is not locked onto T‑Scan.
T‑Scan system is not ready to measure.
Yellow Static Communication to Laser Tracker is established.
T‑Scan measurement is in process.
Green Blinking Communication to Laser Tracker is established.
T‑Scan is in sleep mode.
The status LED for the T‑Scan controller shows:
•
the status of the T‑Scan controller (ON/OFF)
•
the communication status between T‑Scan controller and T‑Scan sensor
Colour Pattern Status information
LED OFF - T‑Scan controller is OFF.
No communication between controller and sen-
sor
Red Blinking Power on
Yellow Blinking Booting
Green Blinking Successfully booted
Communication between T‑Scan controller and
sensor is okay.
Status LED for
Laser Tracker
Status LED for the
T‑Scan controller
18 Description of the System
