1312 Amsterdam+Assembly & Maintenance Guide
02. Fitting
the handlebars
Tip: Should you wish to adjust the angles of your
grips, brakes and shifter, you can do so with a simple
turn of allen key 3 or 4. However, this should be
correctly set already.

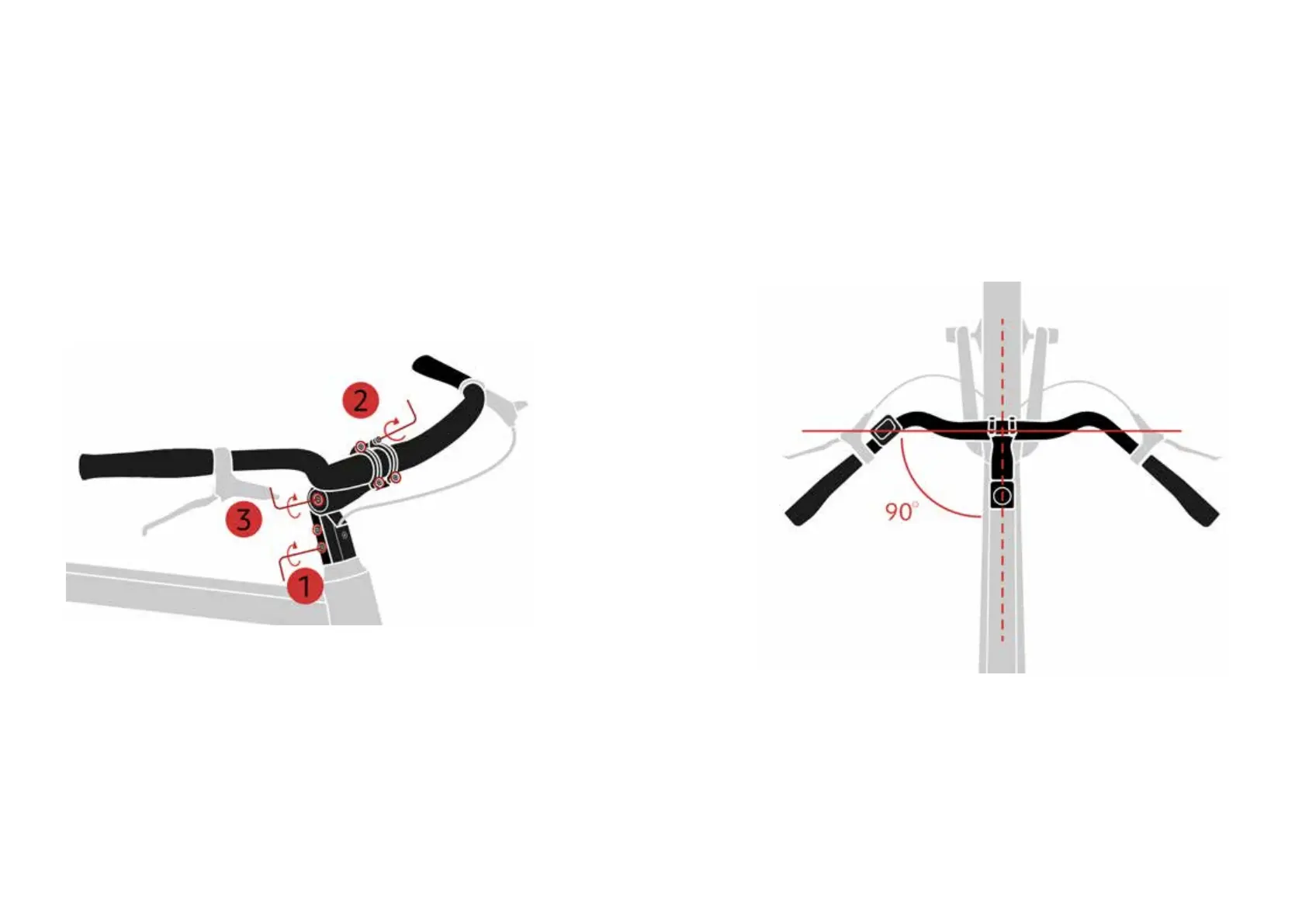

Step 1: Loosen the two stem bolts using the 4mm
allen key. Next, align the handlebars so that they are
perpendicular to the front wheel. Then, tighten the
two bolts.
Step 2: To adjust the angle of the handlebar, use the
same tool to loosen the faceplate at the front of the
handlebar stem and reposition the handebars. Then,
tighten the handlebar to the stem with the four bolts.
Step 3: To adjust the height of the handlebars use the
4mm allen key to adjust the angle of the stem.
