1514 Amsterdam+Assembly & Maintenance Guide
03. Fitting
the pedals

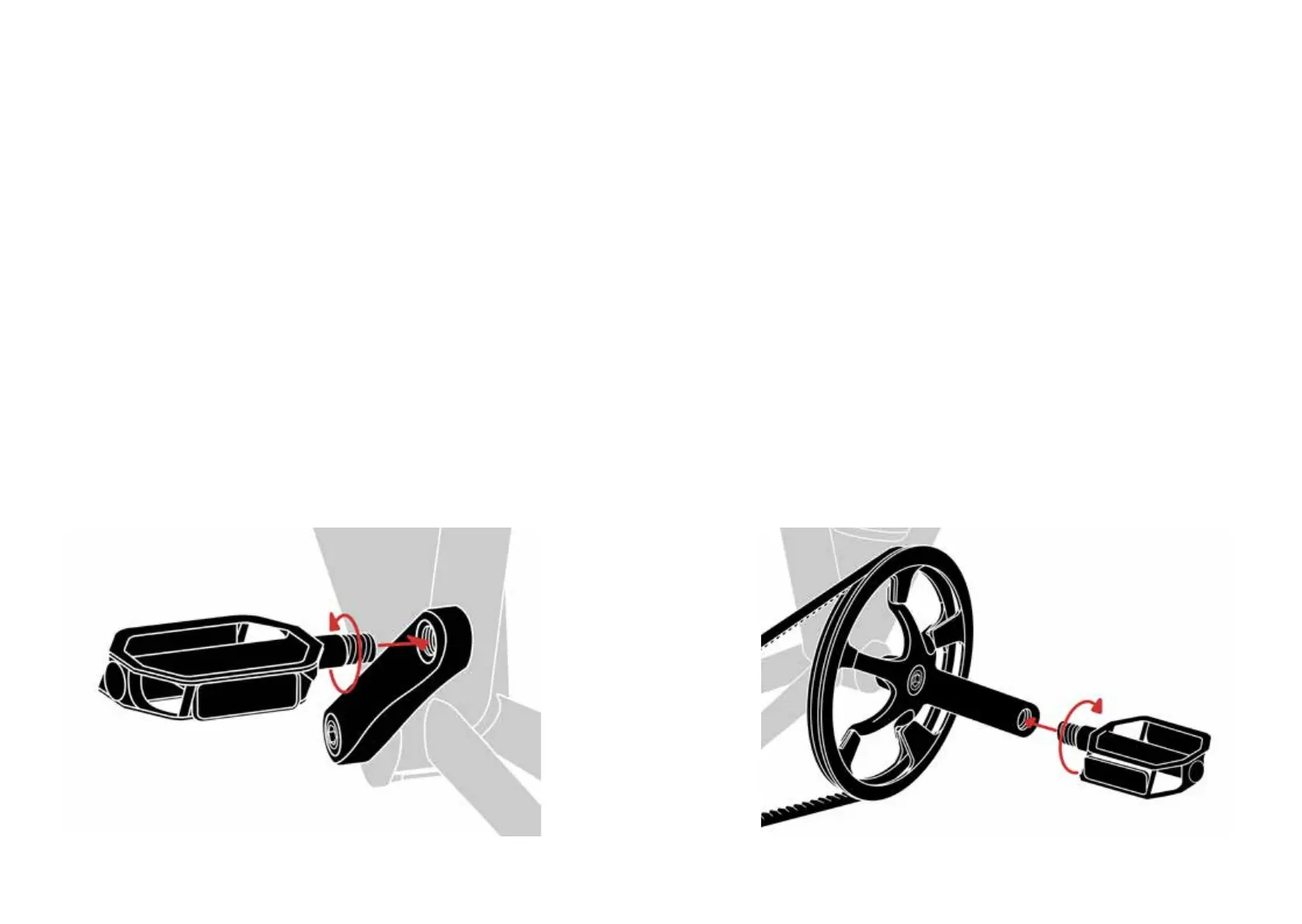

To assemble the pedals, you will need a 15mm open-
ended spanner. Insert the pedal into the crank and
ensure the pedal is properly tightened. Please see
below which pedal should go on each side of the
bike.
LEFT pedal: this is the pedal that has indented
horizontal lines on the small part between the pedal
and thread.
RIGHT pedal: this pedal has no indented lines and is
smooth in between the pedal and thread.
ATTENTION: please make sure you check the thread
direction before inserting the pedals. Fitting the
pedal to the wrong side can damage the crank arm
which is not covered under warranty.
