8 WELGER RP 202 RP 220 RP 302 RP 320

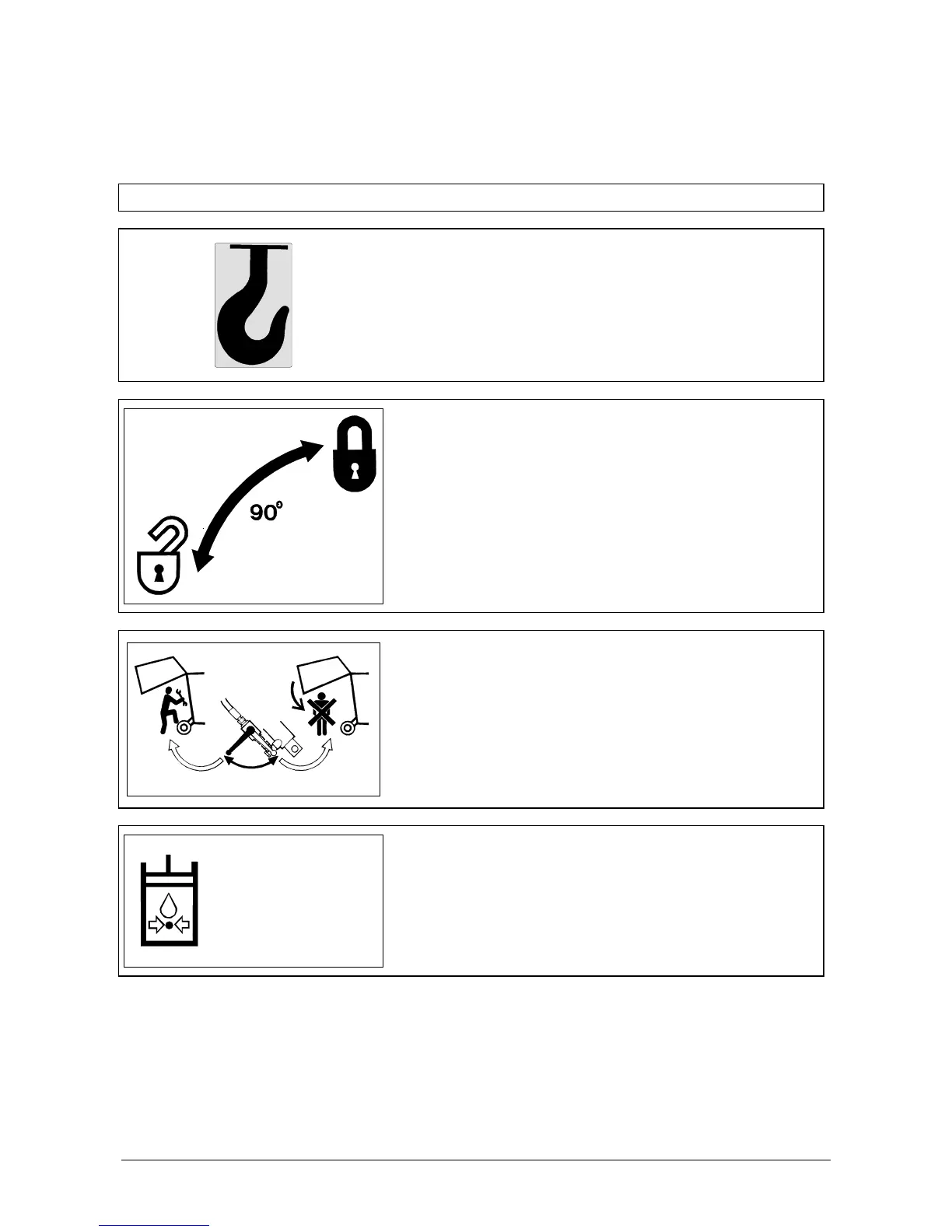

2.7. Symbols for the operation of the baler
The most important operating instructions are shown as symbols for the purpose of clarity. The exact
descriptions are given below.
Symbol Description/Spare part No.
The two lifting eyes in the upper part of the baler are identified
by this symbol.
No other fixing points may be used for hooking up a crane.
Spare part No.: 0389.48.00.00
Locking lever for the cutter blades
To unlock the cutter blades, the lever must be swivelled down
by approx. 90°.
Spare part No.: 0387.31.00.00 and 0387.32.00.00
0387-35
Tailgate safeguard
If the lever is transverse with respect to the flow direction, the
tailgate is secure against lowering.
Spare part No.: 0387.35.00.00
max. 210 bar
0387.36.00.00
Maximum permissible hydraulic pressure
The machine may only be connected to a hydraulic system
which supplies a maximum oil pressure of 210 bar.
Spare part No.: 0387.36.00.00
