WELGER RP 202 • RP 220 • RP 302 • RP 320 67

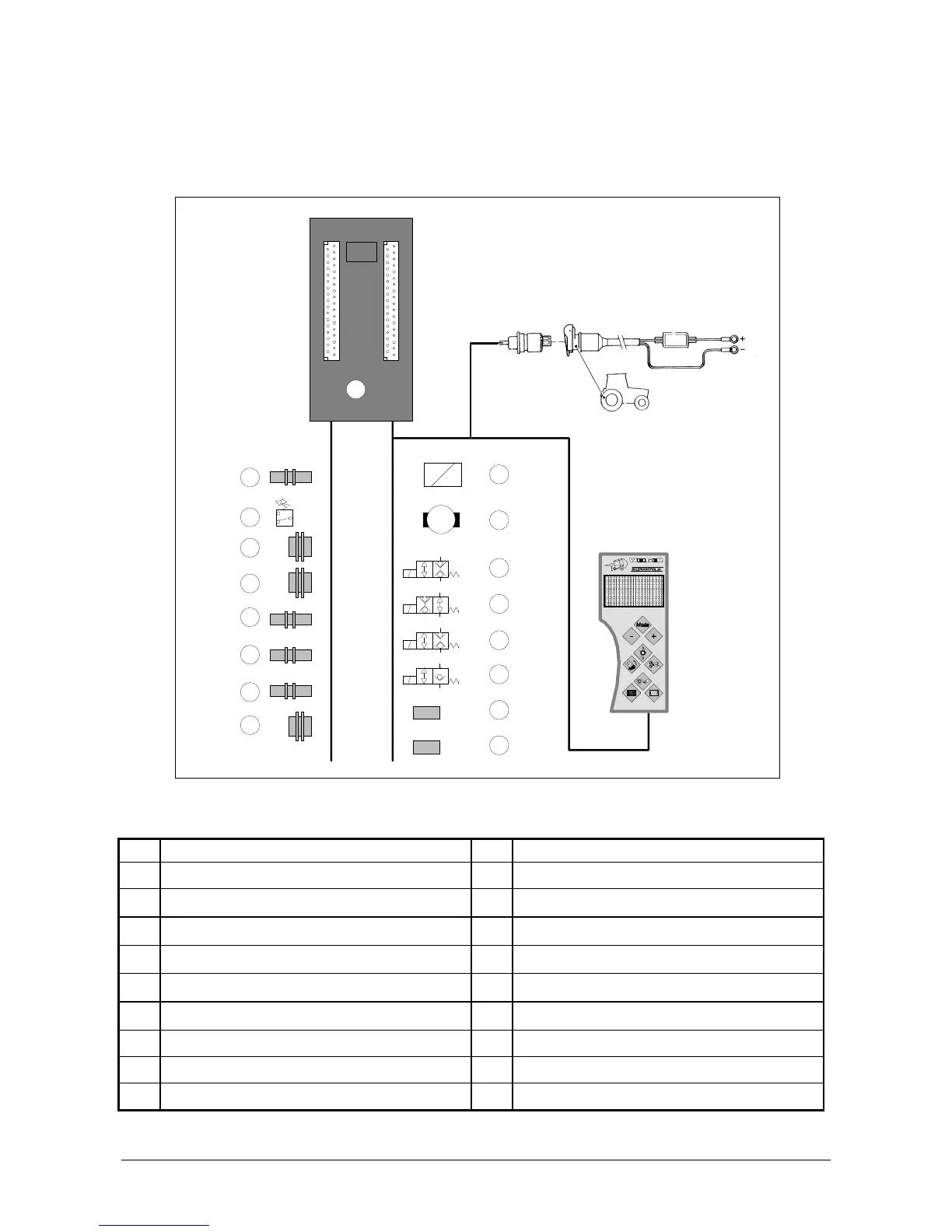

12.4. Balercontrol components
RP 220 • RP 320
MASTER / PROFI / SPEEDMASTER / SPEEDPROFI
No. No.
1 Control unit 10 Magnet, net wrapping* (N)
2
Sensor cutting device (S)
1)
11 Motor, twine wrapping* (G)
3
Pressure switch (D)
1)
, opener at 35 bar
12
Hydraulic switch
1)
A (0)
4 Sensor, right lock (R) Ø 30 mm 13
Hydraulic switch
1)
A1 (1)
5 Sensor, left lock (L) Ø 30 mm 14
Hydraulic switch
1)
A2 (2)
6 Sensor, bottom flap (G) 15
Hydraulic switch
1)
A4 (4)
7 Sensor, right twine run (1) 16 Left clearance sensor, yellow (L)
8 Sensor, left twine run (2) 17 Right clearance sensor, yellow (R)
9 Sensor, net cutting knife (N)
1)
Only for models with a cutting device
M
16 A
2
3
4
5
6
7
10
11
12
13
14
15
16
8
9
17
BALERCONTROL III
RP 220 320
MASTER / PROFI / SPEEDMASTER / SPEEDPROFI
1742-22
A
A1
A2
A4
DIN 9680
AB
1
fig.78
