9
Connection cables

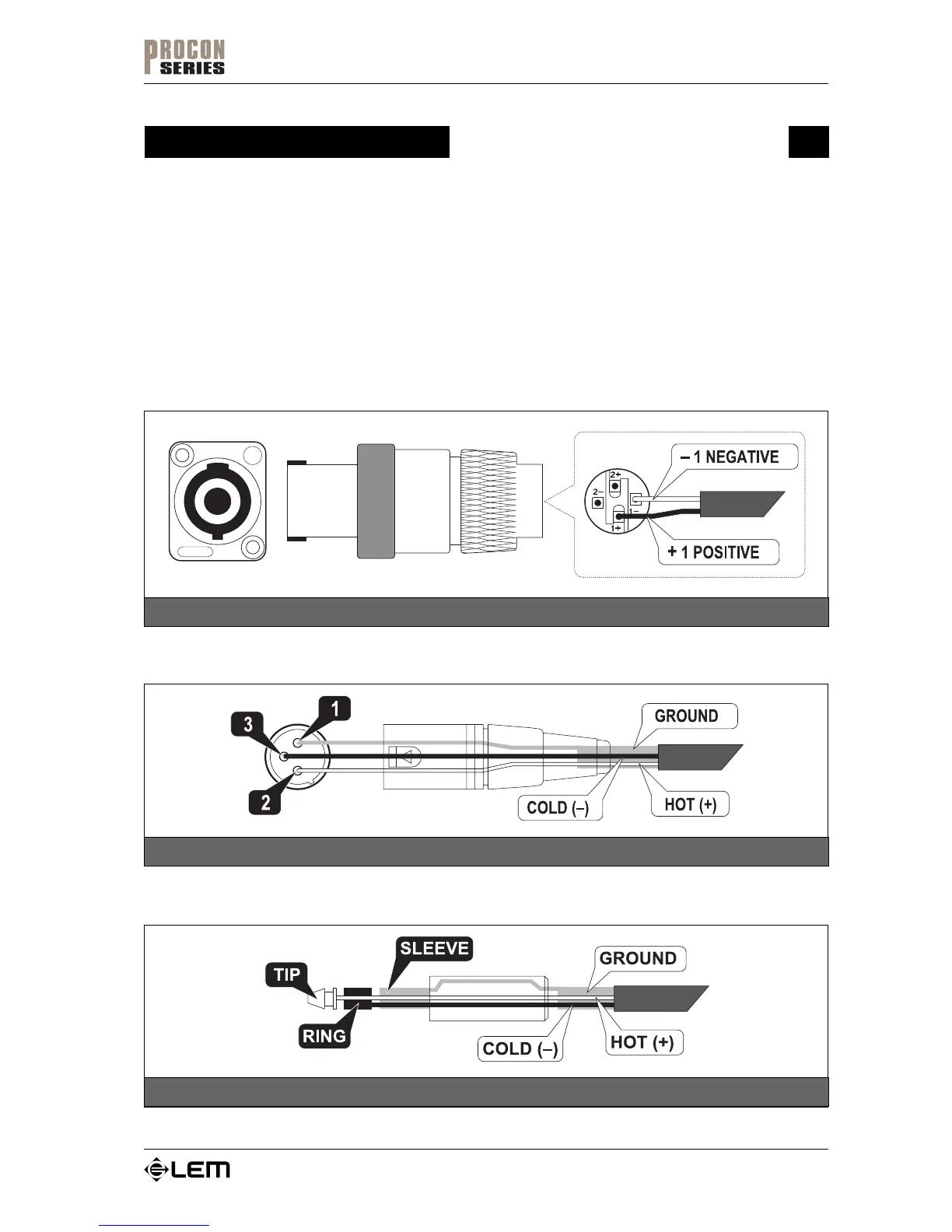

The following diagrams show the wiring of the connectors that can be used with the PROCON series amplifiers.
To connect the mixer outputs to the amplifiers inputs, make certain to always use balanced signal cables: the use of unbalanced
cables could in fact probably cause annoying hum and noise.
To connect the amplifier to the loudspeaker enclosures always use power cables (speaker cables made up of two wires, normally
with a large cross-section).
Take care of your connector cables, always gripping them by the plugs, avoid pulling them directly and winding them without
knots or bends: they’ll last longer and be more reliable, which is to your advantage. Check periodically that your cables are in
good condition, correctly wired and with perfectly efficient contacts: in fact many problems and drawbacks (false contacts,
ground hum, crackles, etc.) are caused by the use of unsuitable or damaged cables.
Connection cables
SPEAKON power connector
Balanced JACK signal connector
Balanced XLR-M signal connector
