6
INPUTS
Balanced XLR-F connectors (0 dB).
The inputs of the amplifier’s two channels. Can receive balanced or unbalanced high impedance line
signals from equipment with high level outputs.
NB: Whenever possible, use balanced cables. In any case, avoid using a balanced cable for one channel and an unbalanced
one for the other, as this would cause a considerable difference in channel levels.
LINK
Balanced JACK connectors (0 dB).
These connectors are connected in parallel with the respective XLR-F connectors. This enables a second
unit (e.g. another amplifier) to be daisy-chained to the first. It’s thus possible to power several amplifiers
using the same signal, forming more powerful sound reinforcement systems.
OUTPUTS
SPEAKON + BINDING POST connectors (minimum impedance 4
ΩΩ
ΩΩ
Ω). The SPEAKON connectors are
wired in this way:
- PIN 1+ connected in parallel to the “+” BINDING POST “+” (red color);
- PIN 1- connected in parallel to the “-” BINDING POST “+” (black color);
- PIN 2+ and 2- NOT connected.
NOTE: to avoid possible damage to the loudspeaker enclosures, only connect enclosures or speaker systems compatible
with the power load and impedance limits indicated for the amplifier (regarding this, consult the “Technical specifications”
chapter for reference to your specific amplifier model). Use only loudspeaker enclosure cables, never signal cables, i.e. those
normally used for microphones, instruments and audio equipment in general.
A.C. ~
Power cord.

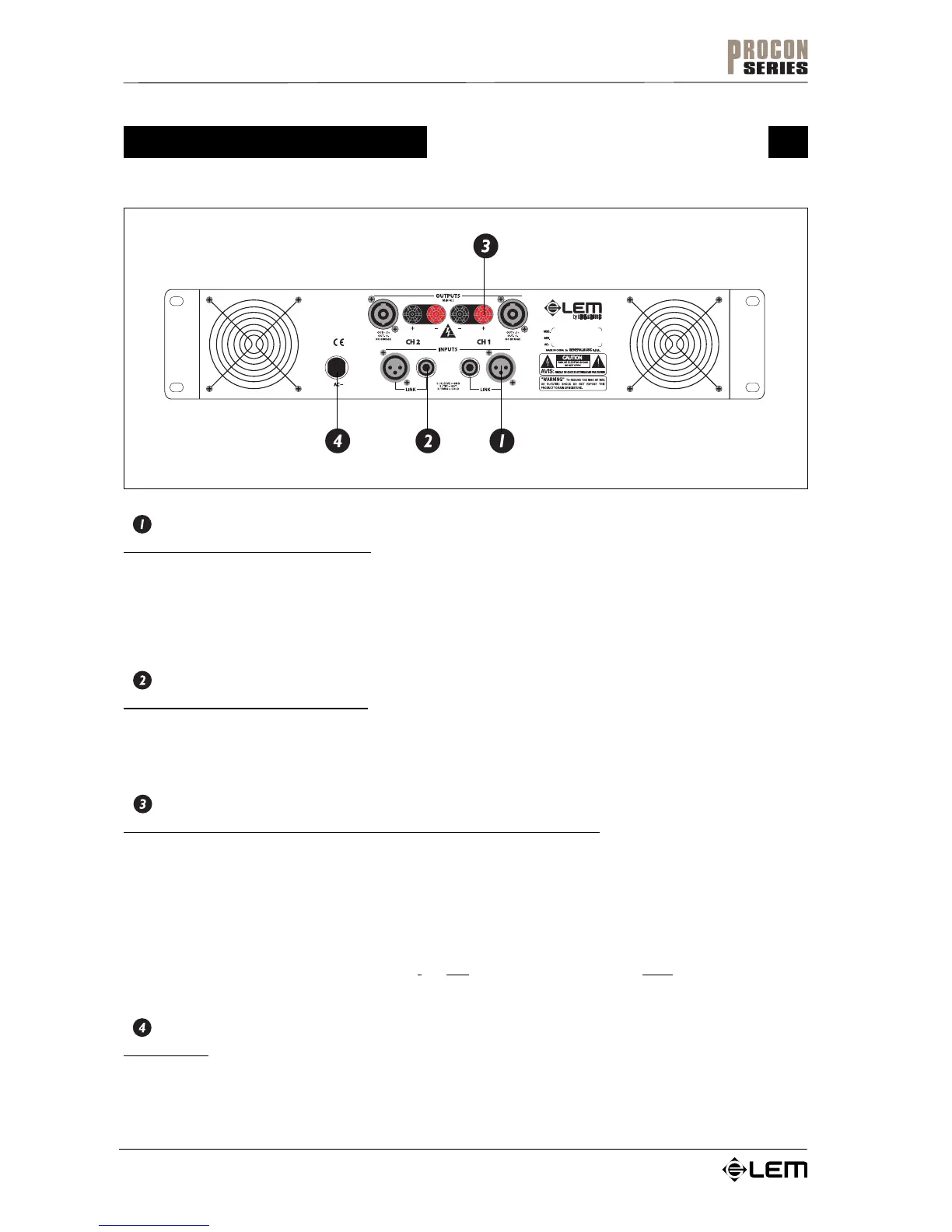

Connection panel
Connection panel
