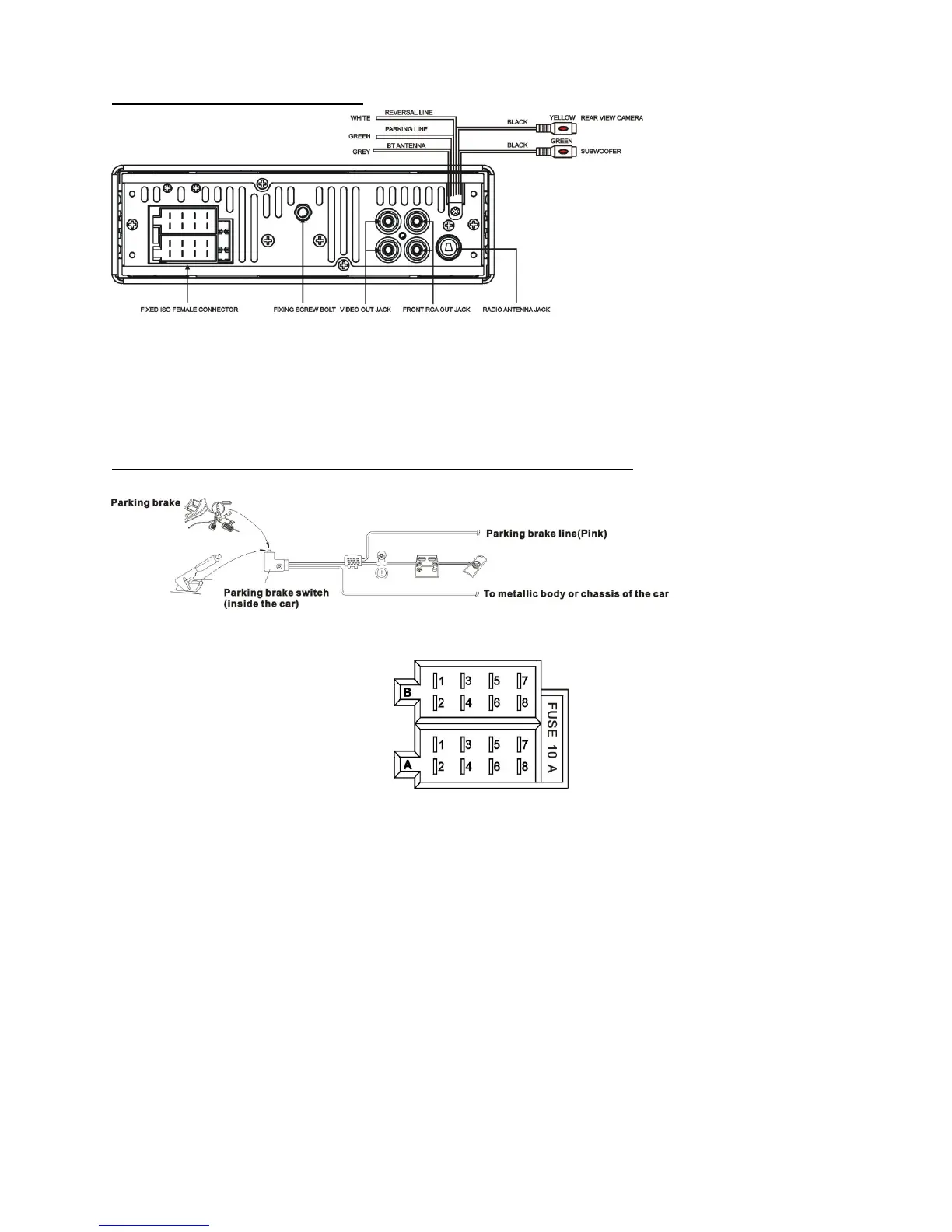

1.5 Description of the Rear Cabinet
Note: 1. after connecting the Parking Line, the video on the small monitor of the front panel will be display only after braking
the car.
2. Use the clip end of a Ground Line provided by manufacturer to connect the Fixing Screw Bolt, use another end of the
Ground Line to connect the negative pole of the power source. Otherwise, the video on screen maybe flashes.
Connecting the parking brake line to the parking brake system built in the car
The Description of the Fixed ISO Female Connector
CONNECTOR A
1.
2.
3.
4. Memory +12V
5. Auto Antenna
6.
7. 12V (To Ignition Key)
8. GROUND
CONNECTOR B
1. Rear Right Speaker (+)
2. Rear Right Speaker (-)
3. Front Right Speaker (+)
4. Front Right Speaker (-)
5. Front Left Speaker (+)
6. Front Left Speaker (-)
7. Rear Left Speaker (+)
8. Rear Left Speaker (-)
