Lennox 13ACX Installation Instructions

Page 2
506374−01 03/10

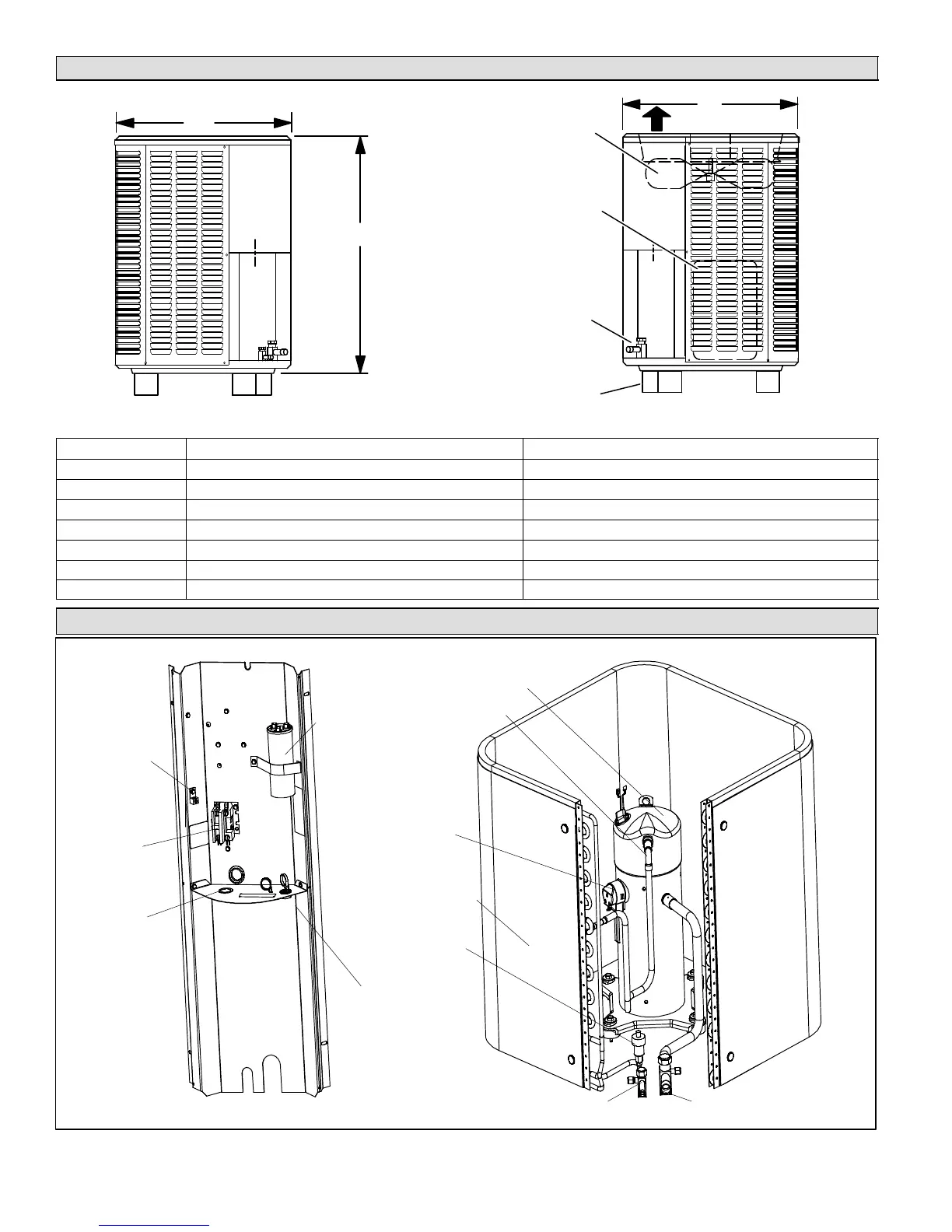

Unit Dimensions − Inches (mm)
SIDE VIEW
SUCTION AND LIQUID
LINE CONNECTION
DISCHARGE AIR
SIDE VIEW
OUTDOOR
COIL FAN
COMPRESSOR
A
B
A
OPTIONAL UNIT
STANDOFF KIT (4)
(FIELD INSTALLED)
Model Numbers A B
−018 24−1/4 (616) 25−1/4 (641)
−024 24−1/4 (616) 25−1/4 (641)
−030 24−1/4 (616) 29−1/4 (743)
−036 24−1/4 (616) 29−1/4 (743)
−042 28−1/4 (724) 29−1/4 (743)
−048 28−1/4 (724) 37−1/4 (925)
−060 28−1/4 (724) 33−1/4 (845)
Typical Unit Parts Arrangement
COMPRESSOR
HARNESS
LIQUID LINE SERVICE VALVE
SUCTION LINE SERVICE VALVE
OUTDOOR COIL
DISCHARGE LINE
HIGH PRESSURE
SWITCH (S4)
COMPRESS0R
GROUND LUG
CONTACTOR
CONTROL
CAPACITOR
CONTROL WIRE
LOOP
CUTOUT FOR HIGH
VOLTAGE CONDUIT
NOTE  PLUMBING LAYOUT AND COMPRESSOR TYPE MAY VARY SLIGHTLY BETWEEN
MODEL SIZES.
