Lennox BAM 038 SHM 3M

• 55 •
1
4
10
13
2
5
9
7
3
6
14
12
8
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
BALTIC-IOM-0412-E / Service manual
GAS BURNERS

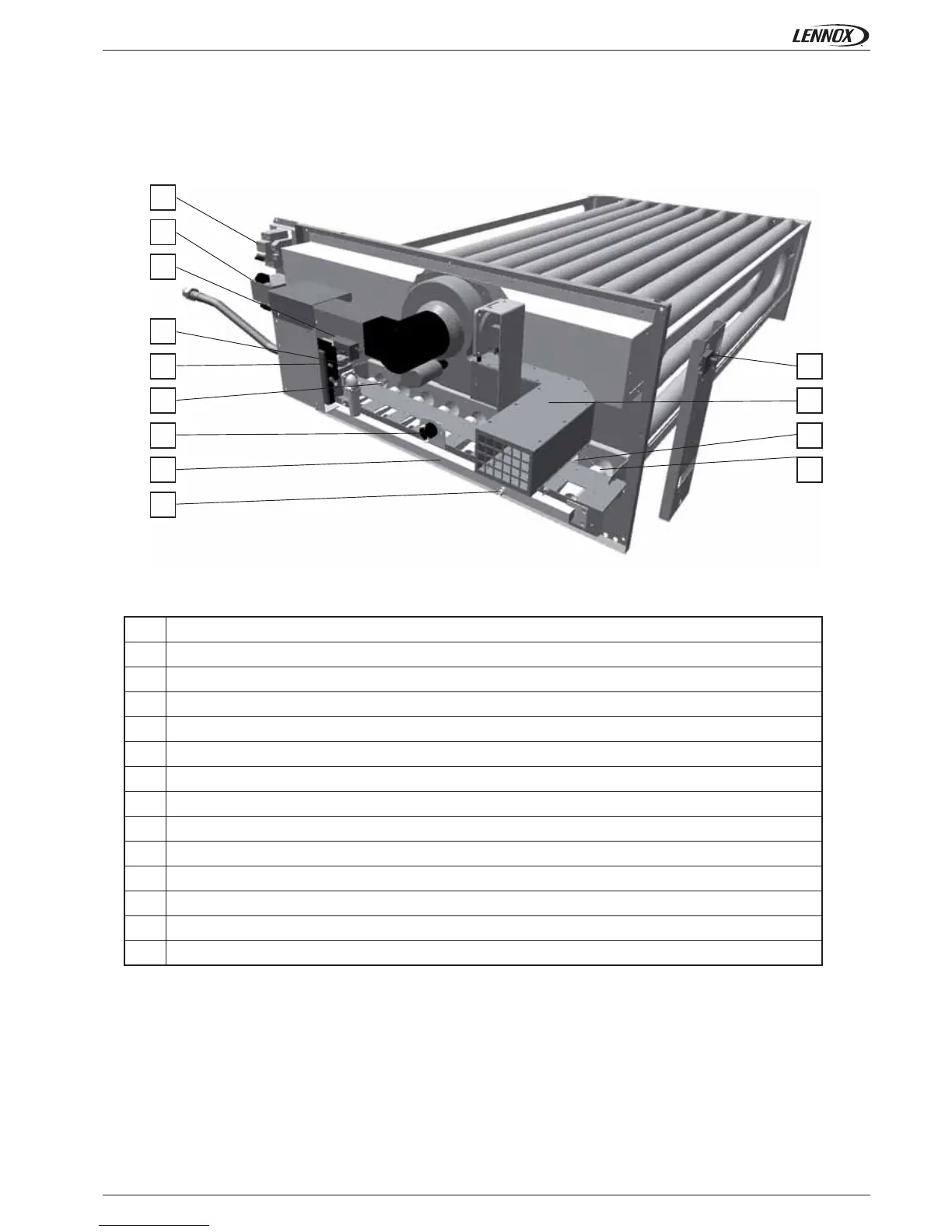

Gas module
Circuit breaker
Transformer 400/230V
Minimum gas pressure switch and inlet pressure plug
Gas valve and solenoid
Gas ignition control block and BG50 connection board
Ignition electrode
Ionisation probe
Gas inshot burner
Gas injectors support bar
Backfi re thermostat
Air pressure switch
Outlet pressure plug
Smoke exhaust chimney
Supply safety thermostat
