Lennox CB30M-65

Page 26

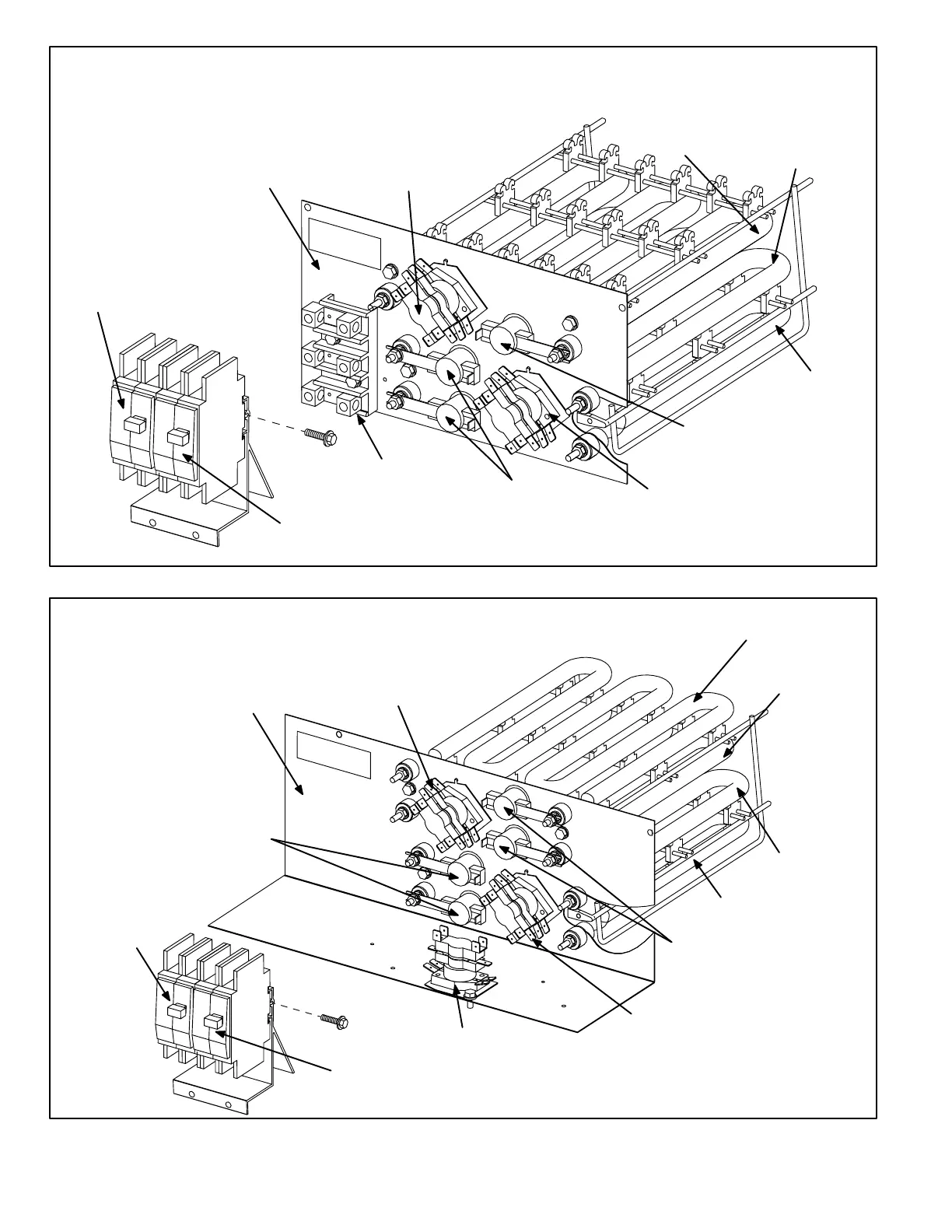

FIGURE 7
ECB29-8, -10 208/230 THREE PHASE
ECB29-12.5CB, -15CB 208/230 SINGLE & THREE PHASE
ELECTRIC HEAT VESTIBULE PARTS ARRANGEMENT
TERMINAL BLOCK
(TB2)
CIRCUIT BREAKER
(CB1)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE3)
ELECTRIC HEAT
VESTIBULE PANEL
ELECTRIC HEAT
SEQUENCER RELAY (K32)
ELECTRIC HEAT
ELEMENT (HE2)
ELECTRIC HEAT
SEQUENCER RELAY (K33)
CIRCUIT BREAKER
(CB2)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE1)
FIGURE 8
ECB29-20CB 208/230 SINGLE PHASE
ELECTRIC HEAT VESTIBULE PARTS ARRANGEMENT
CIRCUIT BREAKER
(CB1)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE4)
ELECTRIC HEAT
VESTIBULE PANEL
ELECTRIC HEAT
SEQUENCER RELAY (K32)
ELECTRIC HEAT
ELEMENT (HE3)
ELECTRIC HEAT
SEQUENCER RELAY (K33)
CIRCUIT BREAKER
(CB2)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE2)
ELECTRIC HEAT
ELEMENT (HE1)
ELECTRIC HEAT
SEQUENCER RELAY (K34)
