Lennox CBX32MV-036 - Regal-Beloit; Gemtech 3.0 - Troubleshooting; Regal-Beloit - Blower B3 Harness Connectors

Page 63
CBX32MV
MOTOR with INTEGRATED
CONTROLLER
J48 5 Pin Line Voltage Connector
J49 4 Pin Control Connector
J48 5 Pin
J49 4 Pin
P49 4 PIN
P48 5 PIN

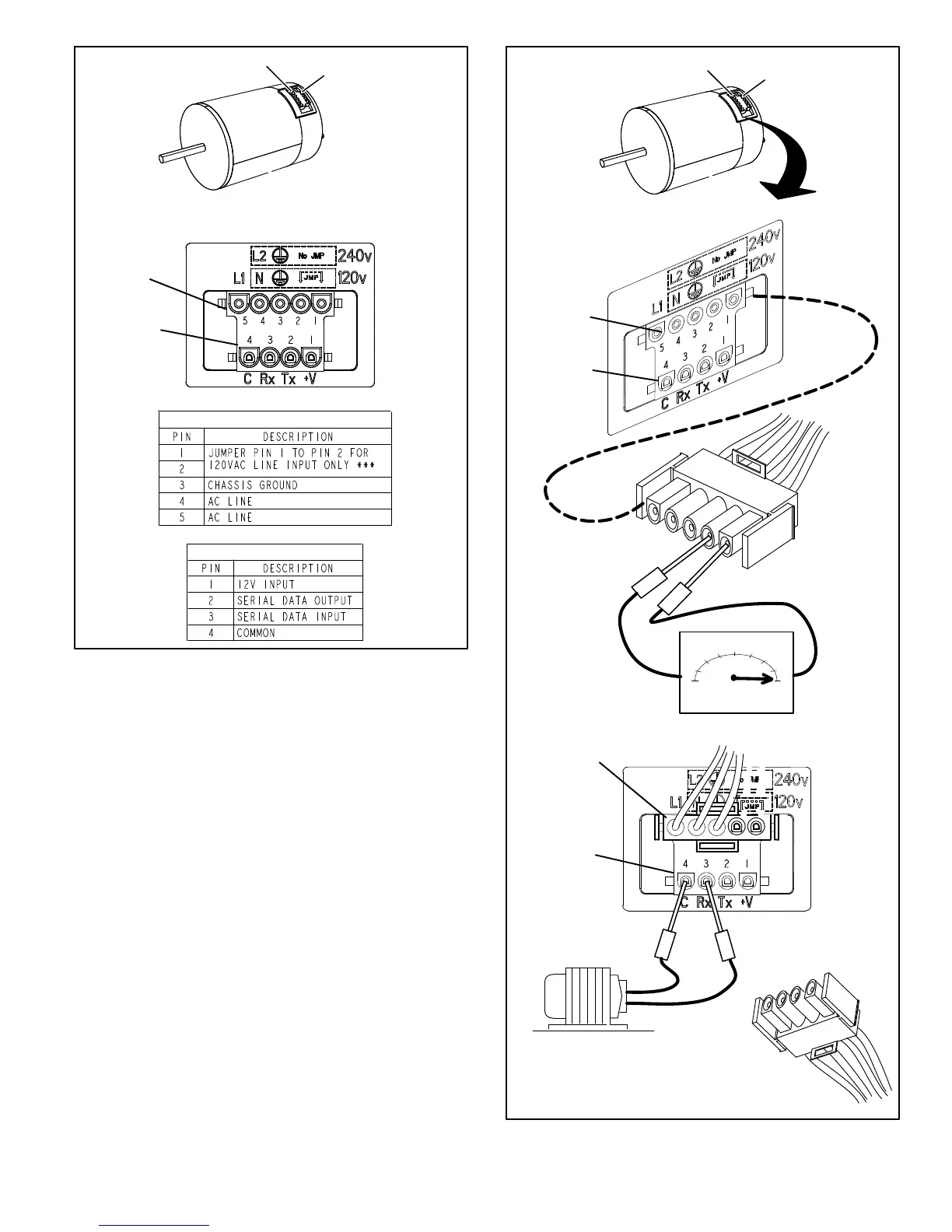

Figure 30. Regal-Beloit — Blower B3 Harness
Connectors
P48 5 Pin
P49 4 Pin
J48 Connector
installed on motor
P49 4 Pin
120v
0
230v
5
4
3
2
1
J48 Connector
24v Transformer
J49 Connector
P49 4 PIN
P48 5 PIN
Figure 31. Regal-Beloit / Gemtech 3.0 —
Troubleshooting
