Page 19

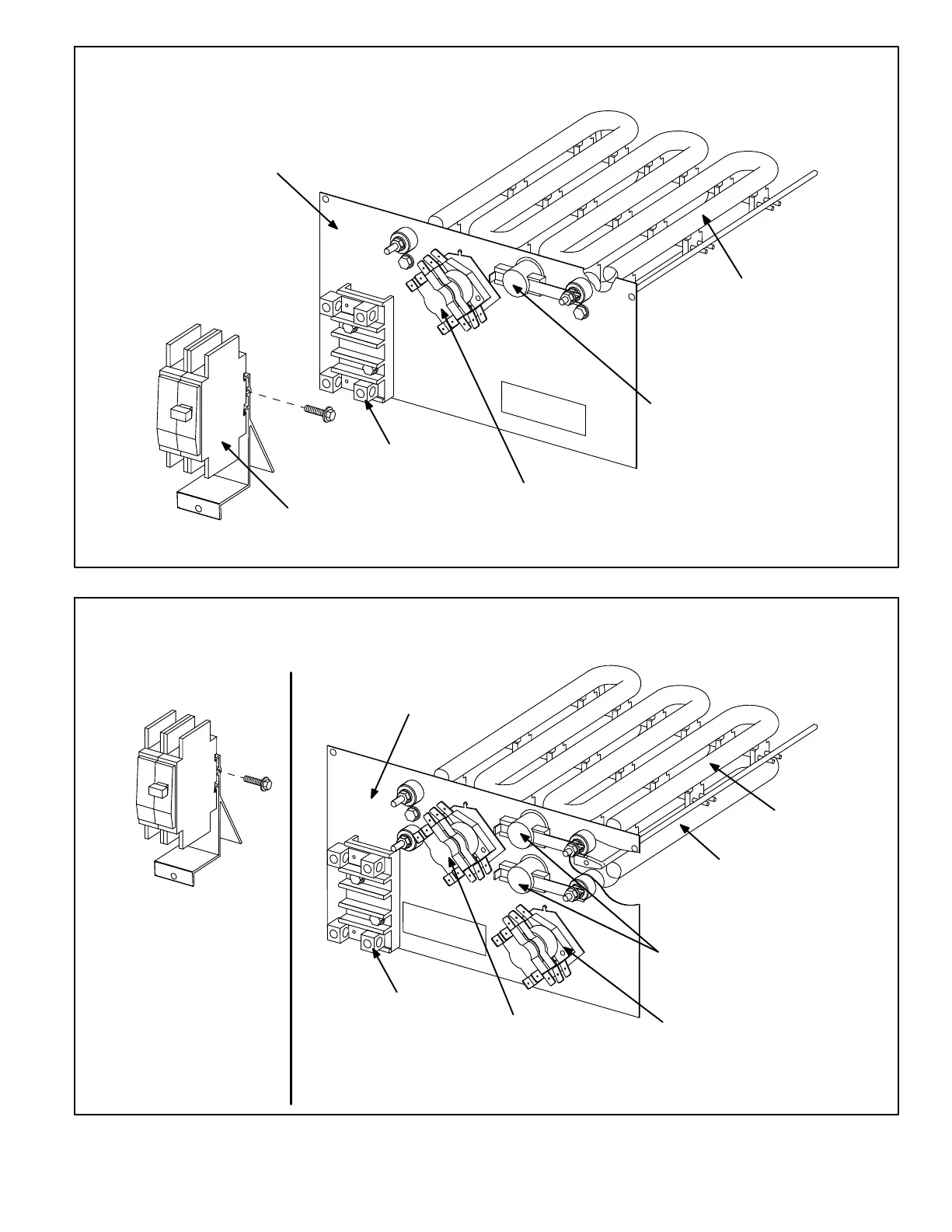

FIGURE 7
ECB29-5, -5CB 208/230 SINGLE−PHASE
ELECTRIC HEAT VESTIBULE PARTS ARRANGEMENT
TERMINAL BLOCK
(TB2)
CIRCUIT BREAKER
(CB1)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE1)
ELECTRIC HEAT
VESTIBULE PANEL
ELECTRIC HEAT
SEQUENCER RELAY (K32)
FIGURE 8
ECB29-8 AND -8CB 208/230 SINGLE−PHASE
ELECTRIC HEAT VESTIBULE PARTS ARRANGEMENT
TERMINAL BLOCK
(TB2)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE2)
ELECTRIC HEAT
VESTIBULE PANEL
ELECTRIC HEAT
SEQUENCER RELAY (K32)
ELECTRIC HEAT
ELEMENT (HE1)
ELECTRIC HEAT
SEQUENCER RELAY (K33)
ECB29−8 CIRCUIT
BREAKER (CB1)
