Page 2

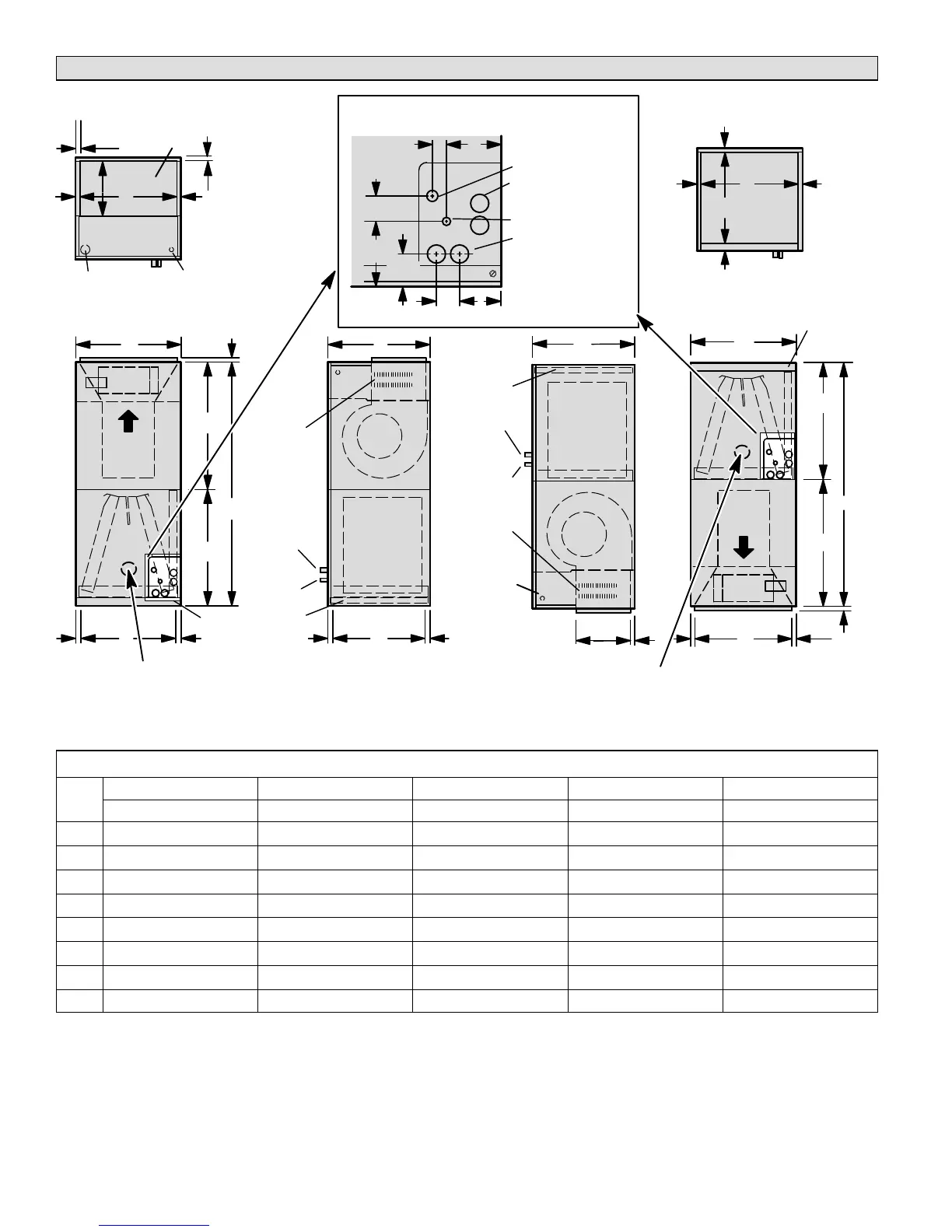

Upflow and Downflow Unit Dimensions Inches (millimeters)
OPTIONAL
ELECTRIC HEAT
(FIELD−INSTALLED)
AIR
FLOW
LIQUID
LINE
SUCTION
LINE
SUPPLY AIR
OPENING
RETURN AIR
FILTER
LOW VOLTAGE
INLETS (TOP AND
RIGHT SIDE)
RETURN AIR
TOP VIEW
FRONT VIEW
SIDE VIEW
BLOWER
PIPING PLATE DETAIL
(FOR UPFLOW AND DOWNFLOW POSITIONS)
A
BC
11-1/16 (281)
D
F
E
LIQUID LINE
SUCTION LINE
CONDENSATE DRAINS
(2) (HORIZONTAL)
COIL
3/4 (19)
3/4 (19)
5/8 (16)
5/8 (16) 1 (25)
5/8 (16)
1-3/4 (44)
2
(51)
1-1/8 (29)
4-3/8 (111)
2-3/4
(70)
5-3/8
(137)
3-1/2 (89)
OPTIONAL
ELECTRIC HEAT
(FIELD−INSTALLED)
AIR FLOW
LIQUID
LINE
SUCTION
LINE
RETURN
AIR
OPENING
SUPPLY
AIR
FILTER
SUPPLY AIR
TOP VIEW
FRONT VIEW
SIDE VIEW
BLOWER
A
B
C
11-1/16 (281)
F
D
E
COIL
5/8 (16)
5/8 (16)
5/8 (16)
5/8 (16)
5/8 (16)
LOW VOLTAGE
(RIGHT SIDE)
LINE VOLTAGE
(LEFT SIDE)
DOWNFLOW POSITION
1 (25)
UPFLOW POSITION
CONDENSATE DRAINS
(2) (UPFLOW AND
DOWNFLOW)
FILTER ACCESS
FILTER ACCESS
H
G
H
G
LINE VOLTAGE
INLETS (TOP
AND LEFT SIDE)
5/8 (16)
5/8 (16)
KNOCKOUT FOR OPTIONAL HEALTHY
CLIMATE
®
GERMICIDAL UVC LIGHT.
KNOCKOUT FOR OPTIONAL HEALTHY
CLIMATE
®
GERMICIDAL UVC LIGHT.
Model Dimensions (Upflow, Downflow, Left− and Right−Hand Horizontal applications)
Dim.
−018/024 −024/030 −036 −048 and −060 −068
in. (mm) in. (mm) in. (mm) in. (mm) in. (mm)
A
45−1/4 (1149) 49−1/4 (1251) 51 (1295) 58-1/2 (1486) 65 (1651)
B
16−1/4 (413) 21−1/4 (540) 21-1/4 (540) 21-1/4 (540) 21−1/4 (540)
C
20−5/8 (524) 20−5/8 (524) 22-5/8 (575) 24-5/8 (625) 26−5/8 (676)
D
14−3/4 (375) 19−3/4 (502) 19-3/4 (502) 19-3/4 (502) 19−3/4 (502)
E
19 (483) 19 (483) 21 (533) 23 (584) 25 (635)
F
15 (381) 20 (508) 20 (508) 20 (508) 20 (508)
G
24−5/8 (625) 24−5/8 (625) 26-3/8 (670) 27-7/8 (708) 32−3/8 (822)
H
20−5/8 (524) 24−5/8 (625) 24-5/8 (625) 30-5/8 (778) 32−5/8 (829)
