Lennox CHP20-060

Page 17

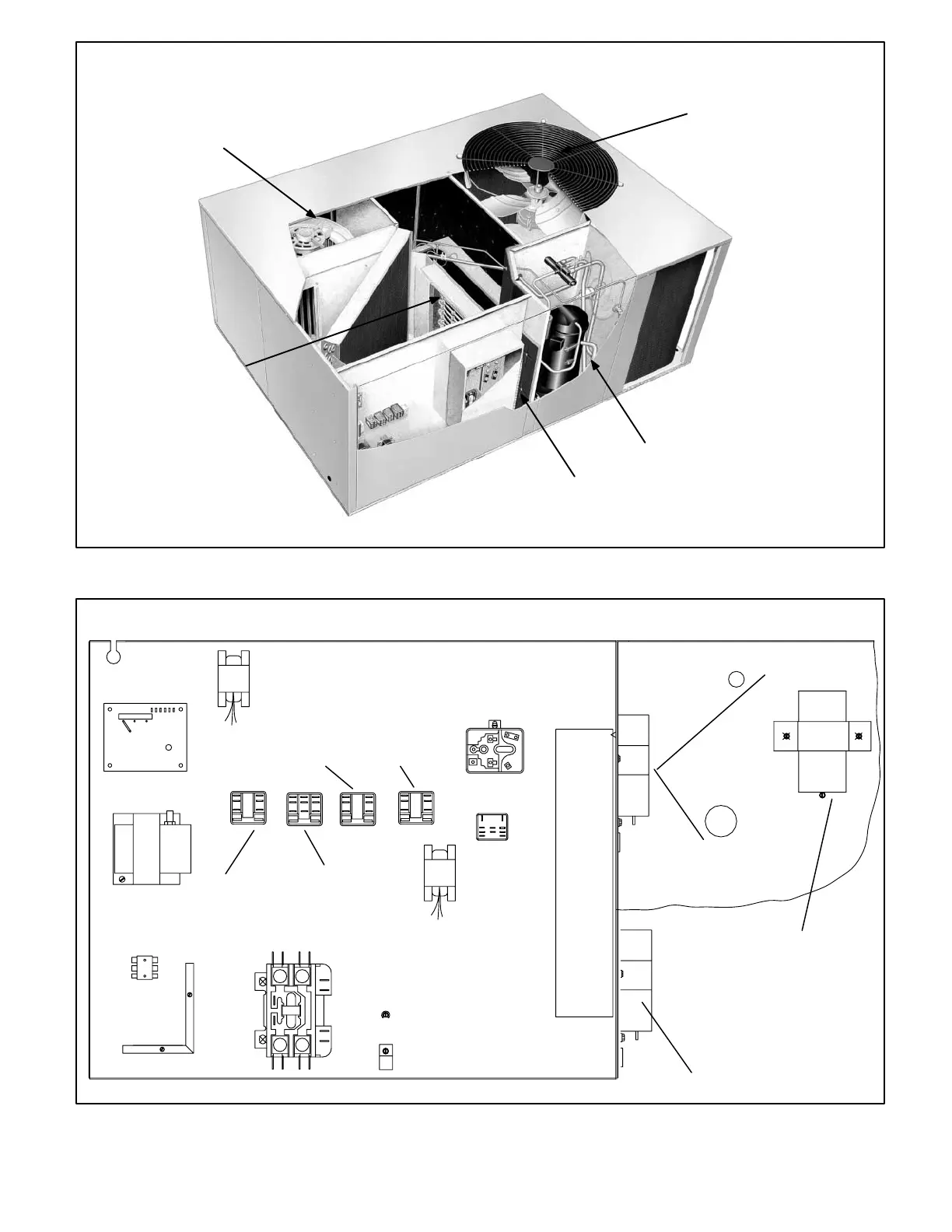

FIGURE 1
CHA/CHP16, CHP20 PARTS ARRANGEMENT
(shown with scroll compressor)
CONDENSER FAN
BLOWER ASSEMBLY
COMPRESSOR
CONTROL BOX
ELECTRICHEAT
ELEMENT
FIGURE 2
CHA/CHP16, CHP20 CONTROL BOX
CMCI DEFROST
CONTROL
TRANSFORMER
T1
TERMINAL STRIP
TB32
COMPRESSOR
CONTACTOR K1
HARD START RELAY K31
CHA/CHP16-024/030
TRANSFORMER T4
(042, 048, 060)
LATCH RELAY
K6
CAPACITOR C1
CHP20-036, -060 G,J,M VOLTS
CHA/CHP16-036 G, J, M VOLTS
CAPACITOR C12
ALL P VOLT UNITS
CAPACITOR C1
CHP16/20-048-G. J, M, VOLTS
CHP16-060-G, J, M, VOLTS
INBLOOR BLOWER
CONTACTOR K3
DEFROST
RELAY
K4
OUTDOOR
FAN RELAY
K10
TRANSFER
REALY
K8
ALL Y VOLTAGE UNITS
CAPACITOR C7
CHA/CHP16-024/030
TRANSFORMER T4
(024, 030, 036)
