Lennox CLIMATIC 200 User Manual

12

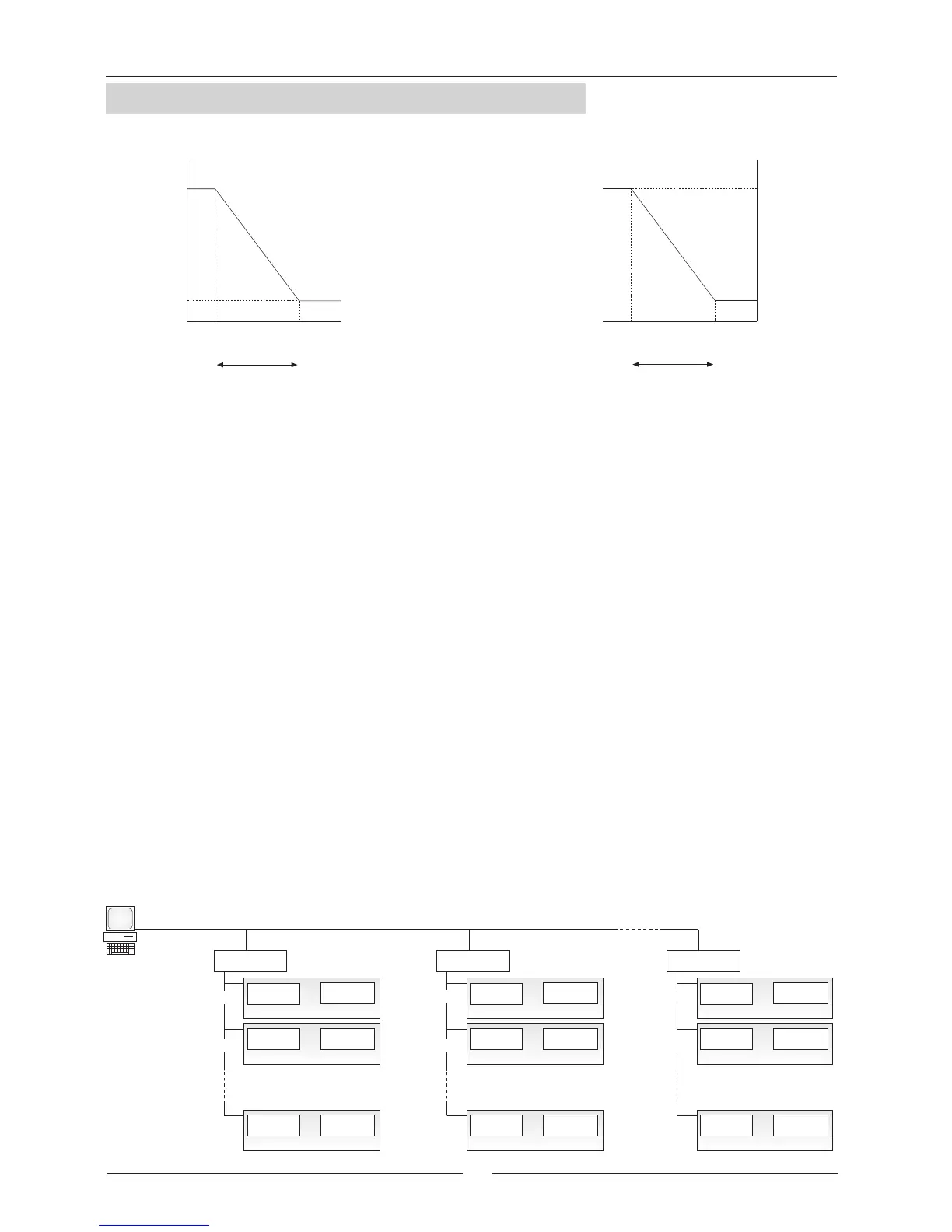

OPTIONS
outdoor temp. ºC
DYNAMIC SET POINT
9ºC
25ºC 35ºC
12ºC
Set point ºC
-10ºC
differential
cooling
set point
starting
Dynamic
set point
outdoor temp. ºC
38ºC
6ºC 12ºC
42ºC
Set point ºC
6ºC
differential
heating
set point
starting
Dynamic
set point
BA: Bus Adapter
EB: Electrical Box
KP06 no.1 KP06 no.2 KP06 no.15Gateways
EB
BA
EcoLean 8
EB
BA
EcoLean 2
EB
BA
EcoLean 1
EB
BA
EcoLean 16
EB
BA
EcoLean 10
EB
BA
EcoLean 9
EB
BA
EcoLean 120
EB
BA
EcoLean 114
EB
BA
EcoLean 113
Adress 10H
Adress 11H
Adress 18H
Adress 20H
Adress 21H
Adress 20H
Adress F0H
Adress F1H
Adress F8H
BMS CONNECTION
It is possible to connect the unit to a BMS system with a MODBUS protocol.
A communication adaptor is installed in the unit. With a GATEWAY, 8 units can be connected. It is possible to
achieve a net with 15 GATEWAYS. This net communicates with a BMS system through MODBUS protocol.
The interface can:
- Select between OFF/STAND-BY/COOL/HEAT.
- Modify the cooling and heating set point.
- Read the alarm status.
- Read all the functioning temperatures.
- Read the status of inputs (pressure switches, fluid switch, thermal protection...).
- Read the status of outputs (compressor, fan, pump...).
- Read the maximum and minimum set point available in cooling and heating mode.
Parameters:
- Units with Climatic
®
200:
H26 Serial output configuration 1= ModBus.
H44 Family serial address= 0.
H45 Device serial address= 1..8 (different for each one connected to the GATEWAY).
- Units with Climatic
®
400:
H48 Serial output configuration 1= ModBus.
H65 Family serial address= 0.
H66 Device serial address= 1..8 (different for each one connected to the GATEWAY).
COOLING MODE
When the outdoor temperature exceeds 35ºC, the unit set
point is the set value. The Dynamic set point function starts
when the temperature is below 35ºC. The set point value
increases below 35ºC, so for 25ºC (10ºC differential) the
set point is 3ºC more than the set value.
HEATING MODE (only for heat pump units)
When the outdoor temperature is 6ºC the unit set point is
the set value. The Dynamic set point function starts when
the temperature exceeds 6ºC. The set point value
decreases above 6ºC, so for 12ºC (6ºC differential) the
set point is 4ºC less than the fixed value.
