12
ECOLEAN
AIRCOOLAIR
MODBUS
8:00-18:00 11ºC 11ºC 11ºC 11ºC 11ºC 11ºC 11ºC
18:00-8:00
(t06:t07-t08-t09)
16ºC 16ºC 16ºC 16ºC 16ºC 16ºC 16ºC
ADVANCED FUNCTIONS

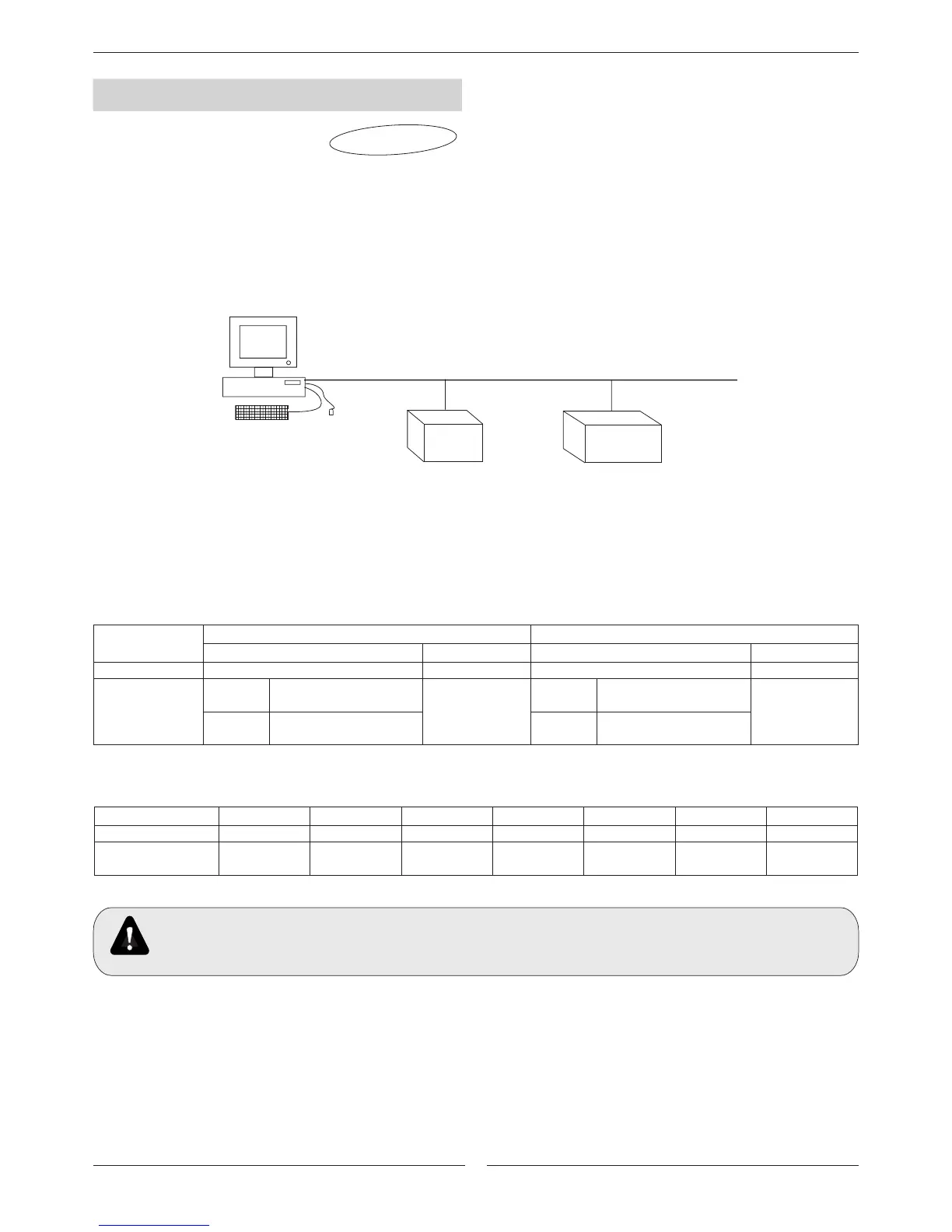

4.- BMS COMMUNICATIONS
Given the growing and unstoppable trend towards Building Automation, driven by powerful and ever-evolving connectivity, the
Climatic 40 controller offers the possibility of communicating with Building Management Systems (BMS) via Modbus protocol.
The Modbus standard interface is integrated into the control, so you don’t need any sort of gateway, router, etc.
In order for you to connect to the RS485 serial line, we provide the TTL-RS485 converter as an option for Ecolean and Aircube
units.
Aircoolair units don’t need the converter (it’s integrated) but they do need the ambient or duct remote sensor option.
5.- TIME BANDS PROGRAM (Ecolean)
The Climatic 40 controller allows 2 time bands to be programmed for each day, each with a different set point.
The setting parameters are explained in the following table:**
For further information, please see BMS communication manual.
EXAMPLE (Cooling):
WARNING
Set internal clock before programming time bands (t01=hour, t02=minutes, t03=day, t04=month, t05=year).
To deactivate time bands programme, set start time = end time.
OPTION
COOLING HEATING
TIME SET POINT TIME SET POINT
1
st
TIME BAND
Rest of the day r1 Rest of the day r3
2
nd
TIME BAND
Start
(hour:minutes)
t06:t07
r21
Start
(hour:minutes)
t10:t11
r22
End
(hour:minutes)
t08:t09
End
(hour:minutes)
t12:t13
HOUR Monday Tuesday Wednesday Thursday Friday Saturday Sunday
