Lennox CLIMATIC series User Manual

• 29 •CLIMATIC RT_UNITARY-IOM-1508-E
COMPONENTS

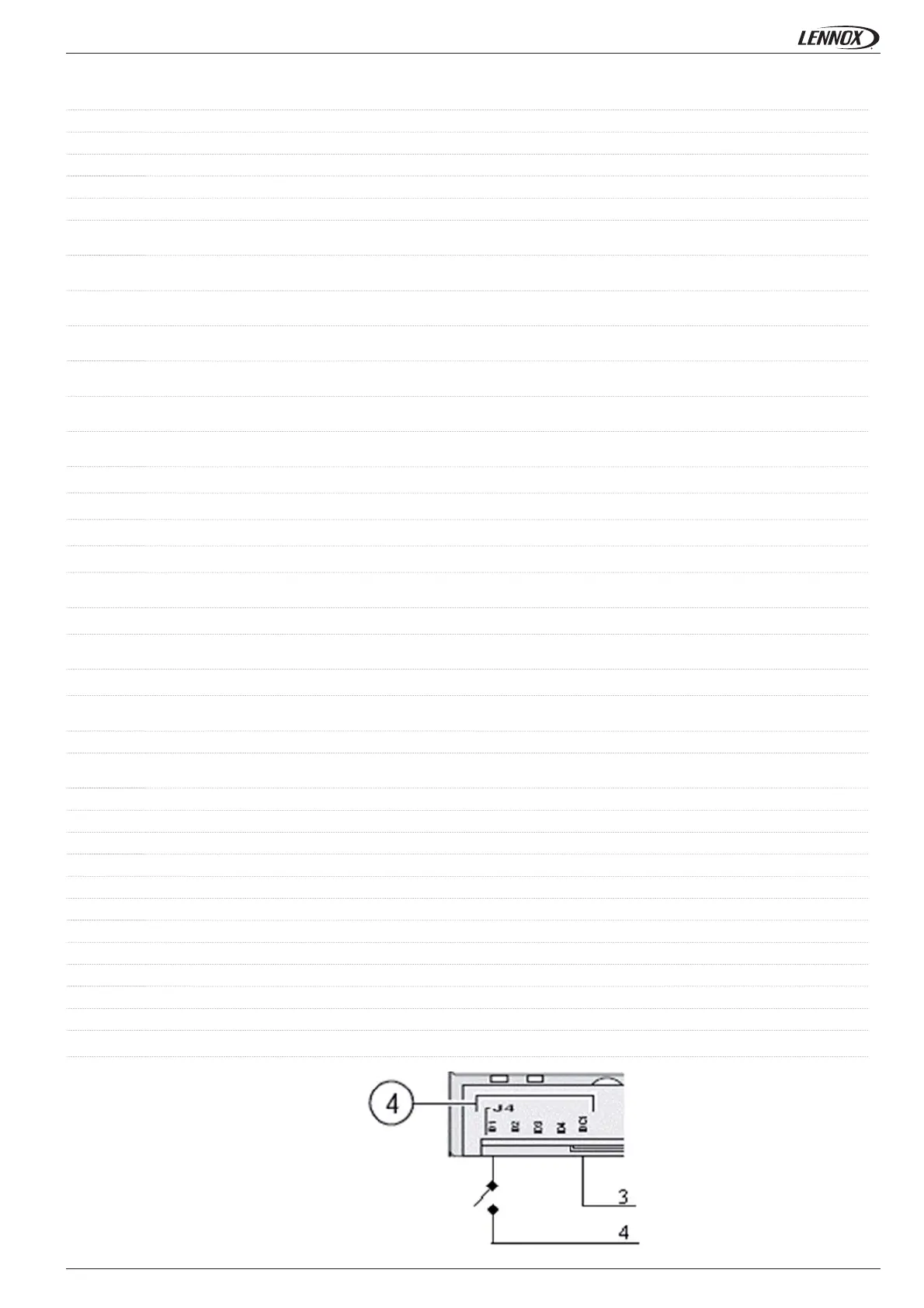

Dry contact
On/Off Status of the request for unit (ON/OFF)
Reset Al reset, alarm
Summer control, unloaded heating mode
Winter control, unloaded cooling mode
Low Fan blower, force reduced fl ow (low speed)
High Fan blower force nominal fl ow (high speed)
No F.A fresh air, force the damper to close (0%)
10% F.A fresh air, force the damper to minimum opening (10%)
20% F.A fresh air, force the damper to minimum opening (20%)
30% F.A fresh air, force the damper to minimum opening (30%)
40% F.A fresh air, force the damper to minimum opening (40%)
50% F.A fresh air, force the damper to minimum opening (50%)
All F.A fresh air, force the damper to full opening (100%)
No FreeC fresh air, unloaded Free-Cooling mode
No FreeH fresh air, unloaded free-heating mode
No Air.Q air quality, unloaded control
Defrost circuit, defrosting cycle delayed (compressor)
50% Cp. circuit, unloaded immediately 50% of compressors running
No Comp. circuit unloaded all compressor
No HPump circuit, unloaded all compressor in heat-pump mode
No Cp&Ht circuit and heaters, unloaded all
50% Ht. heaters, unloaded immediately 50% of heaters running
No Heat. heaters, unloaded all heaters
Prio.Ht. control, force the priority of the heaters vs compressors
TCB G TCB, G
TCB B TCB, B
TCB Y1 TCB, W1
TCB Y2 TCB, W2
TCB W1 TCB, Y1
TCB W2 TCB, Y2
for BMS BMS, input reading for BMS
M. DayII schedule, force the DayII mode
M. DayI schedule, force the DayI mode
M. Day schedule, force the Day mode
M. Night schedule, force the Night mode
M. BMS schedule, force the BMS mode
