Lennox Country Winslow PI40 User Manual

33
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

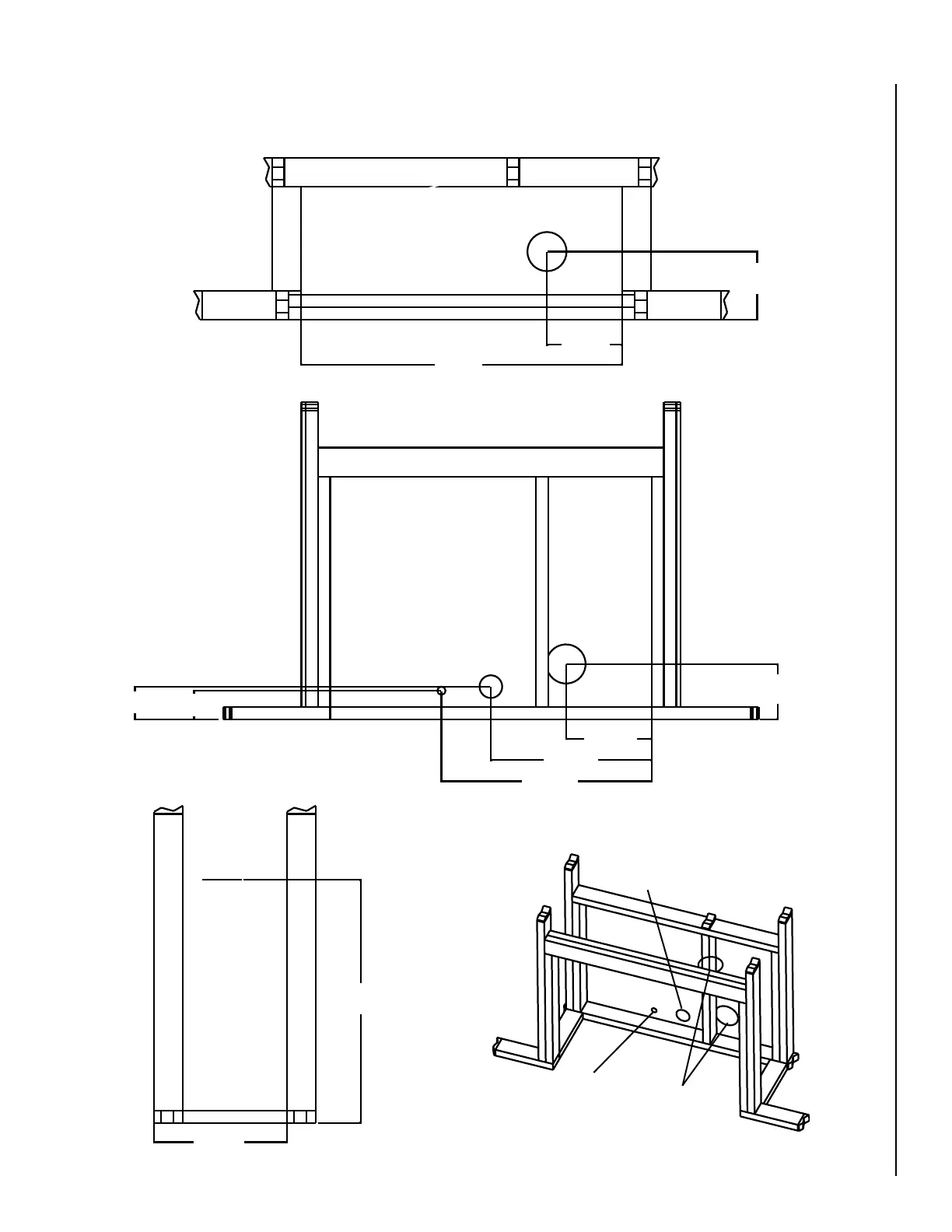

ZC Framing Dimensions for Combustible /Floor
10-3/8”
19-1/2”
25-1/2”
29-1/2”
16-1/8”
6-3/4”
4”
3-1/2”
8-1/4”
9-1/8”
39”
Exhaust
Intake
A/C
Power Cord
Front View
10-3/8”
19-1/2”
25-1/2”
29-1/2”
16-1/8”
6-3/4”
4”
3-1/2”
8-1/4”
9-1/8”
39”
Side View
10-3/8”
19-1/2”
25-1/2”
29-1/2”
16-1/8”
6-3/4”
4”
3-1/2”
8-1/4”
9-1/8”
39”
Exhaust
Top View
Front
10-3/8”
19-1/2”
25-1/2”
29-1/2”
16-1/8”
6-3/4”
4”
3-1/2”
8-1/4”
9-1/8”
39”
Outside Air Intake
Exhaust
A/C Power
8-1/4”
(210mm)
9-1/8”
(232mm)
39”
(991mm)
6-3/4”
(172mm)
29-1/2”
(749mm)
19-1/2”
(495mm)
25-1/2”
(648mm)
10-3/8”
(264mm)
16-1/8”
(410mm)
4”(102mm)
3-1/2”(89mm)
Figure 63

Lennox Country Winslow PI40 Specifications

General

Brand	Lennox
Model	Country Winslow PI40
Category	Indoor Fireplace
Language	English
